Products Description

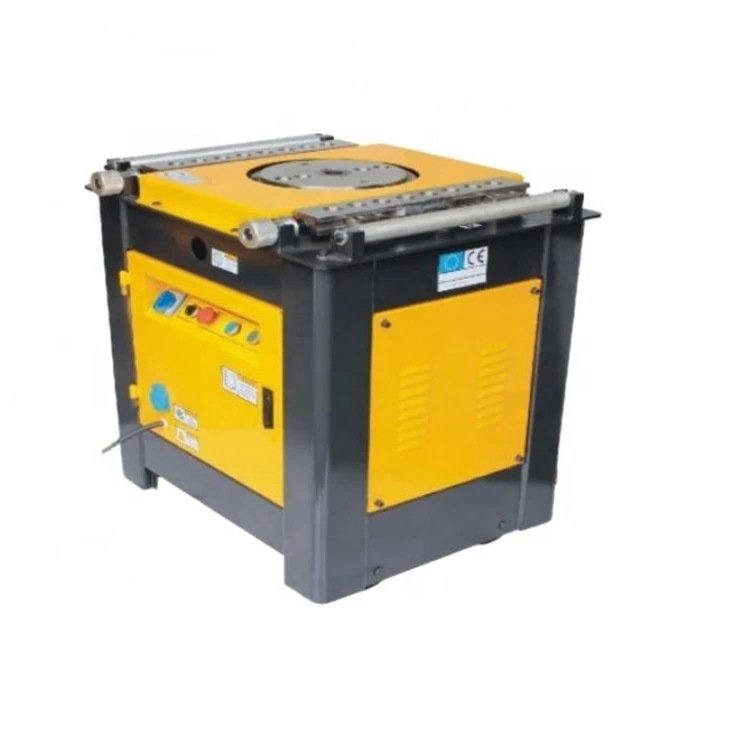

GW35D handles rebars of different tensile strengths with separate bending size ranges. Sealed gear housings and heat treated alloy parts endure nonstop heavy bending work. This Heavy Duty Steel Bender fits small and medium rebar processing yards.
Technical Specifications
| STEEL BAR BENDER GW35D AUTOMATIC / MANUAL | |||||||||||
| MODEL GW35D | BENDING CAPACITY | 6-35 mm (ob ≤450N/mm2) | 6-28 mm (ob ≤650N/mm2) | ||||||||
| OPERATION | Automatic | ||||||||||
| TYPE OF MOTOR | YEJ 100L1 -4 | ||||||||||
| MOTOR POWER | 2.2 KW-4P | ||||||||||
| HORSE POWER | 4 HP | ||||||||||
| MOTOR ROTATION SPEED | 1430 R/min | ||||||||||
| SPEED OF WORKING DISK | 12 R/min | ||||||||||
| NOISE VALUE (1m away) | ≤75dB(A) | ||||||||||
| WEIGHT | 293 Kg. | ||||||||||
| DIMENSIONS (L*W*H) | 750*620*850 mm | ||||||||||
| UNIT PRICE USD | 1800 | ||||||||||
| CERTIFICATION | 2006/42/EC - 2006/95/EC / ISO 9001:2008 | ||||||||||
Advantages
-
Closed gear housings stop oil seepage and structural distortion. Heat treated alloy core parts slow abrasion during daily batch forming.
-

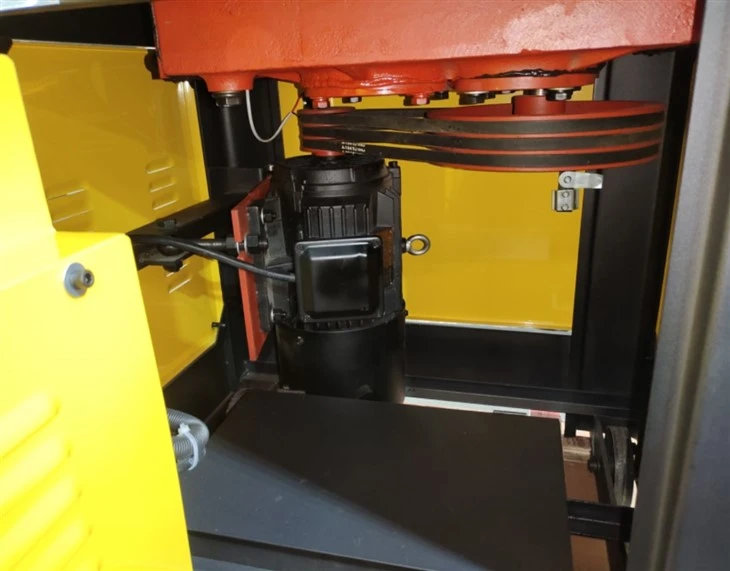

Dust resistant three-phase motors match dual limit stops, keeping bending angle deviation below 1 degree. Clients can pick custom voltage and frequency specs; all motor variants carry a 1-year warranty.
-
Workers finish bending one 35mm rebar in under 10 seconds, with daily output above 500 pieces. The unit runs 8 to 10 years, and wear components only need swapping every half year to 8 months.
-
Attached rolling wheels make moving the machine between job sites easy. Operators replace standard wear parts within 5 minutes without specialized tools, and the machine passes CE and ISO industry certifications.
Quality Assurance
| Item | Status |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Certification | CE Approved |
| After-sales Service | Online support included |
| Warranty | 1 Year full machine coverage |
Packaging and Delivery
| Detail | Information |
| Packaging Type | Export-safe steel frame or wooden crate |
| Package Dimensions | Matches machine size (750 × 620 × 850 mm) |
| Gross Weight | 345 kg |
| Delivery Time | 5–10 working days |
| Shipping Terms | FOB / CIF / CFR available upon request |
Application Areas
Building contractors, on-site reinforcement crews and machinery suppliers pick this Heavy Duty Steel Bender to shape steel bars for infrastructure projects.
FAQ
Q: What is the export packaging standard for sea freight?
A: All equipment adopts professional export packaging: waterproof and rust-proof film wrapping, steel belt reinforcement and solid wooden frame fixing to prevent collision, moisture and rust during long-distance sea transportation. After loading, we provide loading photos, videos and container tracking documents for full traceability.
Q: Can you provide full customs clearance documents?
A: We provide complete official clearance documents including commercial invoice, packing list, certificate of origin and inspection reports to ensure smooth customs clearance at the destination port and reduce customs risks.
Q: Can the electrical system adapt to overseas power grids?
A: Our equipment supports global power grid adaptation. We can customize voltage, frequency and PLC brand to match local power conditions. It is fully compatible with mainstream overseas power standards such as 400V/50Hz three-phase power in Australia and New Zealand, ensuring stable overseas operation.
