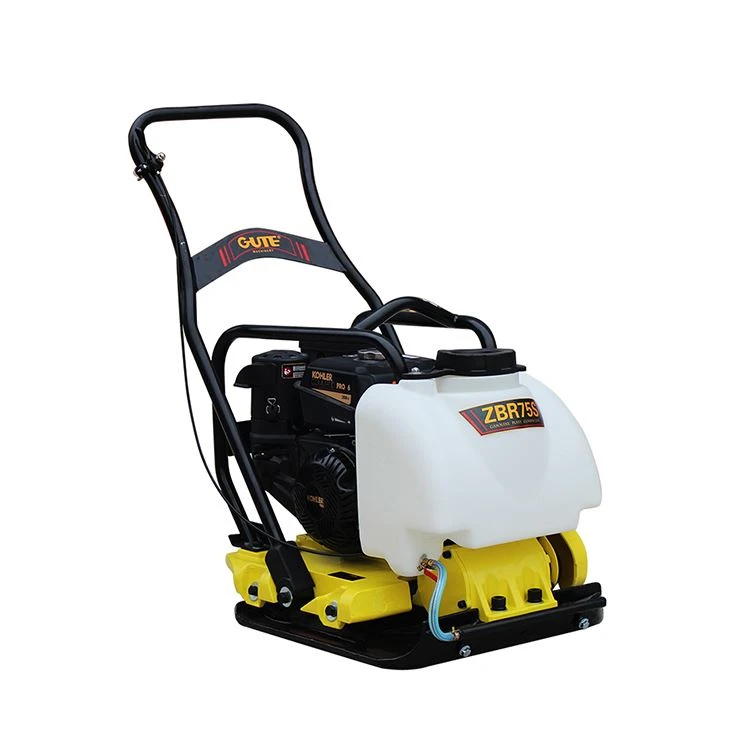

Gasoline Vibratory Plate Compactor ZBR75S
It is a heavy-duty, fast-operating Vibrating Plate Compactor, ideal for compacting thin to medium layers of granular soils. The unique plate shape and optimized speed deliver quick, effortless compaction with high output rates. The exclusive patented low-vibration handle shields operators from harmful vibration exposure; its compact structure with foldable handles makes transportation and storage convenient.
Plate compactor components
1. Ductile iron base plate
2. Open base plate
3. Curved base plate
4. Central lifting rod
5. Sealed belt cover
6. Heavy-duty shock absorber bracket
7. Transport wheels
8. Water tank for asphalt pavement
9. Optional polyurethane paving mat
Advantages
1. Suitable for sand, gravel, backfill, and thin asphalt layers, compacting thin/medium-layer foundations in one pass;
2. Special curved base plate design ensures uniform impact force, eliminating missed areas and voids, resulting in a high construction compliance rate and reducing rework in one pass.
3. Fast travel speed and large compaction area per shift, increasing production capacity by over 50% compared to frog rammers and small impact rammers, suitable for large-area road, courtyard, and trench backfilling.
4. Double-layer vibration-damping rubber columns isolate vibration, significantly reducing the vibration force transmitted to the operator's arm;
Main Technical Parameters
| GASOLINE PLATE COMPACTOR ZBR75S | |
| WEIGHT | 75KG |
| EXCITING FORCE | 13KN |
| DIMENSION | 700*400*910MM |
| DIMENSION OF TAMPING PLATE | 560*400MM |
| VINRATION FREQUENCY | 43RPM |
| OPERATION SPEED | 14-18M/MIN |
| ENGINE MODEL | HONDA GX160/KOHLER CH260 |
| HORSE POWER | 6HP |
| WATER TANK VOLUME | 7.5L |
| CERTIFICATION | 2006/42/EC - 2006/95/EC / ISO 9001:2008 |
FAQ
Q1: Can the equipment be customized and modified? What customization services are available?
We support full-dimensional customized modification for steel bar processing equipment. As a professional manufacturer, we can adjust and upgrade the equipment according to local power grid standards, construction specifications and actual site requirements of different countries and regions, realizing personalized configuration for various engineering scenarios.
Q2: Can the electrical system adapt to overseas power grids?
Our equipment supports global power grid adaptation. We can customize voltage, frequency and PLC brand to match local power conditions. It is fully compatible with mainstream overseas power standards such as 400V/50Hz three-phase power in Australia and New Zealand, ensuring stable overseas operation.
Q3: What mechanical structure upgrades are supported?
We provide customized structural upgrades including safety protection doors, safety fences, magnetic pre-feeding racks and 6-meter extended material racks. The minimum bending radius can also be tailored. All modifications are implemented strictly based on the signed technical confirmation sheet to guarantee accurate parameters and standardized production.
