vibratory rammer

vibratory rammer

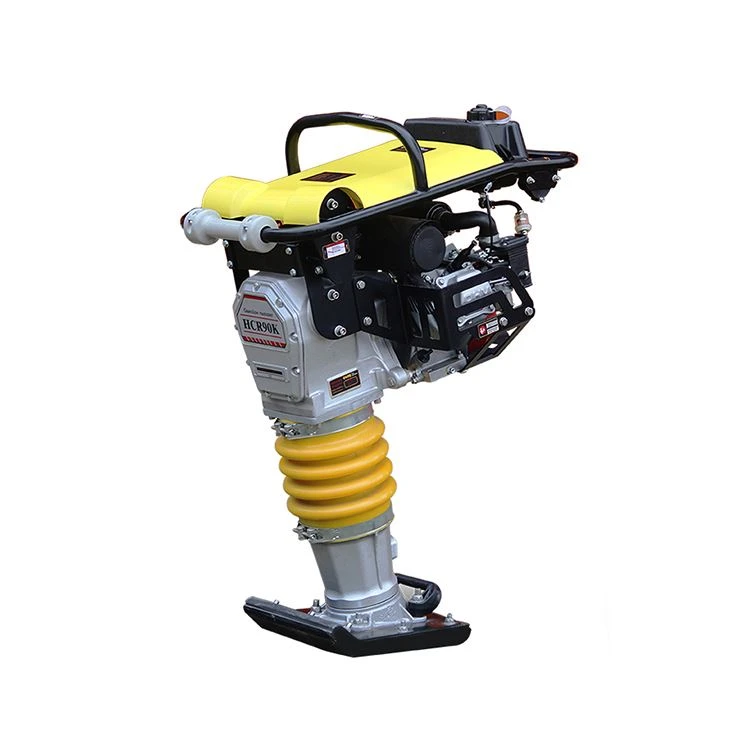

The gasoline tamping rammer/ tamper rammer is mainly used for the compacting of sand and gravel, asphalt, concrete, etc in the road, courtyard, sub grade, bridge pile, groove, wild, narrow places.
Send Inquiry
Description
HCR90K Configuration Advantages



Honda Engine
The engine stays intact under long-term continuous bouncing vibration. Its four-stroke design delivers steady torque output with lower fuel consumption. It starts smoothly in cold and dusty construction sites and runs with low noise, ideal for construction in urban blocks and residential areas.



Heavy-Duty Energy Storage Spring
The spring resists fatigue and deformation during hours of frequent bouncing, maintaining steady impact force for even compaction depth. It absorbs machine vibration and cuts vibration transferred to handles.



Custom High-Strength Impact Plate
The plate withstands repeated hits from hard soil, sand and gravel without bending, cracking or denting. It fits closely against the ground for thorough compaction in narrow trenches and wall edges, leaving no loose or uneven ground.



Technical Parameters



RAMMER HCR90K

WEIGHT

85KG

DIMENSION

900*510*1150MM

SHOE SIZE

335*285MM

FORWARD SPEED

10-13M/MIN

JUMPING STROKE

350*150*1.5MM

DIAMETER OF FINISH DISC

40-80MM

ENGINE MODEL

GX160/GX100

POWER

5.5HP

IMPLUSE FORCE

14KN

CERTIFICATION

2006/42/EC-2006/95/EC/ ISO 9001:2008



Company Profile



Customized Vibratory Rammer

mmexport172022975647702

mmexport172022975647704

mmexport172022975647706

mmexport172022975647708

mmexport172022975647710

Hot Tags: vibratory rammer, China vibratory rammer suppliers, factory, Electric Jumping Jack Compactor, Pneumatic Earth Rammer, Rammer Machine, Tamper Rammer, Tamper Rammer Compactor, Vibratory Rammer
