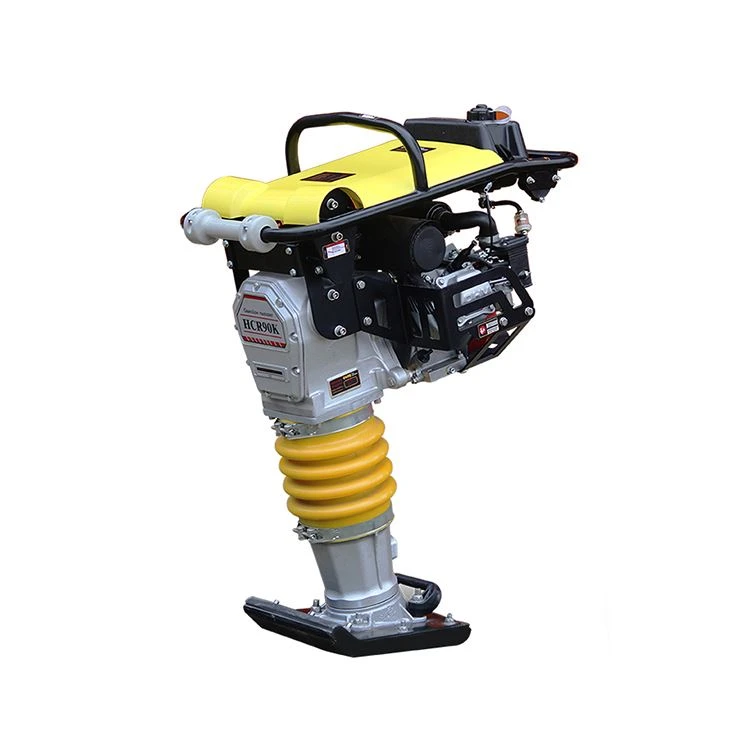

This HCR90K tamper rammer compactor is fitted with a reliable Honda engine for stable power output on site. It adopts high-strength spring set and optimized base plate structure, bringing large jumping amplitude and solid tamping force to compact loose soil evenly.
Features
1. Matched genuine Honda engine, runs stably in various outdoor working environments with consistent power output
2. Heavy-duty high-tension spring design creates larger jumping stroke, providing strong impact force for thorough soil compaction
3. Custom base plate with balanced hardness and toughness, wear-resistant and not easy to deform for long-term field use
4. Solid overall build, perfectly suited for foundation tamping and groove backfill compaction for road, railway and municipal projects
Technical Parameters
|
GASOLINE RAMMER HCR90K |
|
|
WEIGHT |
85KG |
|
DIMENSION |
900*510*1150MM |
|
SHOE SIZE |
335*285MM |
|
FORWARD SPEED |
10-13M/MIN |
|
JUMPING STROKE |
350*150*1.5MM |
|
DIAMETER OF FINISH DISC |
40-80MM |
|
ENGINE MODEL |
GX160/GX100 |
|
POWER |
5.5HP |
|
IMPLUSE FORCE |
14KN |
|
CERTIFICATION |
2006/42/EC-2006/95/EC/ ISO 9001:2008 |
