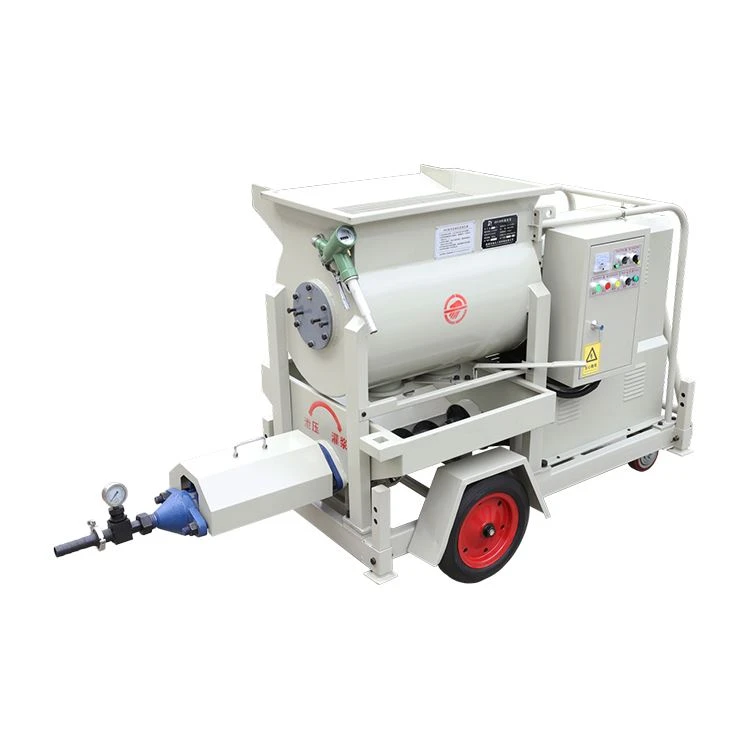

Grout mixer and pump with remote control GJB400B
Description
Model GJB400B mixes raw materials at fast speed, fitted with imported electric fittings and high-power drive motors. It processes dense thick mortar and slurry while adapting to sand with different grain sizes. This Grout Mixer and Pump with Remote Control suits various on-site grouting work with flexible water-cement ratio adjustment.
Main Technical Parameters
|
Grout mixer and pump with remote control GJB400B |
|||
|
Parameters |
Unit |
Data |
|
|
Output |
L/H |
4000 |
|
|
Motor power rate |
kw |
9.0+4.0 |
|
|
Sand grain size |
mm |
≤5 |
|
|
W/C |
≥0.3:1 |
||
|
Grouting pressure |
Mpa |
2.5-5.0(adjustable) |
|
|
Pumping distance |
Vertical |
M |
70(mortar)/90(grout) |
|
Horizontal |
400 |
||
|
Hopper volume |
L |
145+90 |
|
|
Total weight |
kg |
570 |
|
|
Size(length×width×height) |
mm |
2400(1685) ×860×1220 |
|
Products Features
Wireless remote control works within a 150-meter range; staff adjust running states without wired signal connection.
Imported electric parts pair with high-power motors to support long-hour continuous mixing and pumping on construction sites.
The unit accepts mortar of different thickness and mixing proportions, and runs smoothly with dense shotcrete materials.
Operators adjust water-cement ratios freely, and the pump fits sand with wide particle size range.
Application
Teams carry out anchor cable, small conduit, pipe shed, foundation consolidation, backfill, subgrade and anti-floating anchor grouting, plus chemical slurry and pressure grouting works with this Grout Mixer and Pump with Remote Control.
