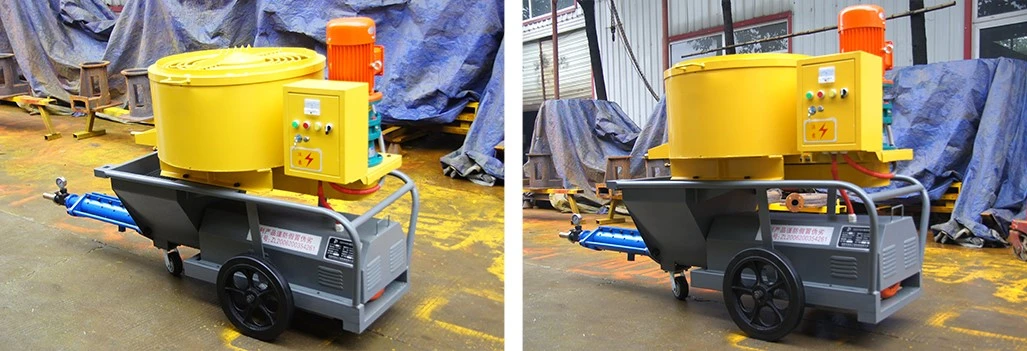

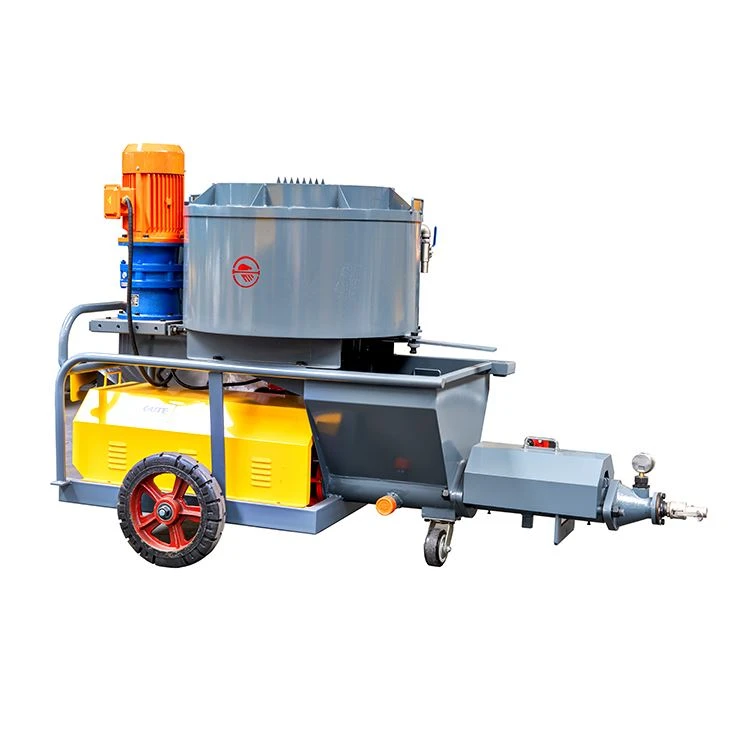

Grout Mixer and Pump with A Vertical Mixing Device

This Grout Mixer and Pump with A Vertical Mixing Device adopts vertical stirring assemblies to cut mixing time, paired with wireless remote control for flexible onsite operation.

Send Inquiry

Description

Model GJB300BS combines vertical fast mixing and pumping in one unit. Imported electric parts match high-power domestic drive motors, and users can operate the machine remotely within 150 meters without signal cables. This Grout Mixer and Pump with A Vertical Mixing Device processes thick dense mortar and sand of various grain sizes for different grouting construction.

Technical Parameters

Grout mixer and pump with a vertical mixing device GJB300BS
Parameters		Unit	Data
Output		L/H	3500
Motor power rate		kw	7.5+4.0
Sand grain size		mm	≤4
W/C			≥0.3:1
Grouting pressure		Mpa	2.5-5.0(adjustable)
Pumping distance	Vertical	M	60(mortar)/80(grout)
	Horizontal		350
Hopper volume		L	165+90
Total weight		kg	490
Size(length×width×height)		mm	2205(1490) ×810×1380

Products Advantages

1.Vertical stirring structure speeds up raw material blending during daily continuous work.
2.Wireless remote modules support equipment adjustment within a 150-meter working radius.
3.Imported control electrics coordinate with high-power motors to sustain long-hour mixing and pumping cycles.
4.The unit works with mortar of different thickness levels and adjustable water-cement ratios, handling dense shotcrete materials smoothly.
5.It accepts sand with different particle sizes and fits multiple custom mixing ratios according to raw materials on construction sites.

Application

Construction crews rely on this Grout Mixer and Pump with A Vertical Mixing Device for anchor cable, small conduit, pipe shed, foundation consolidation, backfill, subgrade and anti-floating anchor grouting, together with chemical slurry and all pressure grouting construction jobs.
