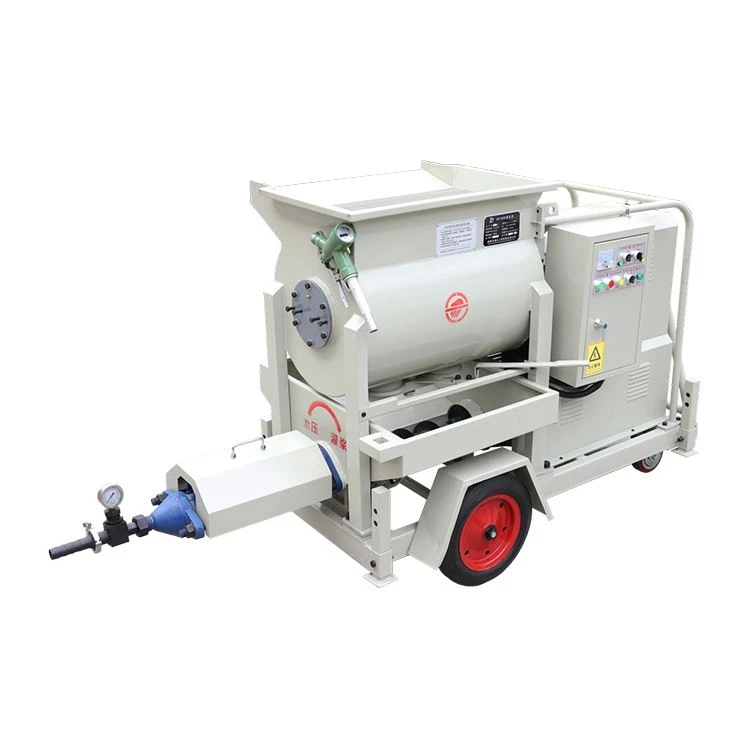

Grout Mixer and Pump

This GJB300B grout mixer and pump combines mixing and pumping as a single machine. It mixes thick dense mortar and comes with wireless remote control for field grouting tasks.

Send Inquiry

Description

Imported electrical parts are fitted on this integrated grout mixer and pump to cut breakdowns during long working hours. It carries a standard high-power motor and a wireless remote system usable within 150 meters. GJB300B processes thick mortar mixes that regular pumps struggle to move.

Grout mixer and pump GJB300B

Features

1. Combined mixing and pumping unit removes extra separate machines
2. Quick mixing prevents cement lumps and delivers evenly blended mortar
3. Wireless remote control works up to 150 meters, letting operators stay away from high-risk grouting zones
4. High-power motor holds steady pumping pressure under non-stop heavy load
5. Takes different sand grain sizes and wide water-cement mixes, works well with thick dense grout

Technical Parameters

Grout mixer and pump GJB300B
Parameters		Unit	Data
Output		L/H	3500
Motor power rate		kw	7.5+4.0
Sand grain size		mm	≤4
W/C			≥0.3:1
Grouting pressure		Mpa	2.5-4.0(adjustable)
Pumping distance	Vertical	M	60(mortar)/80(grout)
	Horizontal		350
Hopper volume		L	145+90
Total weight		kg	545
Size(length×width×height)		mm	2400(1685) ×860×1220

product-1027-351

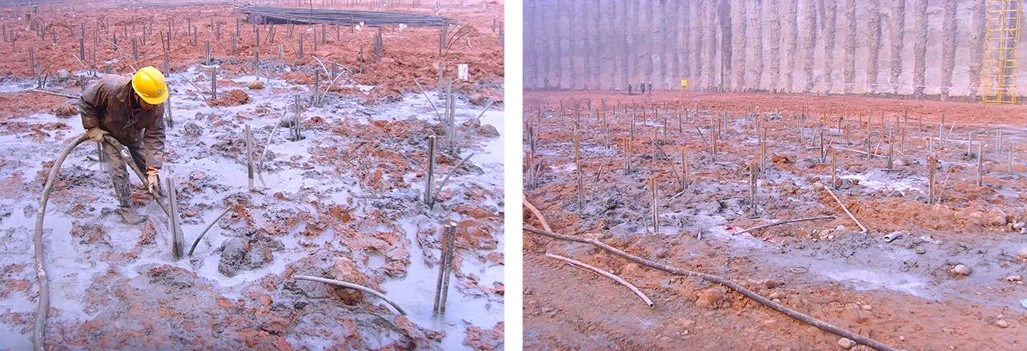

Application

Used for anchor, consolidation, backfill and subgrade grouting jobs. It handles slope reinforcement, dam repair, anti-floating anchor and small conduit grouting, pumping cement mortar and single-component chemical slurry under pressure.
