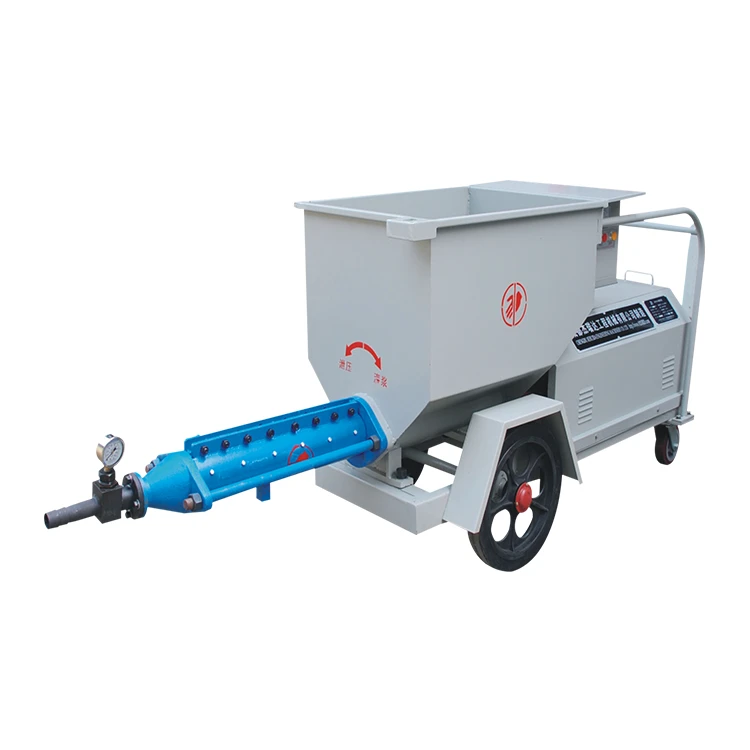

Backfilling Screw Grout Pump without Mixer

Backfilling screw grout pump without mixer GJB500 grout pump owns novel pump structure and unique design. it avoids the shortcomings of the difficulty in pouring thick grout or mortar, making it safe, convenient and highly efficient to use.

Send Inquiry

Description

Piston pumps struggle with thick cement mixes, while this pump moves them smoothly. It comes with motor, gearbox, feeding assembly, worm gear, stator, pressure gauge, hopper and electric control system. Pressure builds up evenly inside the chamber for steady pumping, and the pressure reverse function quickly releases residual injection pressure.

Features

1. Compact body with imported electric parts, fewer breakdowns during long shifts of construction
2. Easy to run; daily maintenance only needs simple cleaning work
3. Light weight with wheels, workers can move it between construction spots effortlessly
4. Works with mixes that have high water-cement ratios to form dense filling layers
5. Pumps grout with high sand content and different sand sizes without clogging
6. No sudden pressure spikes. Operators can adjust pressure freely and reverse pressure to release excess pressure fast

Technical Parameters

Backfilling screw grout pump without mixer GJB500 grout pump
Parameters		Unit	Data
Output		L/H	6000
Motor power rate		kw	7.5
Sand grain size		mm	≤5
W/C			≥0.3
Grouting pressure		Mpa	2.5-6.0(adjustable)
Conveying distance	Vertical	M	80(mortar)/100(grout)
	Horizontal		500
Hopper volume		L	200
Total weight		kg	360
Size(length×width×height)		mm	1450×950×670

product-1027-718

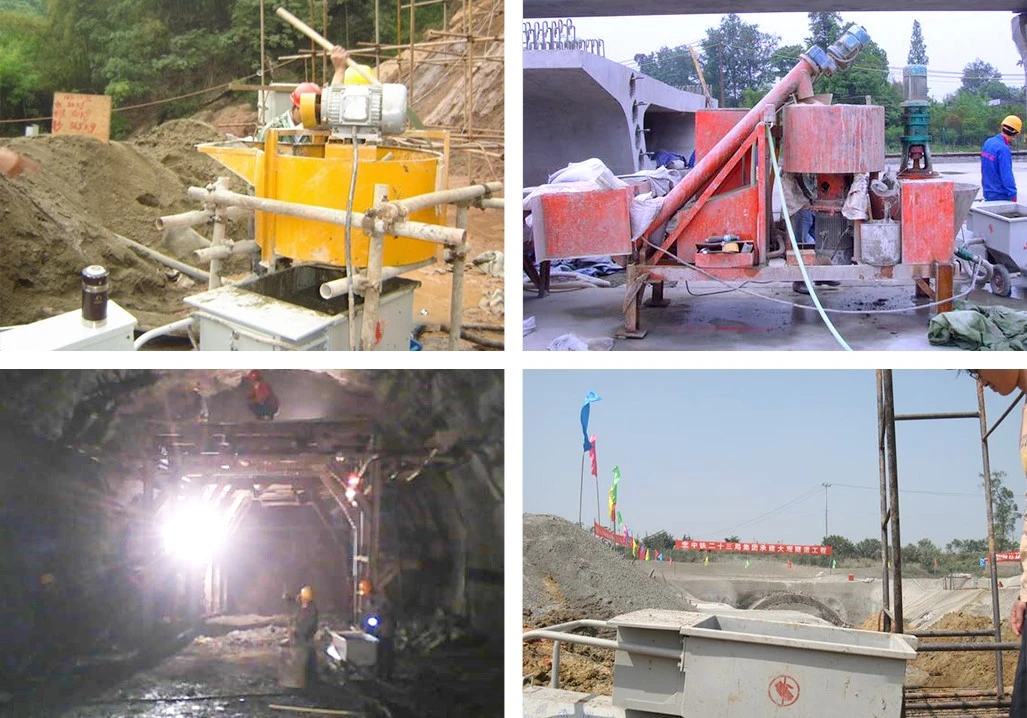

Application

Used for anchor bolt grouting, consolidation grouting and backfill grouting on roads, railway tunnels, subways and hydropower underground caverns. It also handles curtain grouting for dams, slope and soft rock reinforcement, and sprays base & finish coats on indoor and outdoor building walls.
