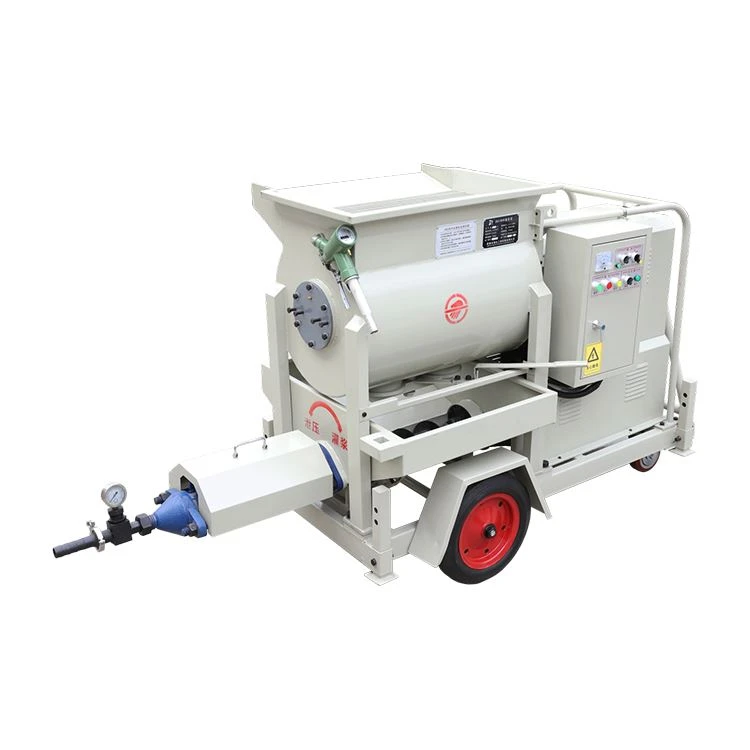

Grout Mixer and Pump with Higher Motor Power Rate

Grout mixer and pump with higher motor power rate GJB500B integrates a mixing device with fast mixing speed. It utilizes imported electrical components, ensuring reliable performance.

Send Inquiry

Description

The GJB500B high-power grouting and mixing pump features an integrated mixing unit capable of high-speed mixing. It utilizes imported electrical components to ensure reliable performance and is equipped with a wireless remote control system, allowing for operation within a 150-meter radius. The unit is powered by a standard domestic motor that delivers higher power output.

Technical Parameters

Grout mixer and pump with higher motor power rate GJB500B
Parameters		Unit	Data
Output		L/H	6000
Motor power rate		kw	7.5/3.0
Sand grain size		mm	≤5
W/C			≥0.3
Grouting pressure		Mpa	2.5-6.0(adjustable)
Pumping distance	Vertical	M	80(mortar)/100(grout)
	Horizontal		500
Hopper volume		L	220
Total weight		kg	520
Size(length×width×height)		mm	1720 ×850×1240

product-1027-351

Products Application

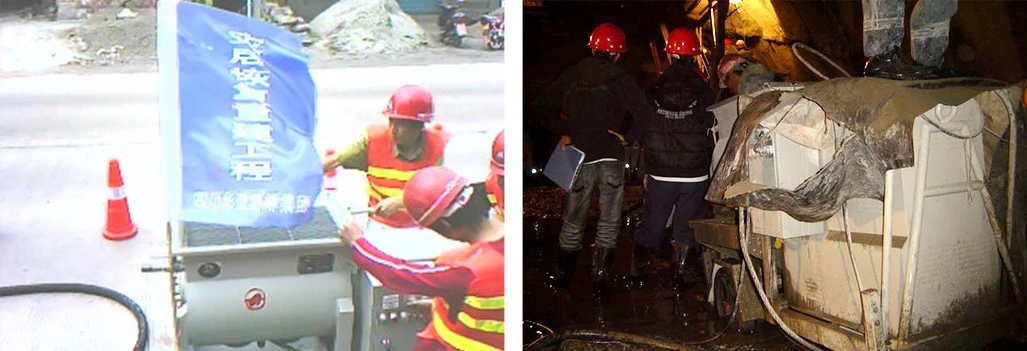

The JRD mixing and pumping machine supports various on-site grouting and pressure grouting operations. It works with cement slurry, chemical slurry, conventional mortar, and different anchor grouting scenarios, including foundation consolidation, backfill, subgrade reinforcement and anti-floating anchor construction.

It adapts to a wide water-cement ratio and accepts thick, high-density shotcrete mixes. The equipment stably pumps mortars with different mixing ratios, consistencies and sand particle sizes for diverse construction requirements.
