Products Description

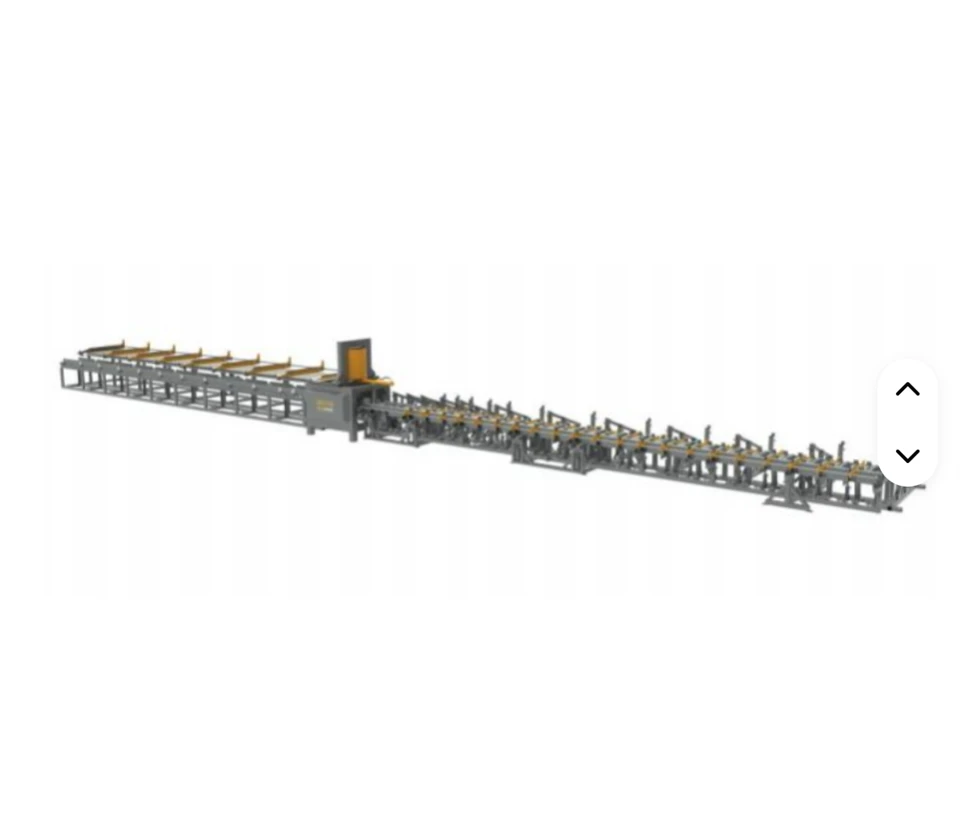

This CNC Reinforcement Bar Cutting Line meets the demands of multi-specification, small-batch production. It supports adjustable cutting lengths from 1.4 to 12 meters and a maximum cutting width of 500 mm, with a roller conveyor speed reaching up to 100 m/min. The equipment performs up to 12 cutting cycles per minute with a cutting tolerance controlled within ±5 mm, powered by a 42 kW full-load system. This balanced configuration makes it an ideal choice for precast component plants, rebar distribution centers, and large-scale infrastructure rebar processing workshops.

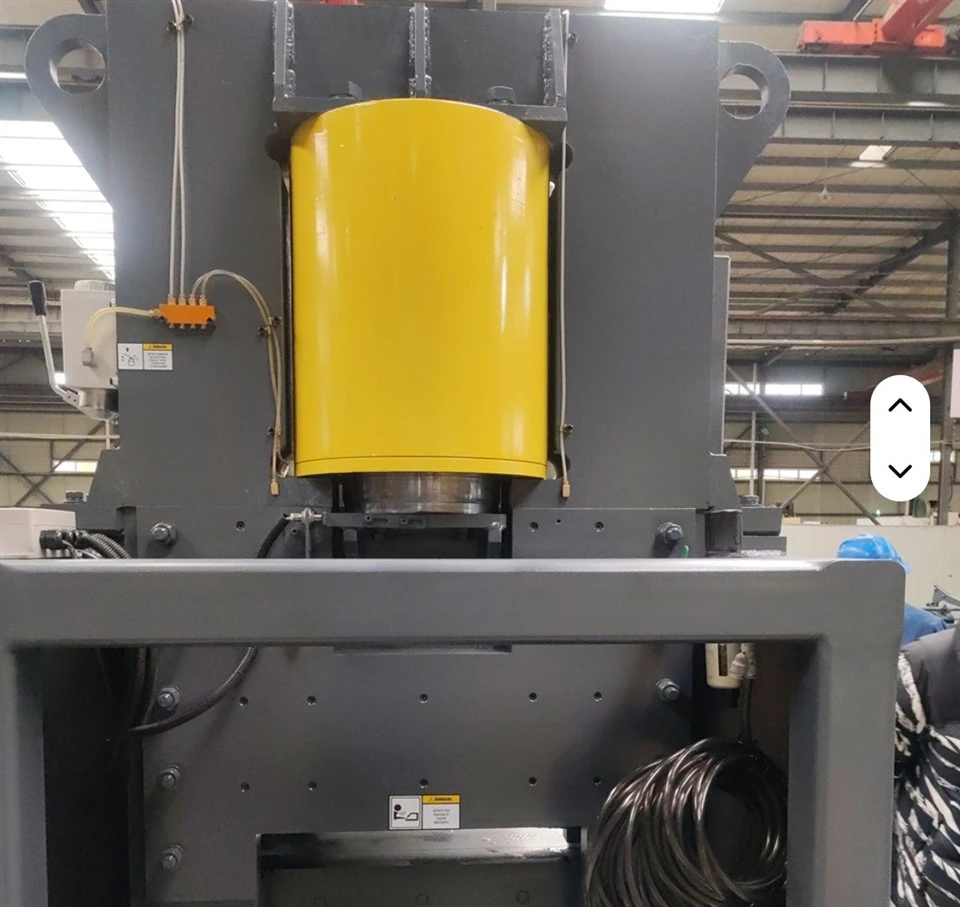

Mechanically, the equipment features an inclined long-blade design that supports the simultaneous cutting of multiple rebar strands, significantly boosting production efficiency. Thickened and widened gear sets ensure stability during the shearing process, while high-strength helical positioning screws effectively resist deformation during high-load, repetitive operations, maintaining consistent positioning accuracy over long-term use.
Cutting length and positioning operations are precisely controlled by a PLC and servo drive system. Operators can set arbitrary cutting lengths for continuous cyclic production, eliminating the dimensional inconsistency issues common with traditional mechanical cutters.

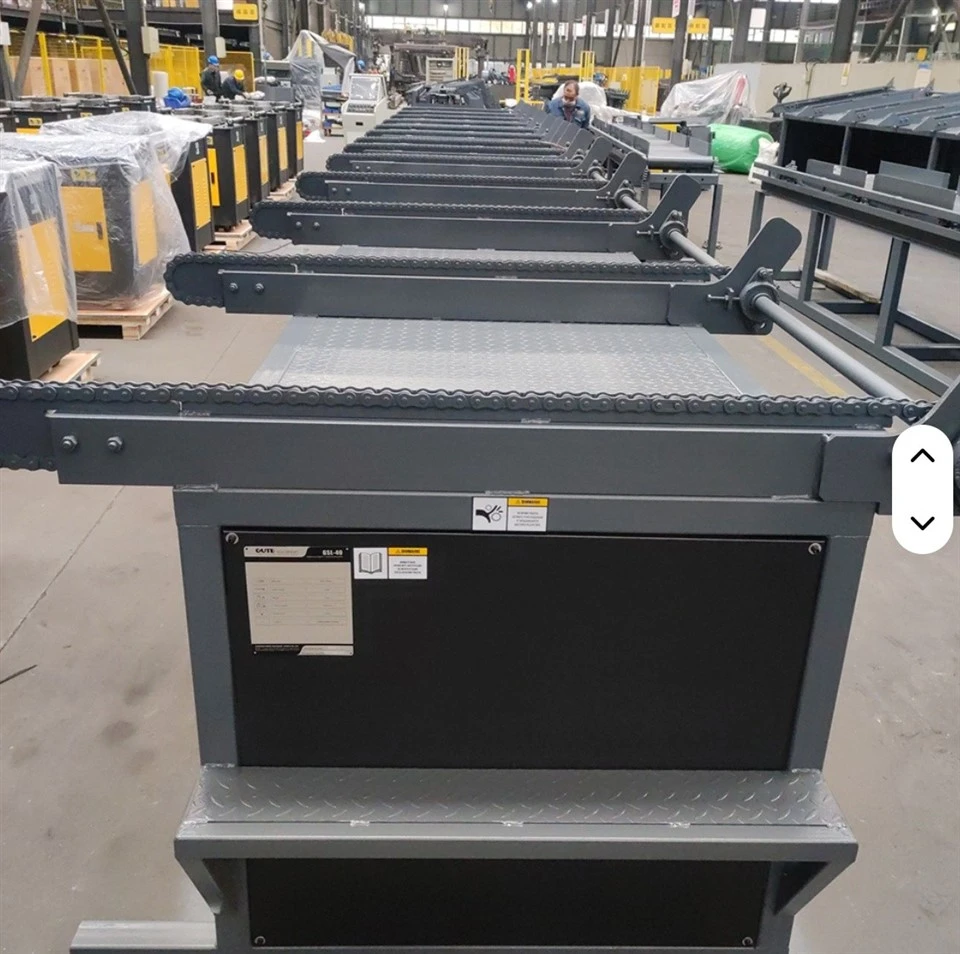

Designed for harsh construction site environments, the equipment is fully optimized for safety and durability. A fully enclosed protective housing minimizes operational risks, while a centralized lubrication system reduces component friction and extends service life. The key-type guide chain utilizes rolling friction transmission, reducing daily wear and enhancing overall conveying efficiency.
To ensure smooth material handling, the line is equipped with 24 steel sizing plates, a pre-feeding structure, and a speed-limiting stop-conveyor design, guaranteeing orderly and continuous rebar unloading. A built-in three-stage storage mechanism facilitates the collection of finished rebar in various specifications, simplifying sorting and stacking tasks during large-scale production.
Technical Specifications
| Feature | Specification |
| Voltage | 380V |
| Cutting Edge Width | 500 mm |
| Shearing Mode | Hydraulic |
| Shear Frequency | ≤12 cuts/min |
| Shear Accuracy | ±5 mm |
| Max. Shear Length | 12 m |
| Min. Shear Length | 1.4 m |
| Roller Speed | 0–100 m/min (adjustable) |
| Silo Series | 3 |
| Rated Power | 42 kW |
| Total Weight | 15,000 kg |
| Dimensions (L × W × H) | 30 × 5 × 3 m |
| Core Components | Motor |
| Certification | CE Certified |
| Warranty | 1 Year |
| Brand | GUTE |
| Origin | Sichuan, China |
Shearing Capacity by Diameter
| Diameter (mm) | 12 | 16 | 18 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|---|---|
| Quantity (pcs) | 40 | 25 | 22 | 20 | 15 | 12 | 6 | 1 |
Electrical & Pneumatic Components
|
Typical Applications
This CNC Reinforcement Bar Cutting Line is widely used in rebar processing for bridges and tunnels, precast component manufacturing, municipal and energy infrastructure projects, and large-scale rebar processing centers.
Quality Assurance
| Item | Detail |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Available |
| Certification | CE Approved |
| After-sales Support | Overseas service center and technical guidance |
| Warranty | 1 Year full machine coverage |
Packaging & Delivery
| Item | Detail |
| Package Type | Export-grade crate or industrial frame |
| Package Size | 3000 × 500 × 300 cm |
| Gross Weight | 15,000 kg |
| Delivery Time | 30-60 working days (depending on customization) |
| Shipping Terms | FOB / CIF / CFR available |
