Product Overview

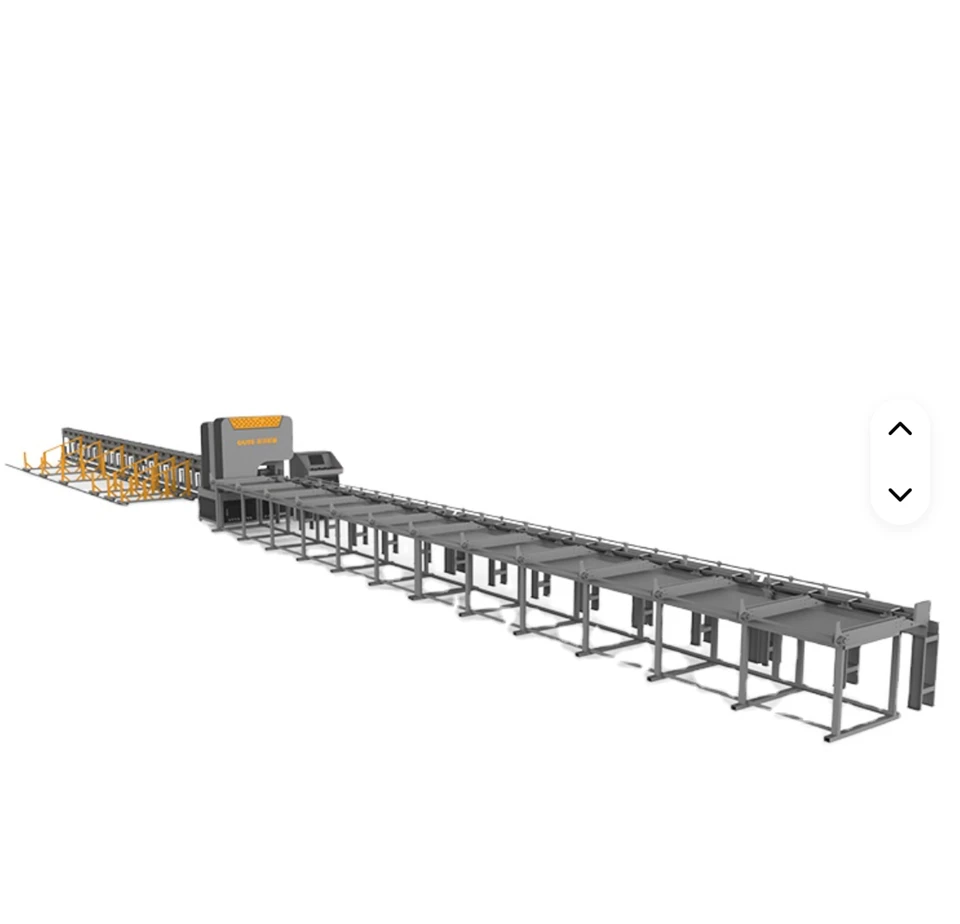

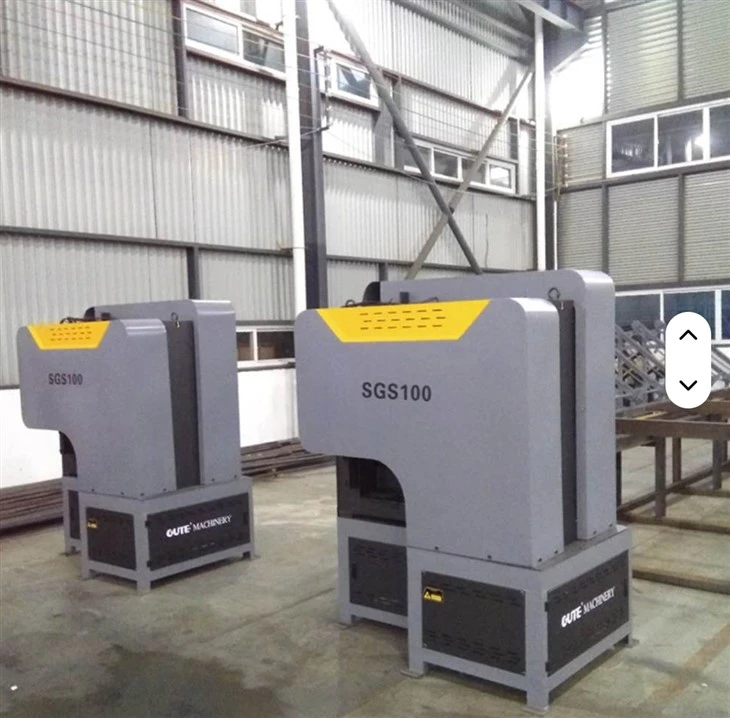

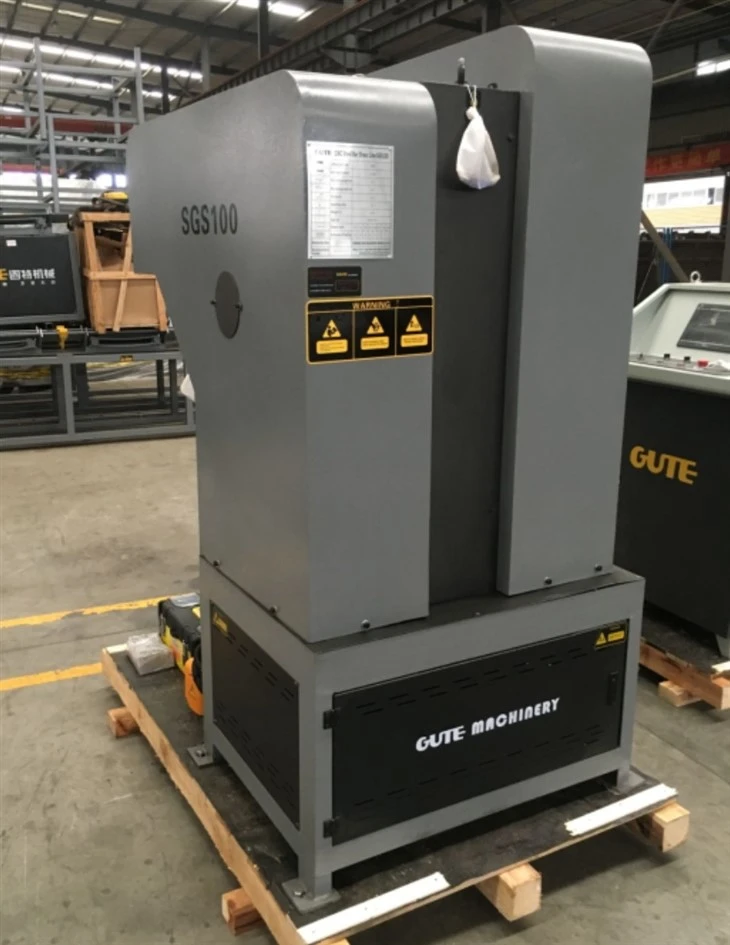

The SGS100 steel bar cutting unit adopts PLC and servo control to handle rebar cutting of various specifications and small-batch orders. It produces clean cuts and lowers material waste during continuous field processing. This CNC Steel Bar Shear Line meets high-frequency rebar blanking demands for fabrication workshops.
Technical Specifications
| Feature | Value |
| Cutting Frequency | ≤22 cuts/min |
| Blade Width | 300 mm |
| Max. Cutting Length | 12 m |
| Min. Cutting Length | 1.5 m |
| Roller Speed | <50 m/min |
| Power Installed | 27 kW |
| Total Weight | 6.8T |
| Machine Size | 28 × 3 × 2m |
| Core Components | PLC, Motor |
| Certification | CE Certified |
| Warranty | 1 Year |
| Place of Origin | Sichuan, China |
| Brand | GUTE |
🔩 Rebar Diameter & Bending Capacity
| Diameter (mm) | 40 | 36 | 32 | 28 | 25 | 20 | 16 | 12 |
|---|---|---|---|---|---|---|---|---|
| Bending Qty | 1 | 1 | 2 | 3 | 4 | 6 | 10 |
12 |
Product Details

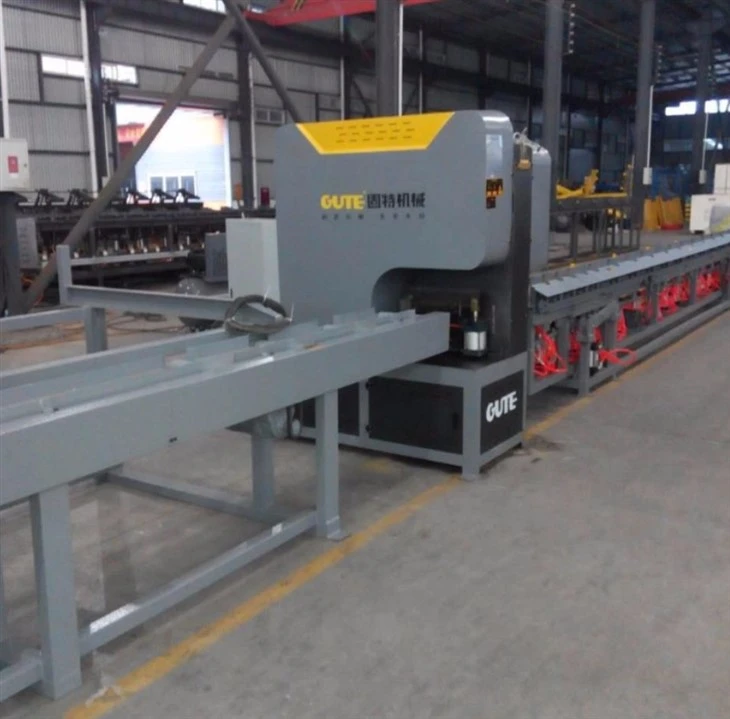

The machine integrates loading and feeding frames into one rigid unit, locking feeding positions to avoid shift and structural distortion during operation. The feeding trough features a raised edge to stop rebars from sliding out.
The built-in pre-feeding mechanism delivers two rebars in continuous sequence, stabilizing material supply and reducing chain wear. The sizing frame adopts solid square steel guide rails to eliminate running shake. Heavy-duty spiral elevators support positioning screw rods and keep rods from bending under long-term load.
Advantages
1. Reliable cutting precision. Servo positioning restricts cutting tolerance within ±5mm, keeping uniform bar sizes across production batches.
2. Powerful cutting performance. Thickened wide gears withstand heavy cutting pressure, and inclined blade structure cuts multiple rebars in a single stroke to raise hourly throughput.
3. Stable automatic cycles. Fitted with Kinco MT4532T touch screen, Delta PLC and Omron relays, the machine runs consistent automatic procedures. Taiwan Airtac pneumatic components sustain continuous field operation.
4. Fast parameter adjustment. 24 fixed-length plates and pin-linked structures move synchronously, cutting down time for length calibration and material replacement.
5. Low maintenance workload. Centralized oil lubrication and chain sliding structures reduce part abrasion. Detachable feed rollers allow quick disassembly and reinstallation during routine maintenance.
Applications
This CNC Steel Bar Shear Line serves precast production of concrete piles and beams. It fits independent rebar processing factories with large-volume blanking needs, and applies to steel frame fabrication lines for highway and bridge infrastructure projects.
Quality Assurance
| Item | Detail |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| CE Certification | Yes |
| Warranty | 1 Year |
| After-Sales Support | Overseas service center and remote diagnostics available |
Packaging & Delivery
| Item | Information |
| Packaging | Steel frame or industrial-grade export crate |
| Dimensions | 2800 × 300 × 200 cm |
| Gross Weight | 6,800 kg |
| Lead Time | 30-60 working days |
| Delivery Terms | FOB, CIF, or CFR available on request |
