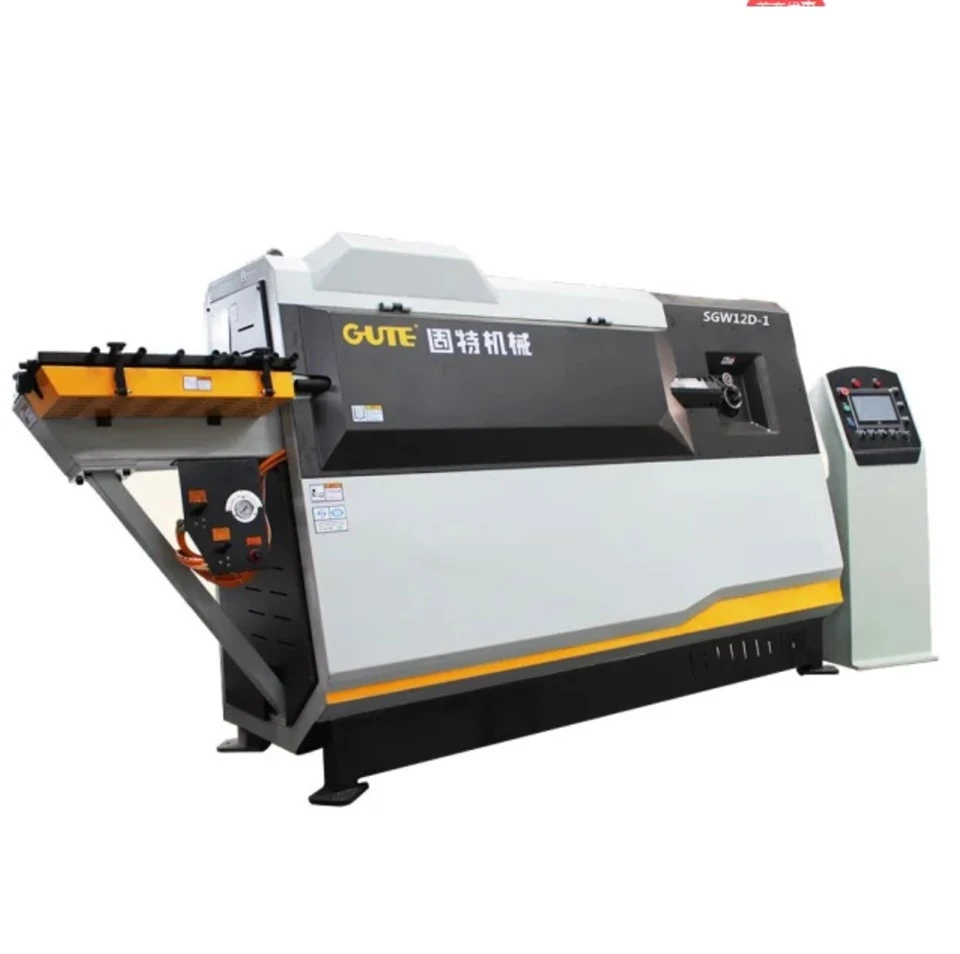

SGW12D-1 processes single and twin deformed steel coils to make various rebar shapes. Operators adjust stirrup dimensions and switch bidirectional bending modes according to project drawings.
Technical Specifications
|
TENSILE STRENGTH |
Kg/mm2 45 |
Kg/mm2 65 |
|
|
|
SINGLE WIRE BENDING |
5-13 mm |
5-10 mm |
|
|
DOUBLE WIRE BENDING |
5-10 mm |
5-8 mm |
|
|
OPERATION |
Automatic wire feeding system(CNC) |
|
|
|
MAX. BENDING ANGLE |
180° |
|
|
|
MAX. LENGTH OF STIRRUP SIDE |
900 mm |
|
|
|
MIN. LENGTH OF STIRRUP SIDE |
90 mm |
|
|
|
MAX. BENDING SPEED |
1050°/sec |
|
|
|
MAX. TRACTION SPEED |
75-100 m/min |
|
|
|
BENDING DIRECTION |
Bi-direction |
|
|
|
TRACTION SERVICE MOTOR POWER |
18KW |
|
|
|
BENDING SERVICE MOTOR POWER |
7.5KW |
|
|
|
CUTTING MOTOR POWER |
4 KW |
|
|
|
TOTAL POWER |
33KW |
|
|
|
AERAGE ELECTRIC CONSUMPTION |
5 KW/H |
|
|
|
L×W×H |
3800×1000×1900 mm |
|
|
|
WEIGHT |
3.5T |
|
Products advantage

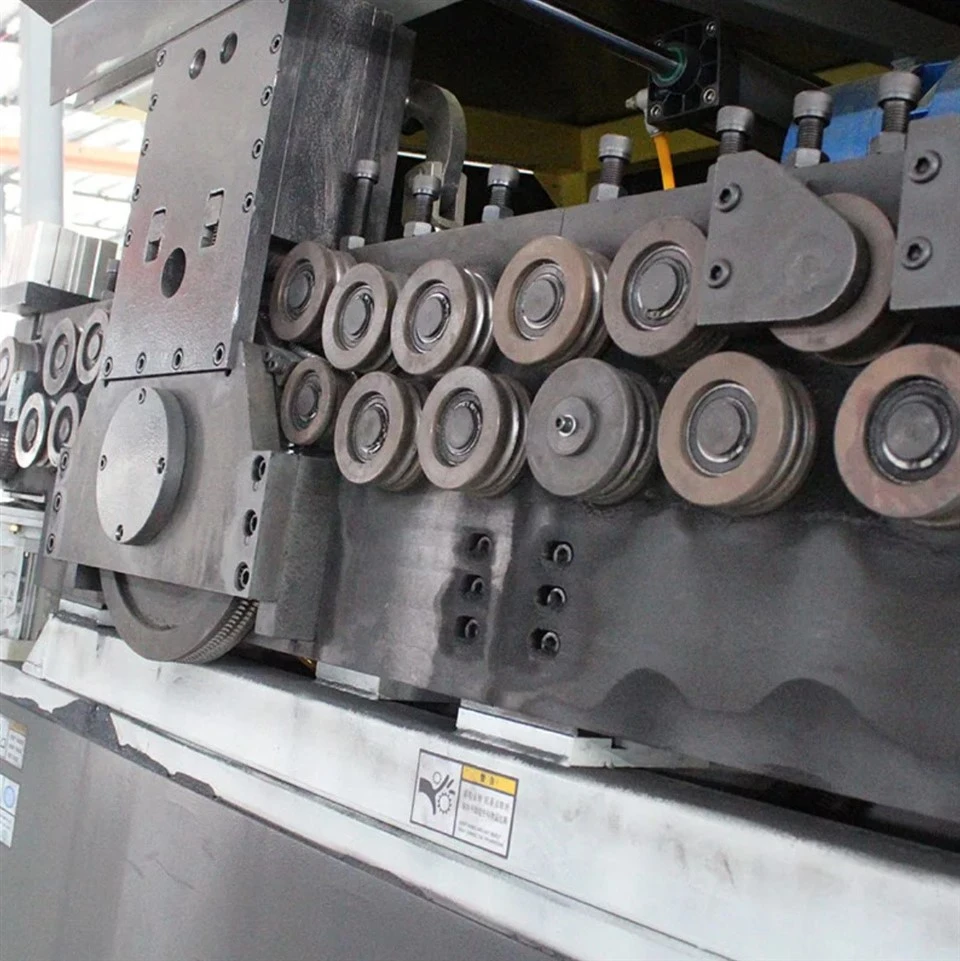

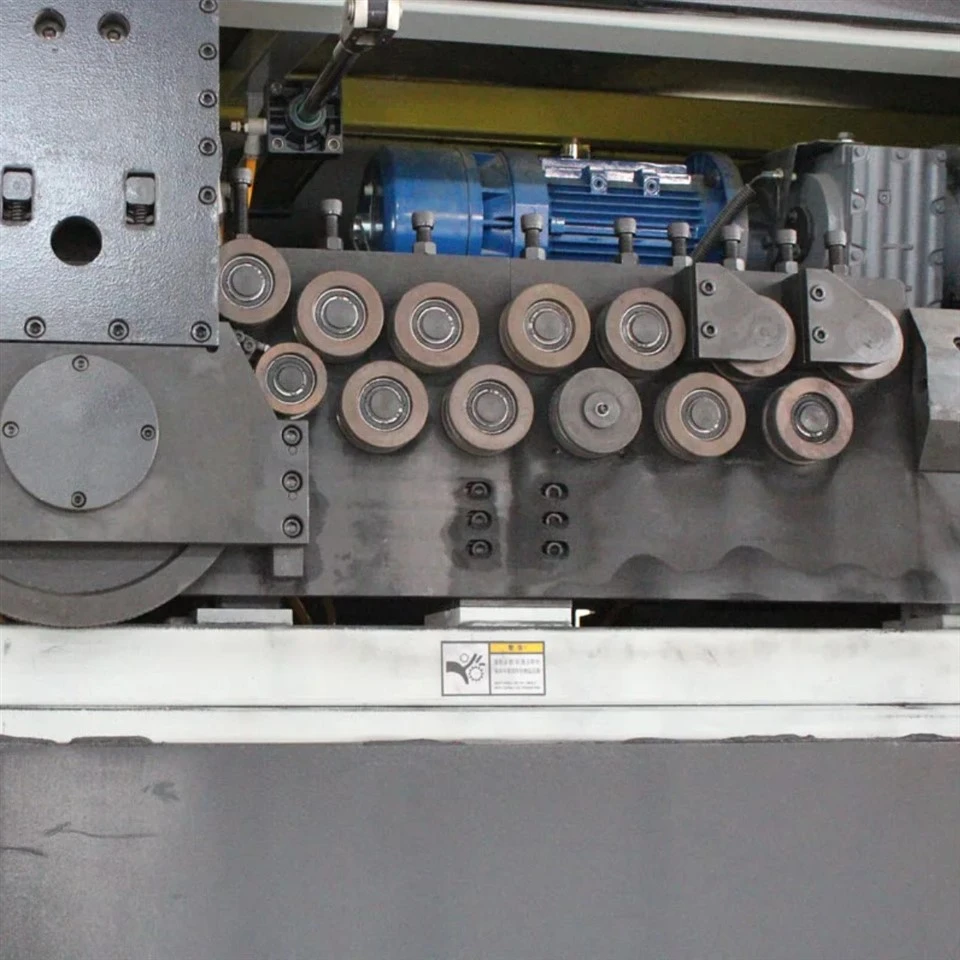

- Japan-made IKO bearings mount on all core moving assemblies. Alloy steel straightening wheels withstand repeated daily grinding and slow replacement frequency. The machine frame adopts thick sheet metal, paired with standard 5mm viewing doors to reduce surface wear on job sites.
- Single wire sizes 5–13mm and paired wires 5–10mm fit this unit. It produces stirrups, circular bars, hook fittings, H-profiles and straight rebars, with adjustable stirrup side lengths from 90mm to 900mm via two-way bending movement.
- The machine outputs up to 1600 stirrups per hour, with each production batch reaching 8 tons. Traction speed runs 75–100 m/min while bending rotation hits 1050°/sec for fast forming.
- Control cabinets use Schneider and Chint electrical components matched with servo drive systems. Multi-language touch panels let field staff input forming parameters easily without long training.
- All servo motors and electrical fittings come with one-year free warranty coverage.
Products difference
|
|
SGW12D-1 |
SGW12D-2 |
SGW12A-1 |
SGW12D-4 |
SGW14D-1 |
SGW16D |
|
Max.Bending Single Wire |
12mm |
12mm |
12mm |
12mm |
13mm |
16mm |
|
Max.Bending Double Wire |
10mm |
8mm |
8mm |
10mm |
10mm |
12mm |
|
Min.Bending Length |
90mm |
90mm |
140mm |
90mm |
90mm |
90mm |
|
Max.Bending Length (Hoop Bending) |
1m |
1m |
1m |
10m |
1m |
10m |
|
Bending Direction |
Bi-Direction |
Bi-Direction |
Single-Direction |
Bi-Direction |
Bi-Direction |
Bi-Direction |
|
Machine Total Power |
33KW |
31KW |
25.5KW |
48KW |
45KW |
65KW |
|
Electric Parts Brand |
Schneider |
Chinese CHIT |
Chinese CHIT |
Schneider |
Schneider |
Schneider |
|
Pay-off Capacity |
2.5T |
2.5T |
2.5T |
2.5T |
2.5T |
3.0T |
|
Machine Weight |
3500Kg |
3300Kg |
1500Kg |
5700Kg |
3600Kg |
5500Kg |
Included Testing & Inspection
| Service | Status |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| CE/ISO Quality Documentation | Available on request |
| QC Standards | ISO 9001:2000-compliant factory testing |
Applications
On-site rebar teams, precast concrete factories, light commercial building contractors and highway fence processing lines select this CNC wire bending machine for mass steel forming work.
Packaging & Delivery
| Details | Info |
| Packaging | Export-grade wooden box / steel pallet |
| Delivery Time | 30-60 working days (FOB or DDP) |
| Unit Type | Single Item |
| Package Size | 3700 x 1200 x 2310 mm |
| Gross Weight | 2,340kg |
After-Sales Service
Our technical engineers provide remote guidance or travel to overseas job sites to resolve equipment faults for global buyers.
Core replacement parts are stocked in warehouses across Asia, North America and Europe for quick shipment.
Each machine set ships with full installation and operation tutorial videos to guide onsite assembly steps.
