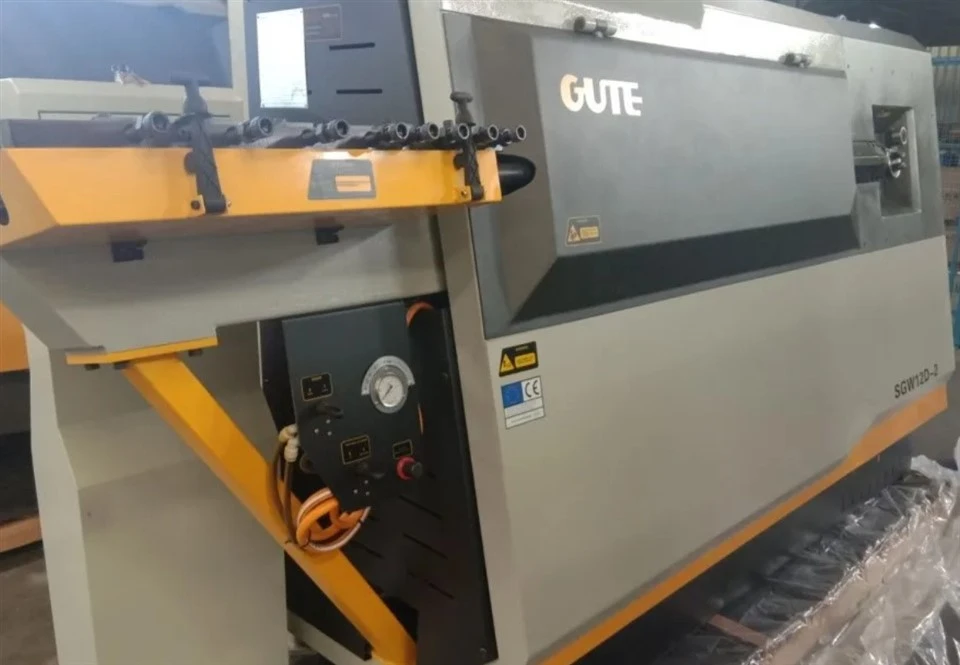

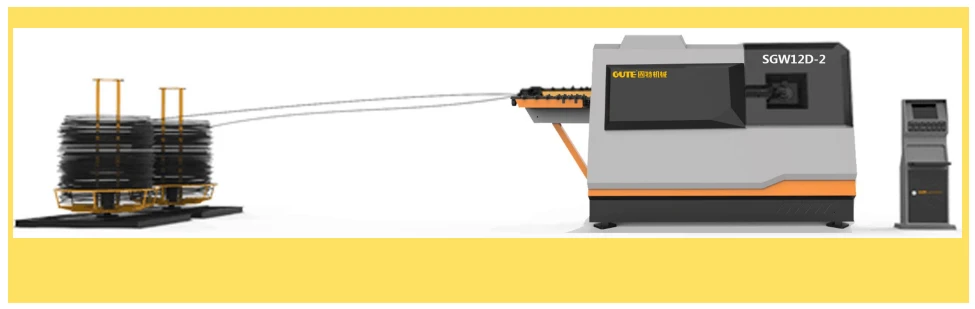

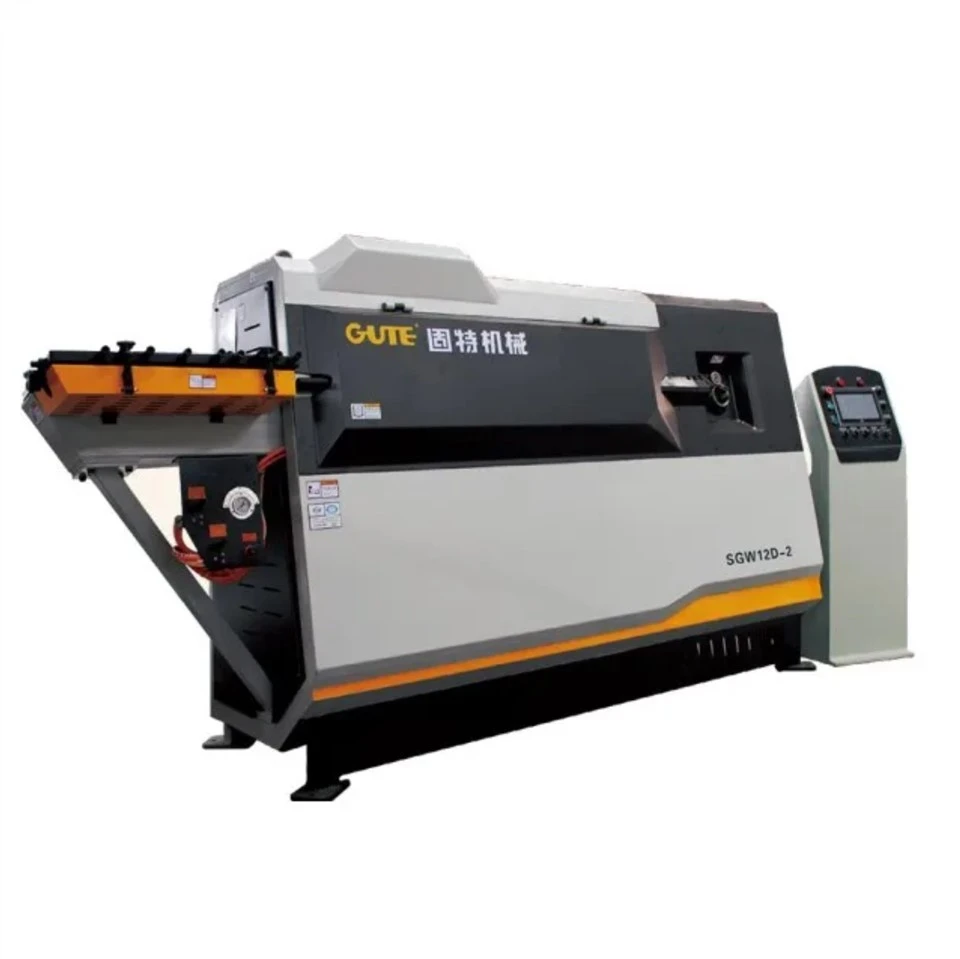

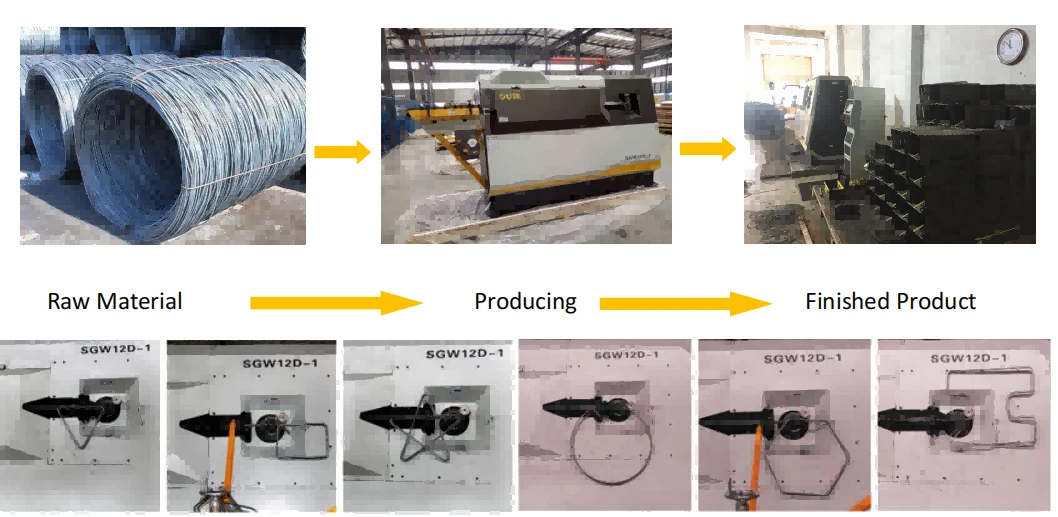

The SGW12D stirrup bender comes from a manufacturer with 25 years of machinery production experience, serving construction industries across 70 countries globally. It optimizes outdated manual and semi-automatic rebar bending workflows, combining wire straightening, feeding, precision bending and cutting into one standalone automated unit. It supports both single and double deformed steel wire processing to fit regular construction requirements.
Advantages
Fully automatic working greatly cuts manual labor and skill dependence. It delivers high output of 1600 stirrups per hour, improving construction efficiency effectively.

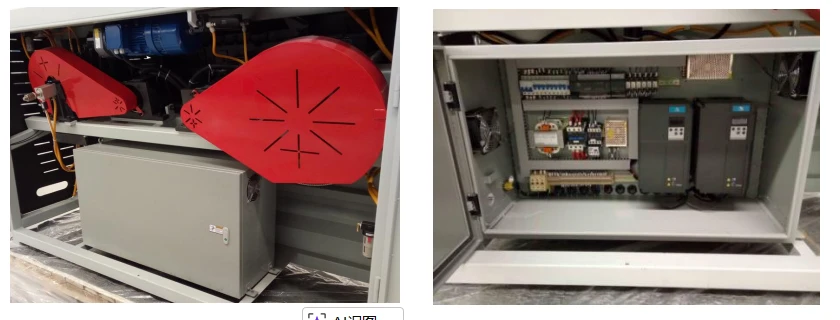

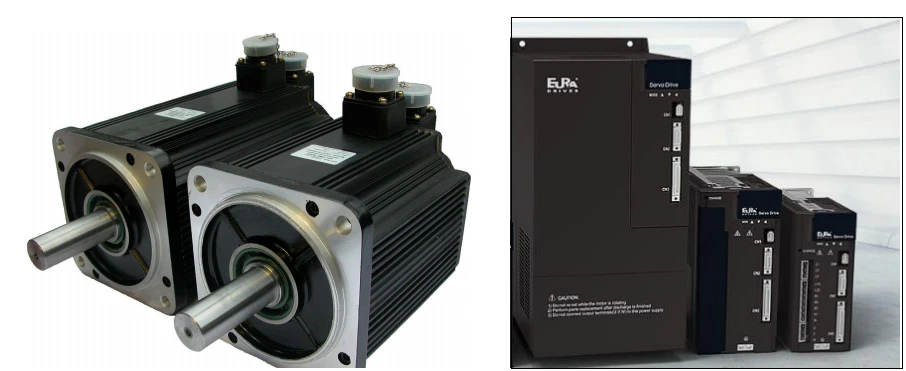

Fitted with EURA servo motors, Schneider electric parts and IKO bearings, the machine maintains stable processing precision. It supports 180° bidirectional bending and makes various standard rebar shapes to fit most project needs.

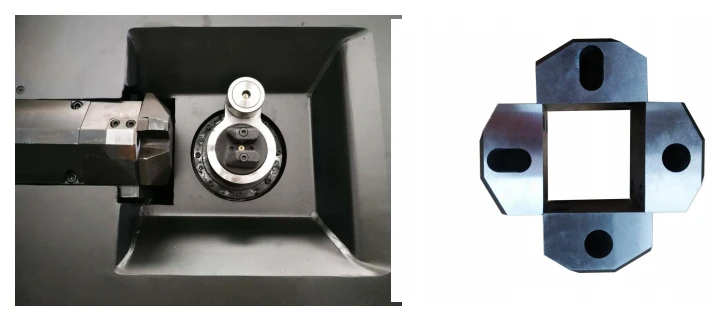

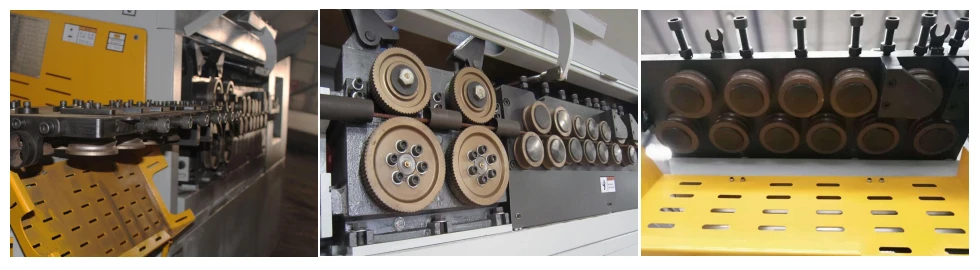

Upgraded alloy steel straightening rollers and thickened split blades improve wear resistance. Reinforced steel plate structure ensures stable performance under long-time high-intensity operation and lowers maintenance frequency.

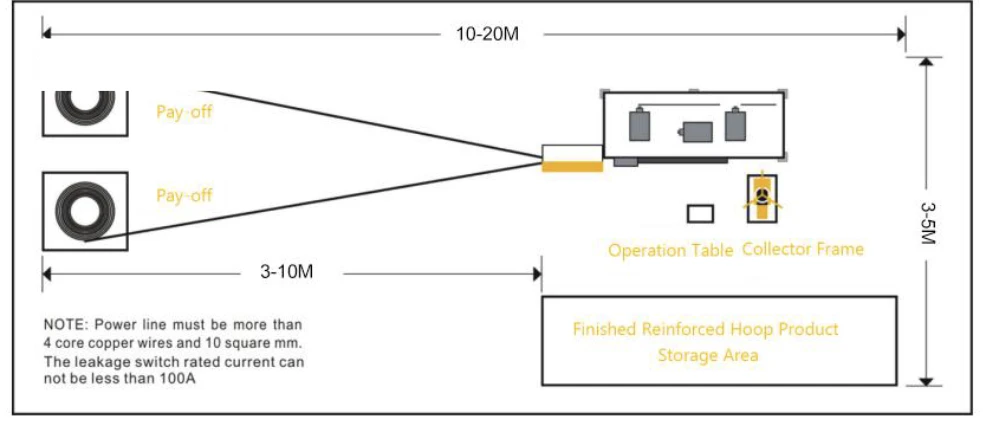

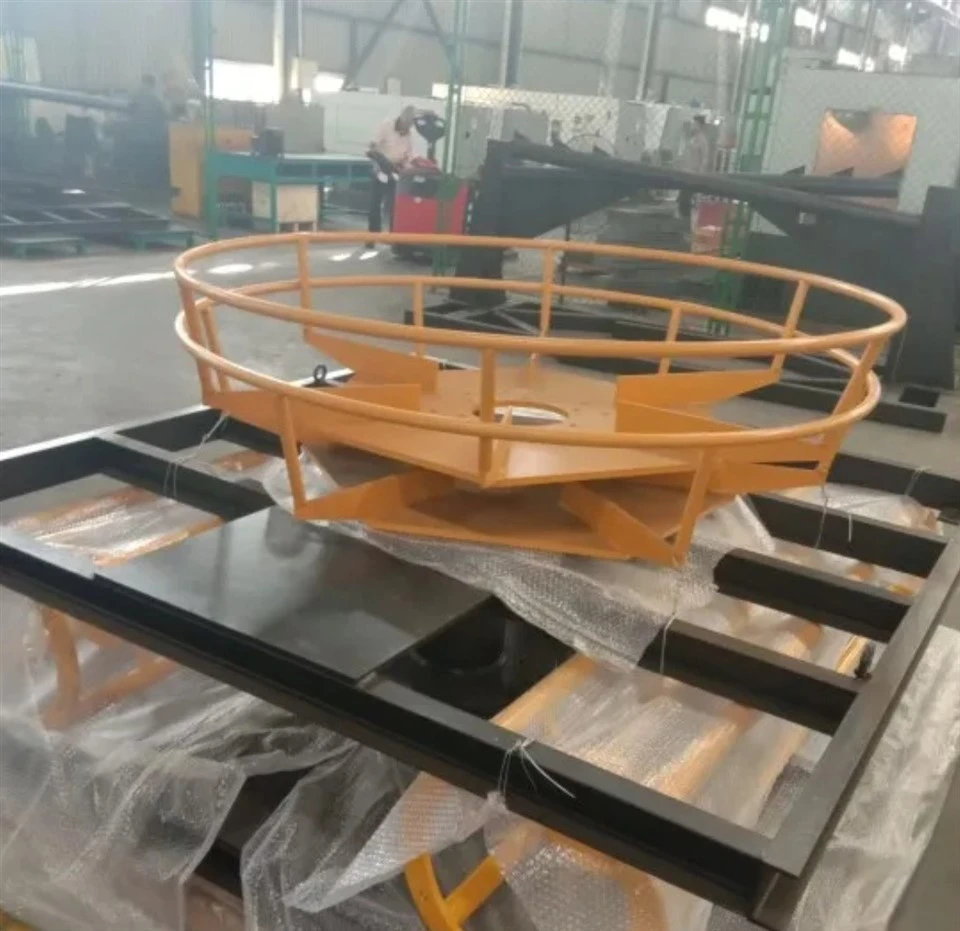

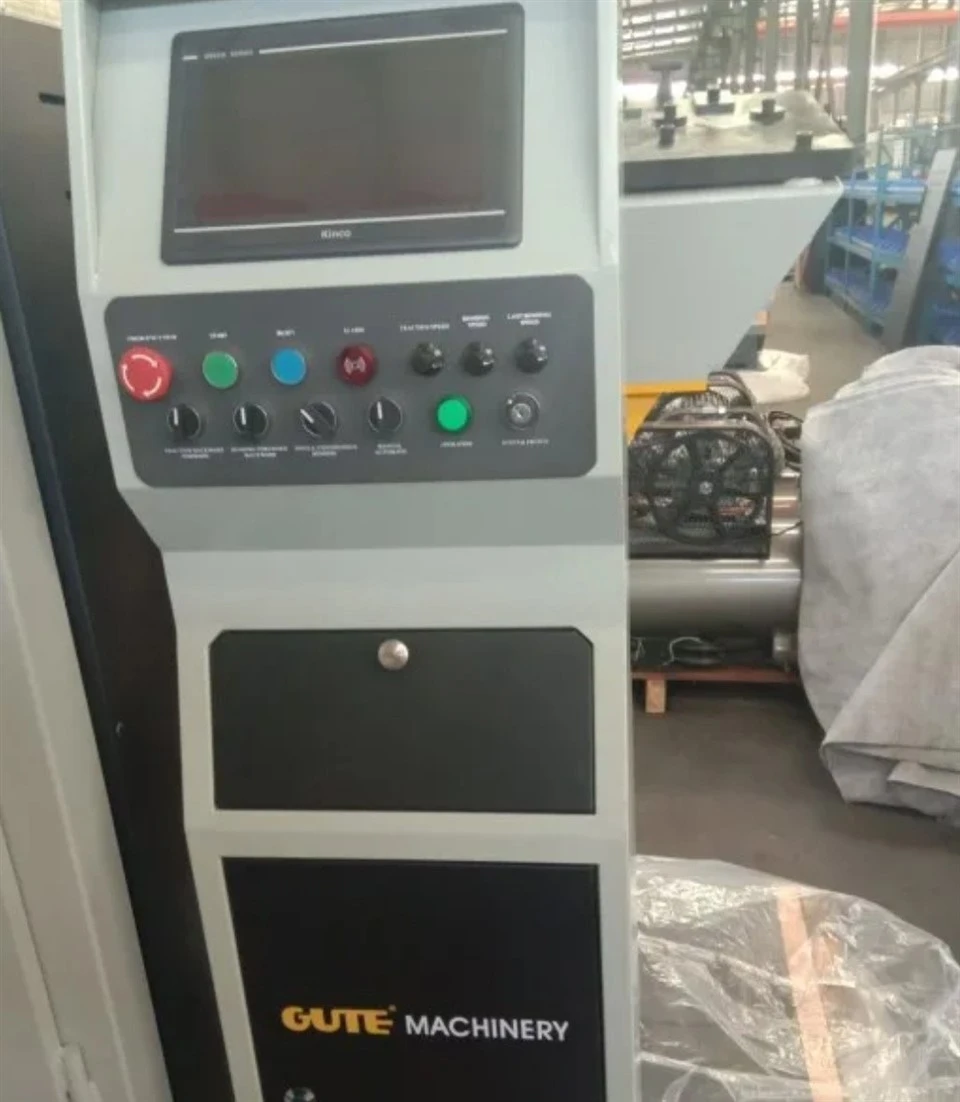

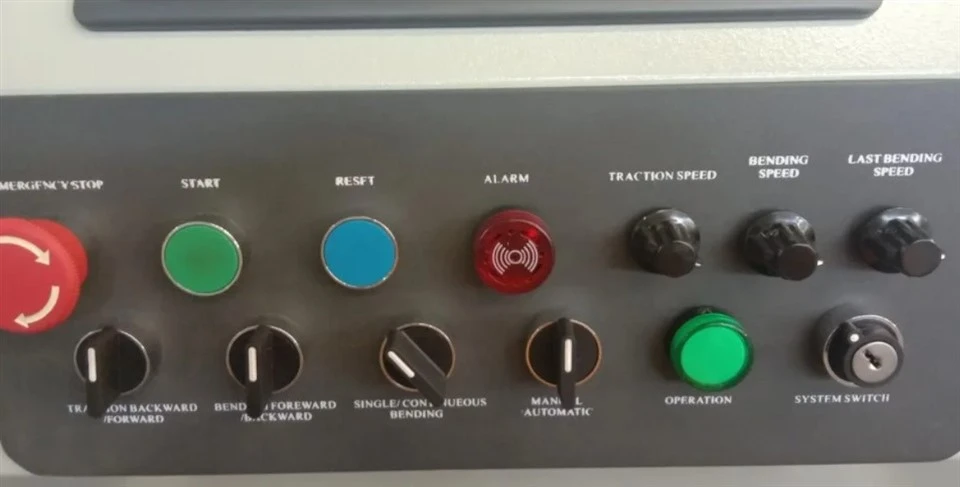

Equipped with a multi-language touch screen, the machine is easy to operate with fast worker training. Compact size and detachable pay-off design save space and suit different site layouts. Custom service and reliable after-sales further support diversified batch production with this 12mm CNC Wire Bending Machine.
Technical Highlights
| Feature | Specification |
| Wire Diameter (Single) | 5–12 mm |
| Wire Diameter (Double) | 5–10 mm |
| Max. Bending Angle | 180° |
| Min. Stirrup Side Length | 90 mm |
| Max. Stirrup Side Length | 1000 mm |
| Max. Traction Speed | 75–100 m/min |
| Max. Bending Speed | 800–1050°/sec |
| Cutting Accuracy | ±1 mm |
| Angle Accuracy | ±1° |
| Installed Power | 32 kW |
| Machine Weight | 2000 kg (net) / 3300 kg (gross) |
| Dimensions | 3300 × 1000 × 1900 mm |
Application
It Is Well-Suited For Large-Scale Construction Rebar Processing Stations, Municipal Works And Bridge Engineering Rebar Fabrication. Precast Concrete Factories And Steel Bar Processing Workshops Can Also Use It For Mass Production Of Carbon Steel And Stainless Steel Stirrups.
Compliance & Quality
| Feature | Status |
| Video Outgoing Inspection | Provided |
| Machinery Test Report | Included |
| Warranty | 1 Year (full machine) |
| Certification | ISO 9001:2000 |
| Origin | GUTE Factory, Sichuan, China |
All machines undergo multi-level QC: full-load test > precision calibration > visual inspection > packaging audit.
Packaging & Shipping
| Item | Detail |
| Selling Unit | Single Machine |
| Packaging | Export wooden case or reinforced steel frame |
| Dimensions | 3570 x 1150 x 2120 |
| Gross Weight | 1,980kg |
| Lead Time | 30-40 working days upon deposit |
