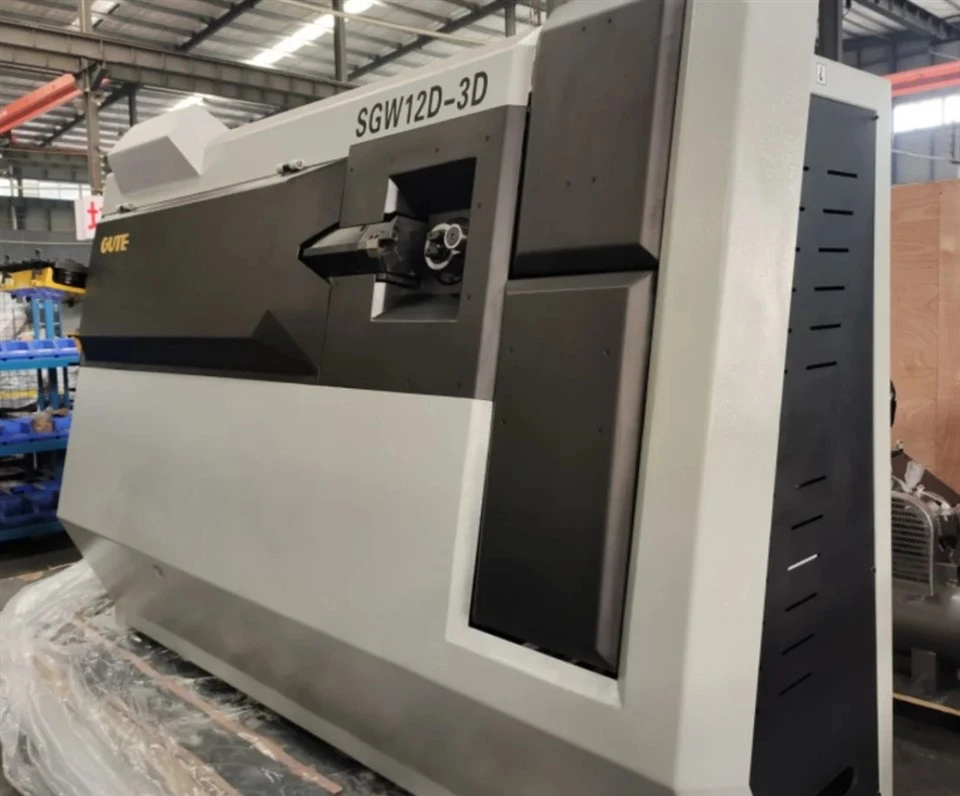

Product Introduction

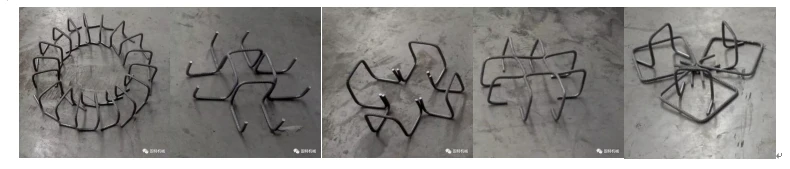

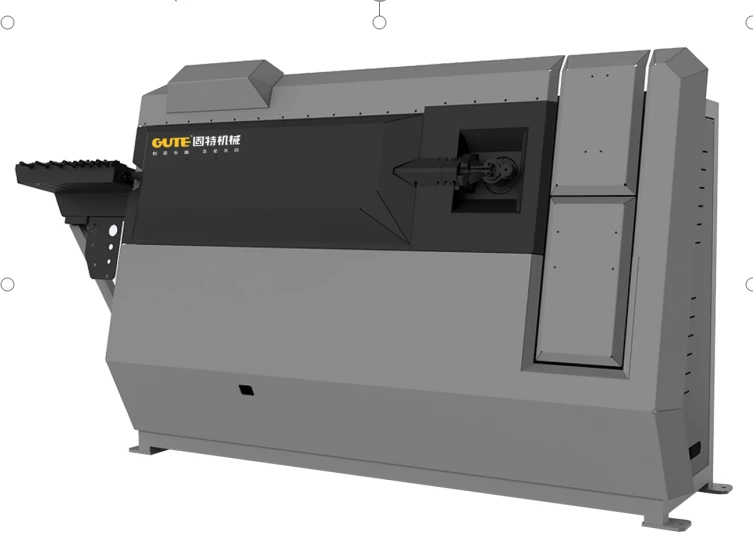

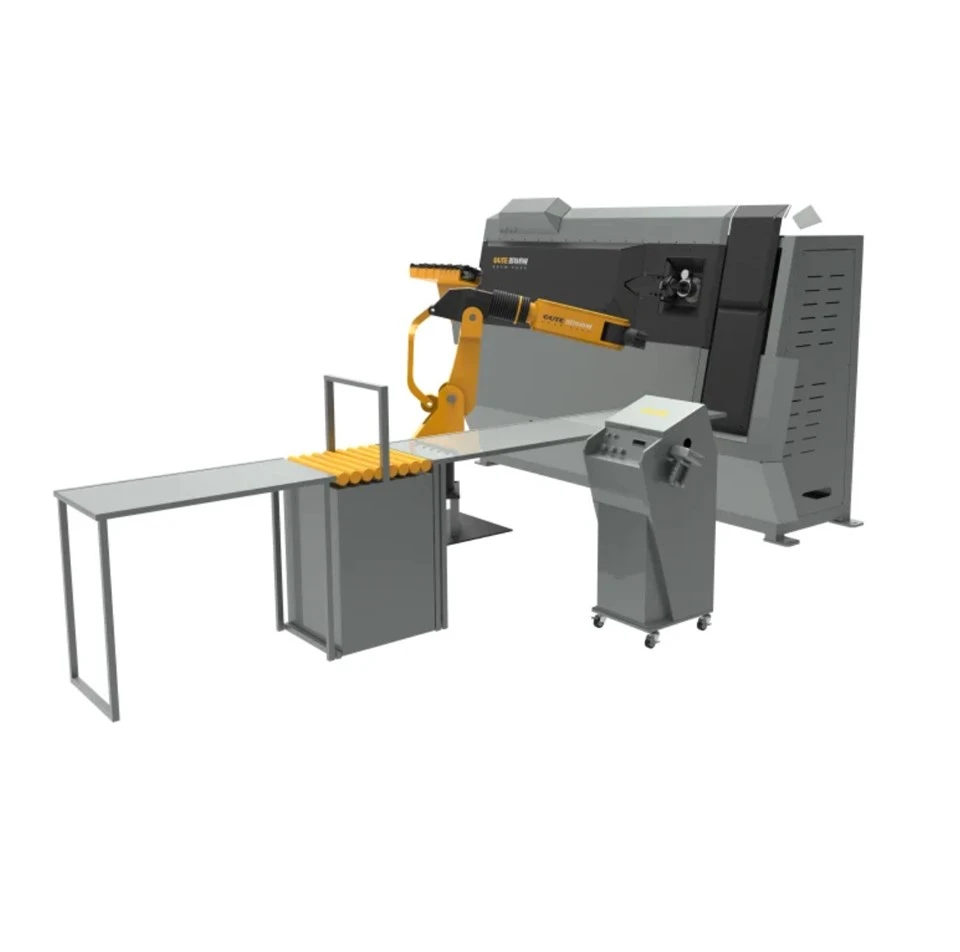

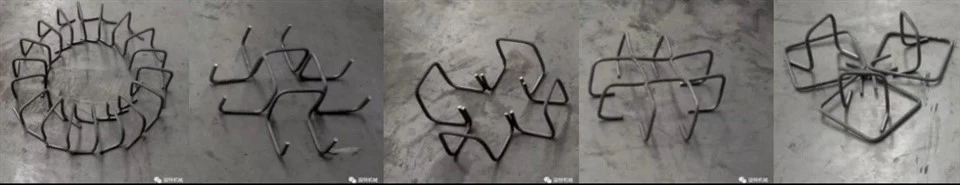

SGW12D-3D processes single steel coils from 5mm to 12mm, supporting full automatic feeding, straightening, bending and cutting via servo drives and 3D touchscreen control. This 3D CNC Wire Bender handles complex stirrups and reinforcement cages for building and prefabrication projects.
Specifications
|
|
TENSILE STRENGTH |
Kg/mm2 45 |
Kg/mm2 65 |
|
|
SINGLE WIRE BENDING |
5-12 mm |
5-10 mm |
|
|
DOUBLE WIRE BENDING |
N/A |
N/A |
|
|
OPERATION |
Automatic wire feeding system(CNC) |
|
|
|
MAX. BENDING ANGLE |
180° |
|
|
|
MAX. LENGTH OF STIRRUP SIDE |
1000 mm |
|
|
|
MIN. LENGTH OF STIRRUP SIDE |
90 mm |
|
|
|
MAX. BENDING SPEED |
800~1050°/sec |
|
|
|
MAX. TRACTION SPEED |
75-100 m/min |
|
|
|
BENDING DIRECTION |
Bi-direction |
|
|
|
TRACTION SERVICE MOTOR POWER |
22KW |
|
|
|
BENDING SERVICE MOTOR POWER |
7.5KW |
|
|
|
CUTTING MOTOR POWER |
4 KW |
|
|
|
TOTAL POWER |
33KW |
|
|
|
AERAGE ELECTRIC CONSUMPTION |
5 KW/H |
|
|
|
L×W×H |
3800×1000×1900 mm |
|
|
|
WEIGHT |
3.5T |
|
Why Choose This Unit
our products Advantages
1. moving parts adopt IKO bending bearings and EURA servo motors; reducers and air cylinders use Great Wall and AirTAC standard parts to cut frequent part replacement.

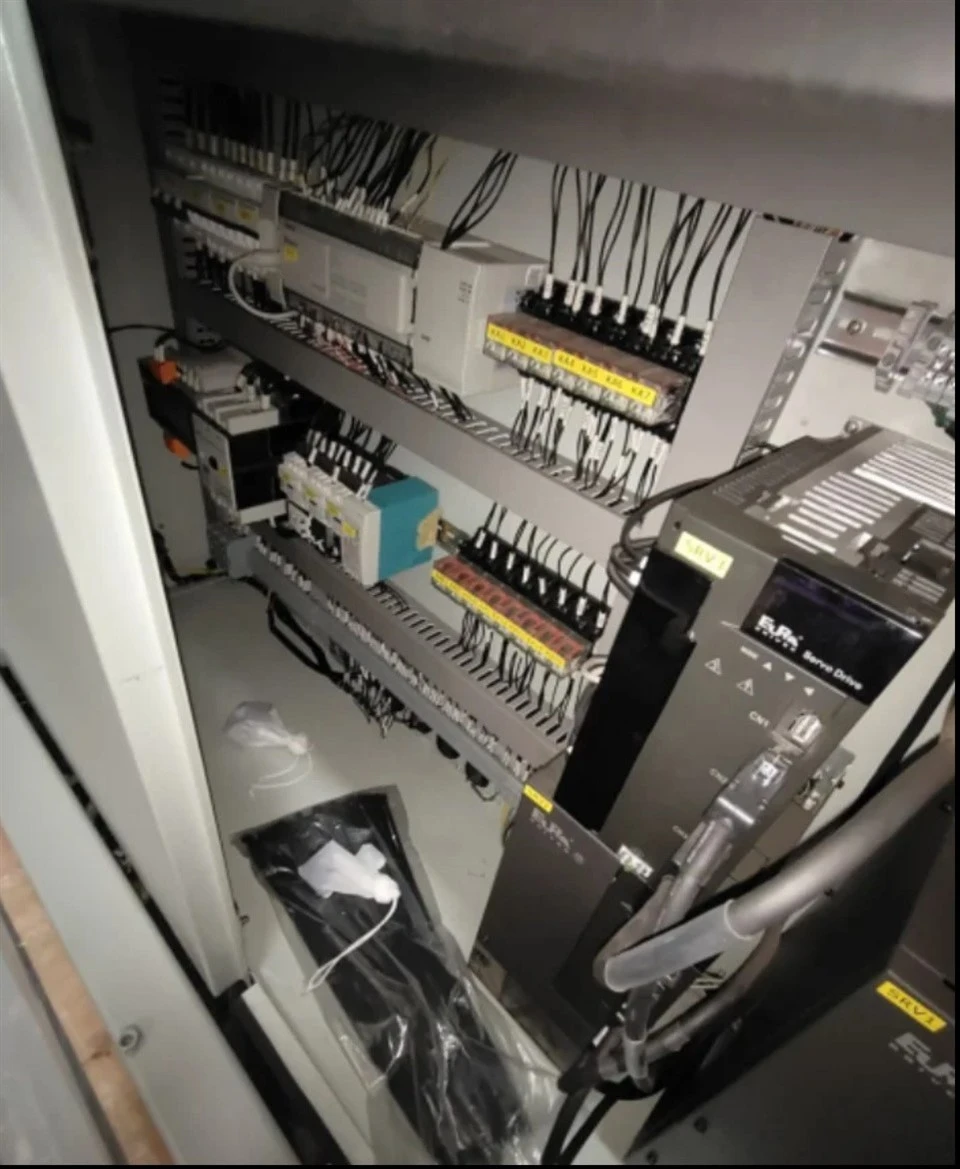

2. Electric system matches Schneider, Omron, Chint, Mean Well electric parts, Delta PLC and Kinco touch screens for daily continuous fabrication.
3. The touch panel carries 3D simulation preview and self-diagnosis functions, storing over 150 preset stirrup shapes with editable custom forming tracks.
4. Every unit passes 150,000 heavy load bending cycle tests before shipment, keeping length tolerance ±1mm and angle tolerance ±1°.
5. Standard supply includes 2 sets 2.5-ton wire pay-off racks, straightening/feeding/bending/cutting units, air compressor, control console, spare parts and operation manuals; auto material collection device is optional.
6. All units come with 1-year warranty. We supply test reports, outgoing inspection videos, remote support and overseas engineer onsite installation; machines support ISO 9001 and CE certification. Export steel frame or wooden crate packaging, lead time 30-40 working days.
SCOPE OF SUPPLY:
|
1 |
Wire pay-off (2.5 tons capacity) |
2 PCS |
||
|
2 |
Central machine |

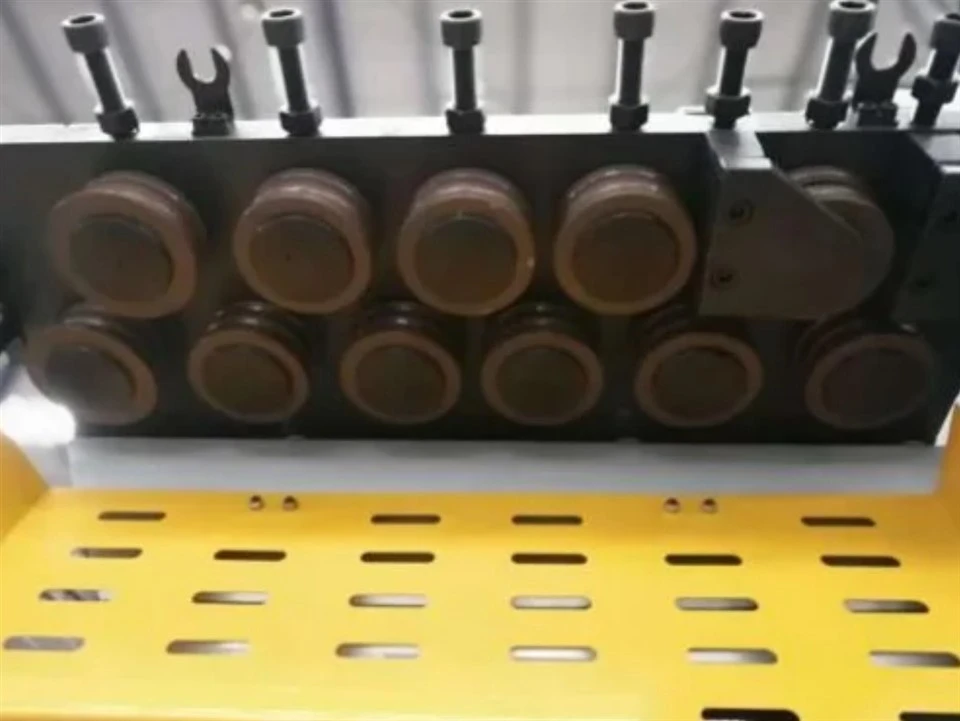

Wire straightening units |
2 UNITS |
|
|

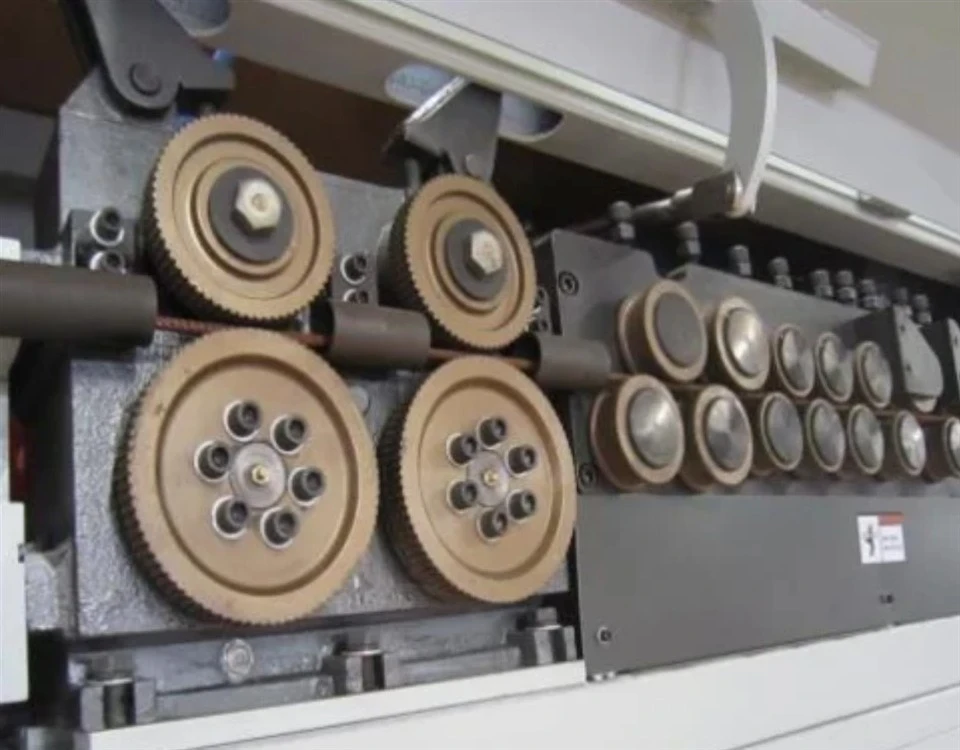

Wire feeding unit |
1 UNIT |
|||
|
Wire bending unit |
1 UNIT |
|||
|
Wire cutting unit |
1 UNIT |
|||
|
Electric cabinet |
1 UNIT |
|||
|
Air compressor |
1 UNIT |
|||
|
3 |
ontrol console |
1 UNIT |
||
|
4 |
Spare parts |
1 SET |
||
|
5 |
Tools |
1 SET |
||
|
6 |
User's guide |
1 SET |
||
|
7 |
Auto-material collection device (Choice) |
1 SET |
||
Optional Upgrades
- Extra automatic rebar decoiler
- Remote programming access
- Custom voltage: 220V/380V/415V, 50Hz/60Hz
- Dust-proof and anti-corrosion outer enclosure
FAQ
Q: How to confirm customized parameters and adjust quotations for additional changes?
A: All customized parameters and modification requirements will be recorded in an official technical confirmation sheet. Production is strictly executed according to confirmed parameters. Any extra requirements beyond the confirmed scope will be re-evaluated for quotation and delivery time with transparent charges.
Q: Are free accessories provided with complete machines?
A: Each complete machine is equipped with a full set of free standard accessories, including mandrels, molds, wear-resistant spare parts, air compressors and basic maintenance tools. No extra payment is required, supporting immediate operation and daily loss replacement.
Q: Is long-term original spare parts supply available?
A: We maintain sufficient stock of core original parts for all models, including servo motors, feeding rollers, bending molds, sensors and electrical modules. Customers can purchase factory-priced original parts at any time after purchase to ensure long-term stable equipment operation with 100% compatibility.
