Products Description

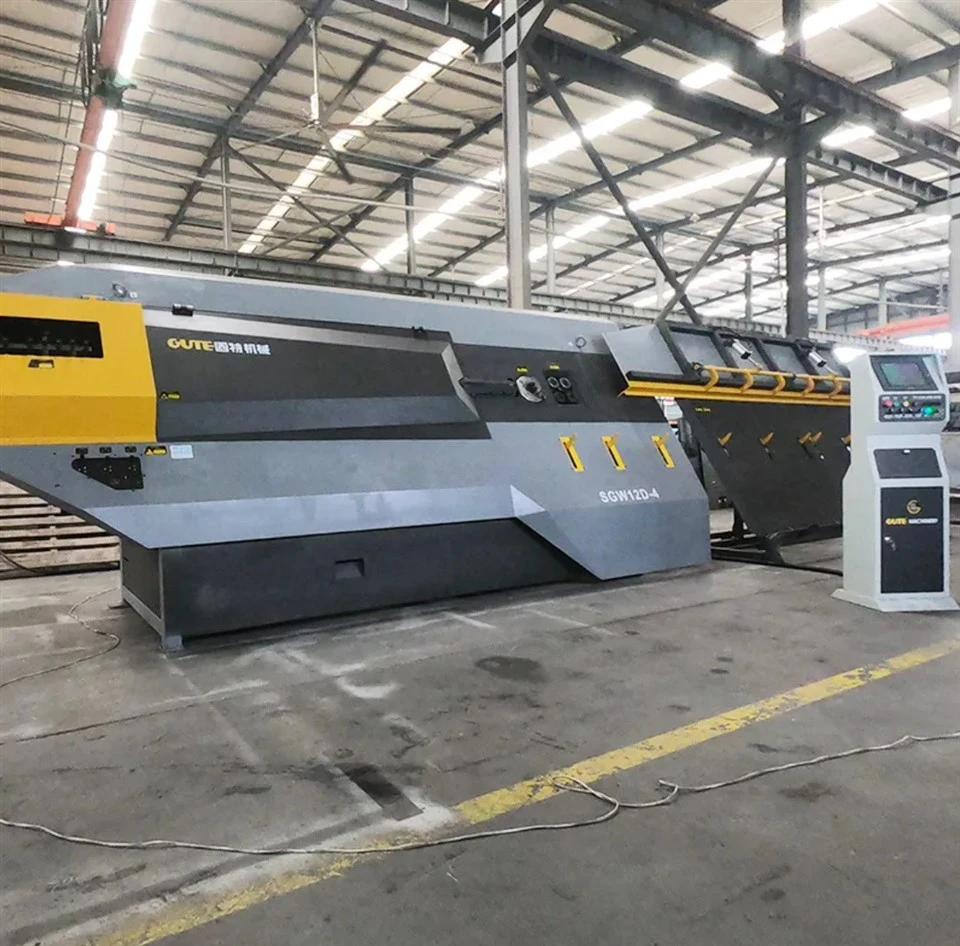

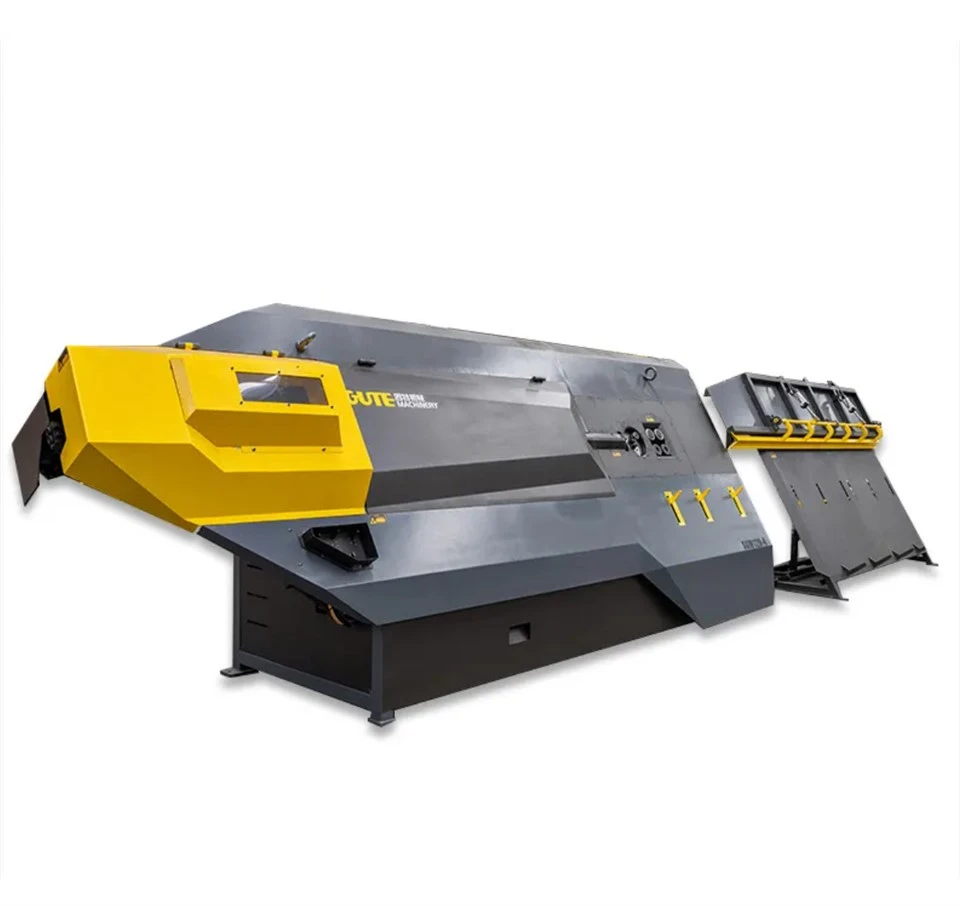

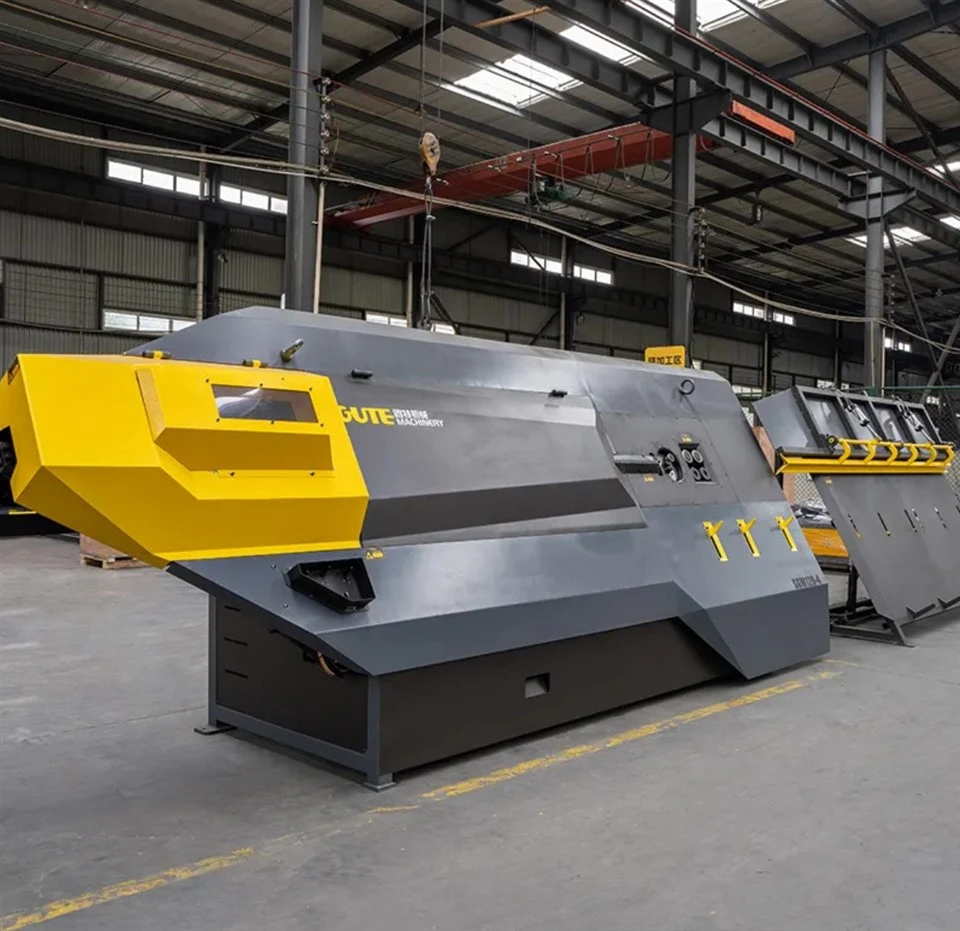

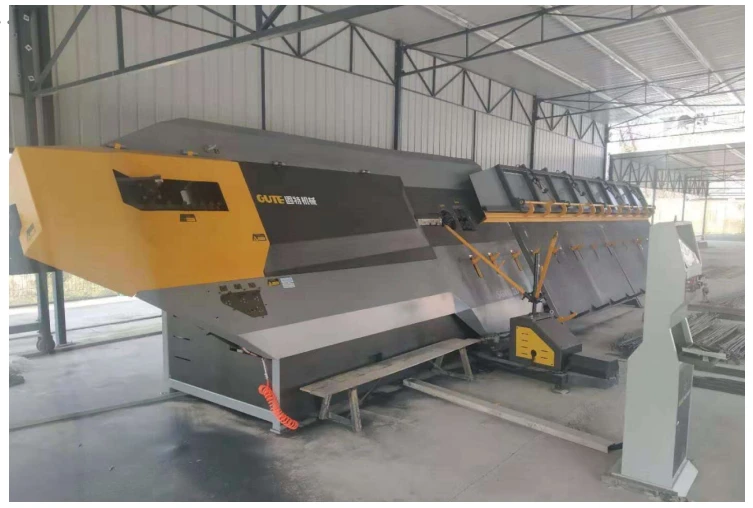

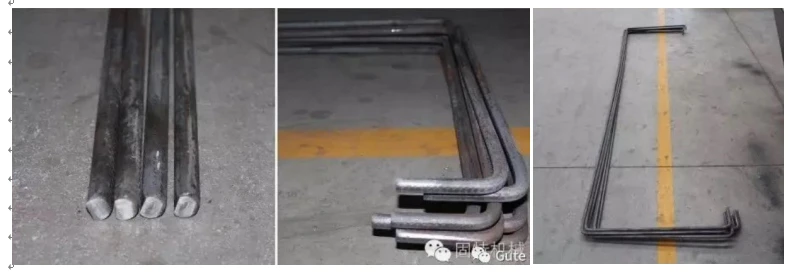

Model SGW12D-4 supports automatic wire feeding and collection to make stirrups, circular bars and hook fittings. It fits IKO bearings, AirTac pneumatic parts and Schneider & Omron electrical assemblies to run nonstop daily forming work. This Bidirectional CNC Stirrup Bender Machine handles 6–12mm single wire and 5–8mm double wire with 1600 stirrups output per hour, traction speed 75-100 m/min and bending speed up to 1050°/sec. It carries two detachable 2500kg pay-off racks and adjustable 9m straightening length with multi-language touch control panels.
Technical Specifications at a Glance
|
|
TENSILE STRENGTH |
Kg/mm2 45 |
Kg/mm2 65 |
|
|
SINGLE WIRE BENDING |
6-13 mm |
6-13 mm |
|
|
DOUBLE WIRE BENDING |
6-10 mm |
6-10 mm |
|
|
OPERATION |
Automatic wire feeding system(CNC) |
|
|
|
MAX. BENDING ANGLE |
180° |
|
|
|
MAX. LENGTH OF STIRRUP SIDE |
1000 mm |
|
|
|
MIN. LENGTH OF STIRRUP SIDE |
90 mm |
|
|
|
MAX. BENDING SPEED |
1050°/sec |
|
|
|
MAX. TRACTION SPEED |
75-100 m/min |
|
|
|
BENDING DIRECTION |
Bi-direction |
|
|
|
TRACTION SERVICE MOTOR POWER |
18KW |
|
|
|
BENDING SERVICE MOTOR POWER |
10KW |
|
|
|
CUTTING MOTOR POWER |
4 KW |
|
|
|
TOTAL POWER |
46KW |
|
|
|
AVERAGE ELECTRIC CONSUMPTION |
7 KW/H |
|
|
|
L×W×H |
11700×1900×2110 mm |
|
|
|
WEIGHT |
5.7T |
|
Main Components
|
NO |
Name |
Brand |
|
1 |
Electrical components |
Schneider, Omron, chint Taiwan Mean Well |
|
2 |
PLC |
Delta |
|
3 |
Air compressor |
Bakita (Chinese) |
|
4 |
Round frame |
Load 3.5 tons |
|
5 |
Cylinder and components |
AirTAC |
|
6 |
Bending bearing |
IKO |
|
7 |
Traction, bending |
Servo motor EURA |
|
8 |
touch screen |
Kinco |
|
9 |
Reducer |
Great Wall |
Why Choose SGW12D-4
| Advantages | Impacts |
| Plug-and-play design | Simplifies training & accelerates resale capital turnover. |
| OEM & white-label ready | Our machine panels support custom branding (MOQ: 1 unit). |
| Aftermarket support across 70+ countries | Builds confidence for your end users. |
| Siemens motor inside | Leverages Siemens brand trust for proven reliability & performance. |

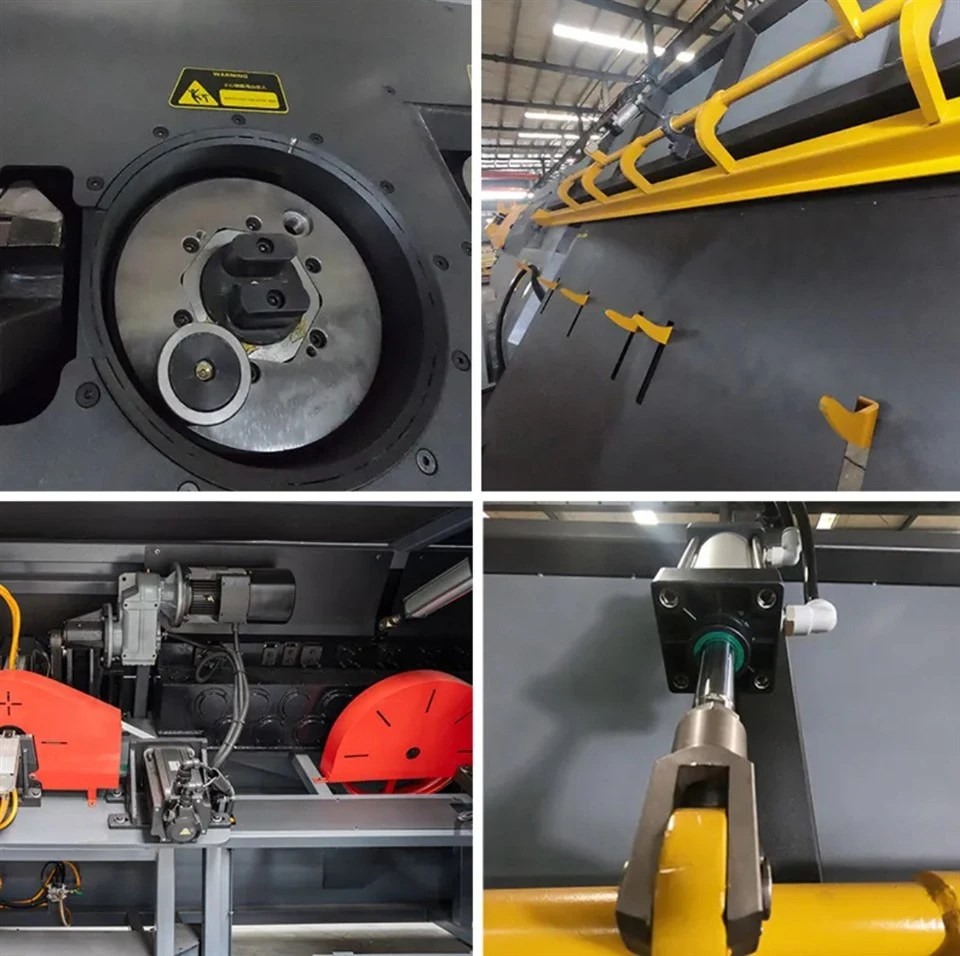

Product Details

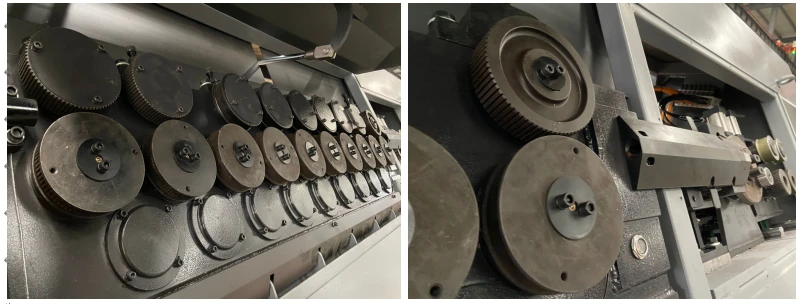

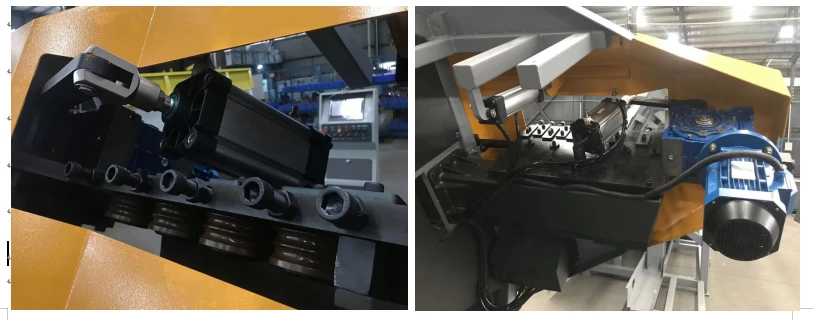

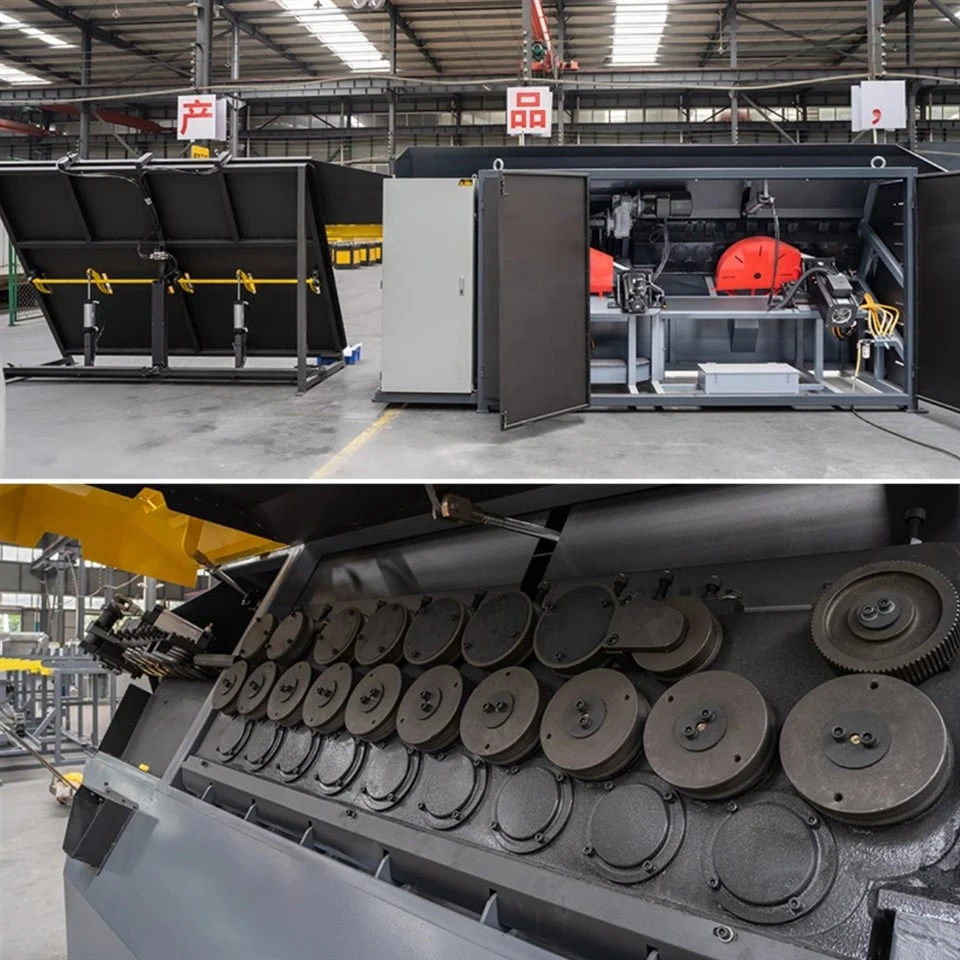

Straightening structure
High-quality straightening rollers-forged from alloy tool steel, offering exceptional wear and impact resistance.
Heavy-duty fixed roller plate-designed with a 30mm-thick steel plate to provide superior strength.
Independently driven straightening rollers-each roller features a dedicated drive system, ensuring a flawless, smooth finish on the rebar surface.

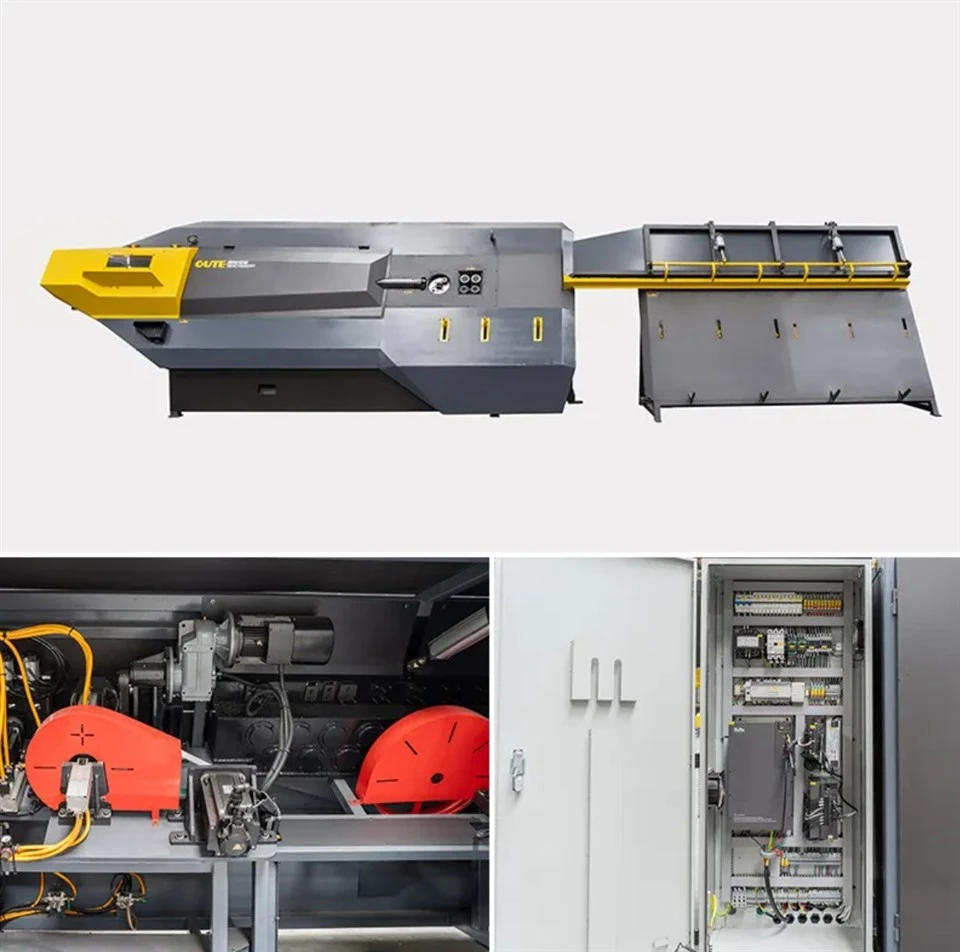

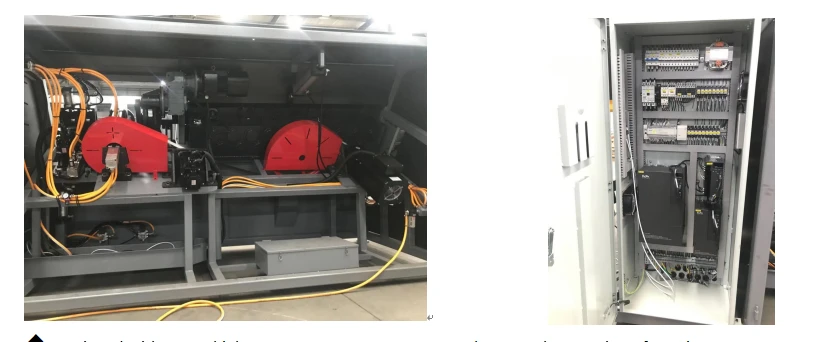

Electrical Cabinet

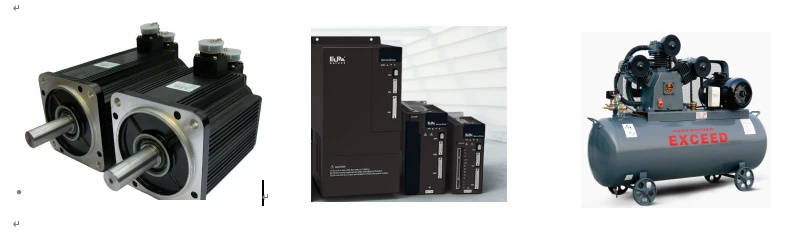

Servo Motor-Equipped with a high-power 24kW servo motor, eliminating downtime caused by insufficient power.
Pneumatic Components-Uses AirTAC, a renowned Taiwanese brand, for pneumatic components.
Blade-Features a 40mm ultra-thick split-blade design, facilitating easy maintenance and replacement.

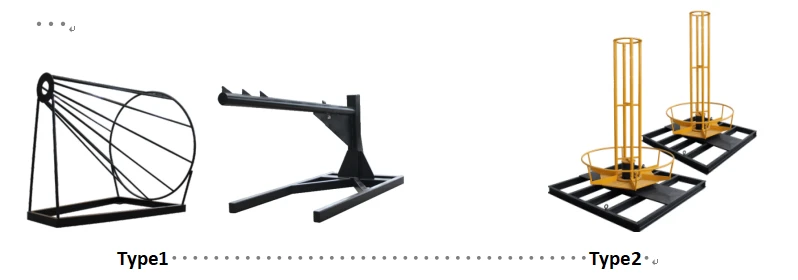

COMPONENT PARTS PAY-OFFS
●2 pay-off units per machine
●Each pay-off unit: Max carrying capacity 2,500 KG for steel bars
●Disassemblable & easy to transport
●Customizable with a brake (on request)

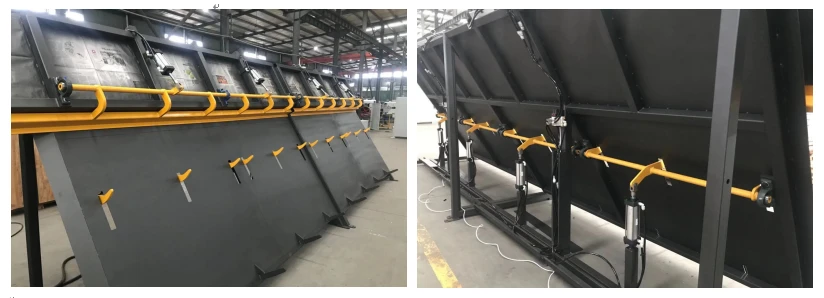

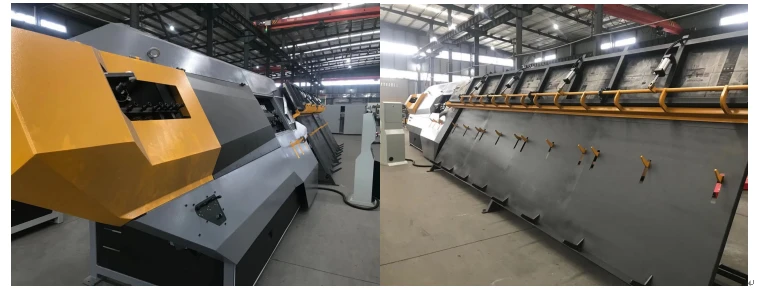

Receiving rack
It automatically feeds straight steel bars, with a maximum straightening length of 9m or customized lengths available.
Application
Small and medium rebar processing yards, precast stair and slab factories, residential construction sites, civil engineering projects and highway fence reinforcement workshops all select this Bidirectional CNC Stirrup Bender Machine for daily stirrup fabrication.
After-Sales Support
Every unit comes with 12-month full parts warranty; buyers can extend coverage by choosing Siemens servo motor assemblies.
Our technical team replies to remote equipment faults within 24 hours, with replacement spare parts stored in warehouses of Canada, UAE and Malaysia for quick shipment.
We provide complete operation video guides and free live online training to guide field installation and parameter setup.
One full set fits into a single 40ft HQ container, and we offer DDP delivery services covering more than 70 countries globally.
Before shipment, each machine undergoes a 4-hour continuous running test, ±1mm bending accuracy calibration and noise inspection controlled below 72dB. Full test videos and inspection reports will be delivered together with orders, with CE and ISO 9001:2015 certifications available.
Our production plant locates in Chengdu, covering 30,000 m² with an annual output of over 6000 bending machines.
FAQ Snippet
Q: How long does it take to install and run the CNC stirrup bending machine?
A: With video guidance, setup takes under 2 hours for trained operators.
Q: Can it process stainless or galvanized wire?
A: Yes, with tool changeover - contact for supported wire types.
