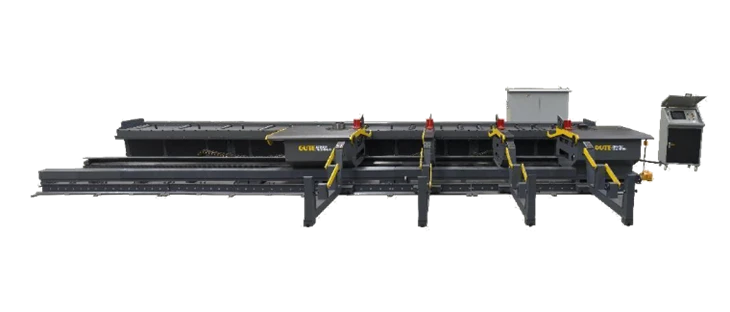

Product Overview
We sized this machine for #3 through #11 stock. The dual heads-one fixed, one moving-let us hit both ends of a bar in one pass. With the Siemens controls and that 20m/min feed rate, it keeps the pile moving without needing a guy to babysit it.
Technical Specifications
| Feature | Specification |
| Usage | Rebar / Steel bar bending |
| Bending Diameter Range | #3 - #11 (5mm - 40mm) |
| Voltage | 220V – 415V (50Hz / 60Hz) |
| Feeding Speed | 20 m/min |
| Bending Speed | 50–60°/sec |
| Working Pressure | 0.8 Mpa |
| Total Power | 45 kW |
| Actual Power Consumption | 15 kWh |
| Weight | 3,300 kg |
| Machine Size | 3800 × 1000 × 1900 mm |
| Package Size | 1600 × 450 × 1600 cm |
| Gross Weight | 7,800 kg |
| Core Components | Siemens inverter, Jaguar servo, KACON sensors, SUNON fans |
| Enclosure Type | Indoor use only |
| Warranty | 1 Year |
| Brand | GUTE |
| Place of Origin | Sichuan, China |
Products Advantages
• Consistent Bends: Because the heads ride on a solid modular rail, your lengths and angles stay true across the whole bundle. You're not wasting time fixing parts that don't match.
• Stays Quiet, Lasts Long: We put Festo pneumatics and SKF or NSK bearings in there for a reason. It runs quieter than most, and it doesn't fall apart when you're pushing 40mm bar all shift.
• Ready to Plug In: Every machine gets tested and tagged by CSA or UL, so your electrician won't give you a hard time during setup. Plus, we include the full set of North American R-molds-from R17.5 up to R270-so you can switch jobs without hunting for tooling.
Typical Applications
Mostly used for large U-hooks, heavy stirrups, and those tricky shapes that usually jam up smaller machines. It'll handle arcs up to 304mm, making it a good fit for structural yards and big civil sites where volume is king.
FAQ
Q: What international trade terms can be adopted?
A: We support multiple international trade terms including EXW, FOB, CIF and DDP. Flexible settlement and logistics modes adapt to global export orders and different customer cooperation habits.
Q: How about your overseas logistics and forwarder resources?
A: We have long-term cooperation with professional forwarders rich in machinery shipping experience for Australia, New Zealand and Europe. The logistics channels are stable and efficient. We can provide full forwarder contact information for direct customer docking and real-time shipment tracking.
Q: How to get an accurate sea freight quotation?
A: Please provide the destination port and shipping method (FCL/LCL), and we will calculate the real-time accurate sea freight with no hidden charges.
