Products Description

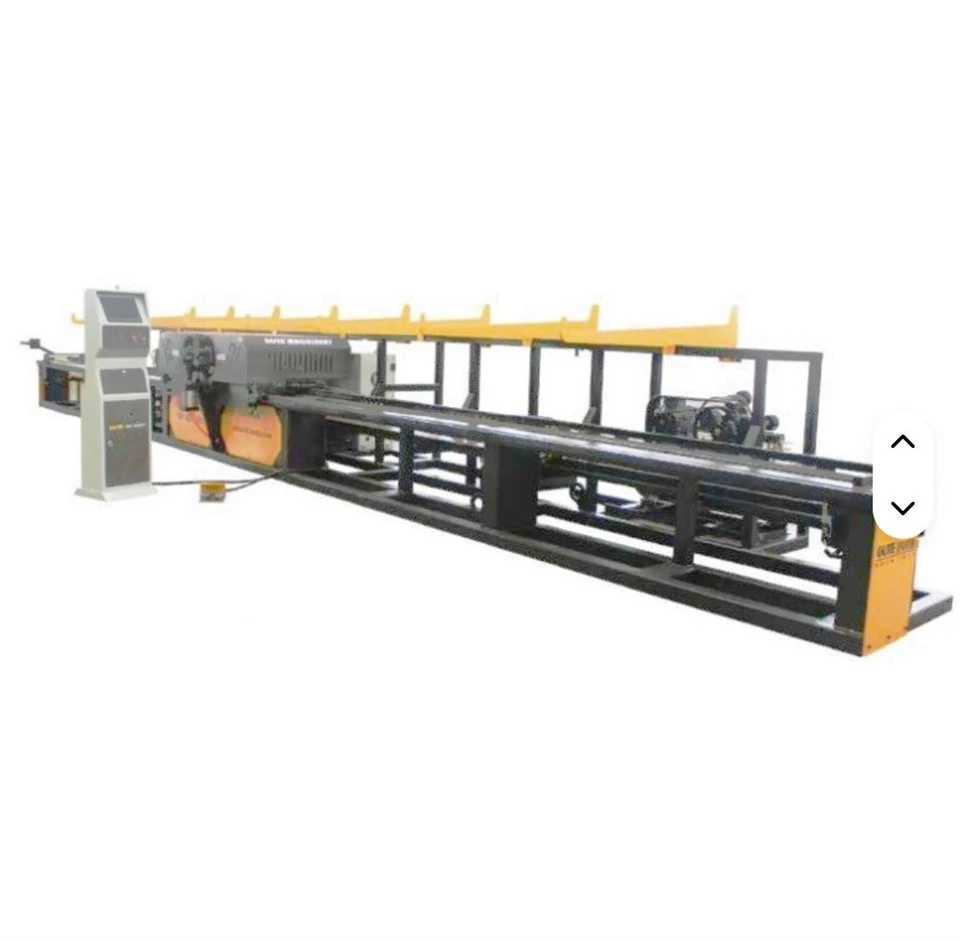

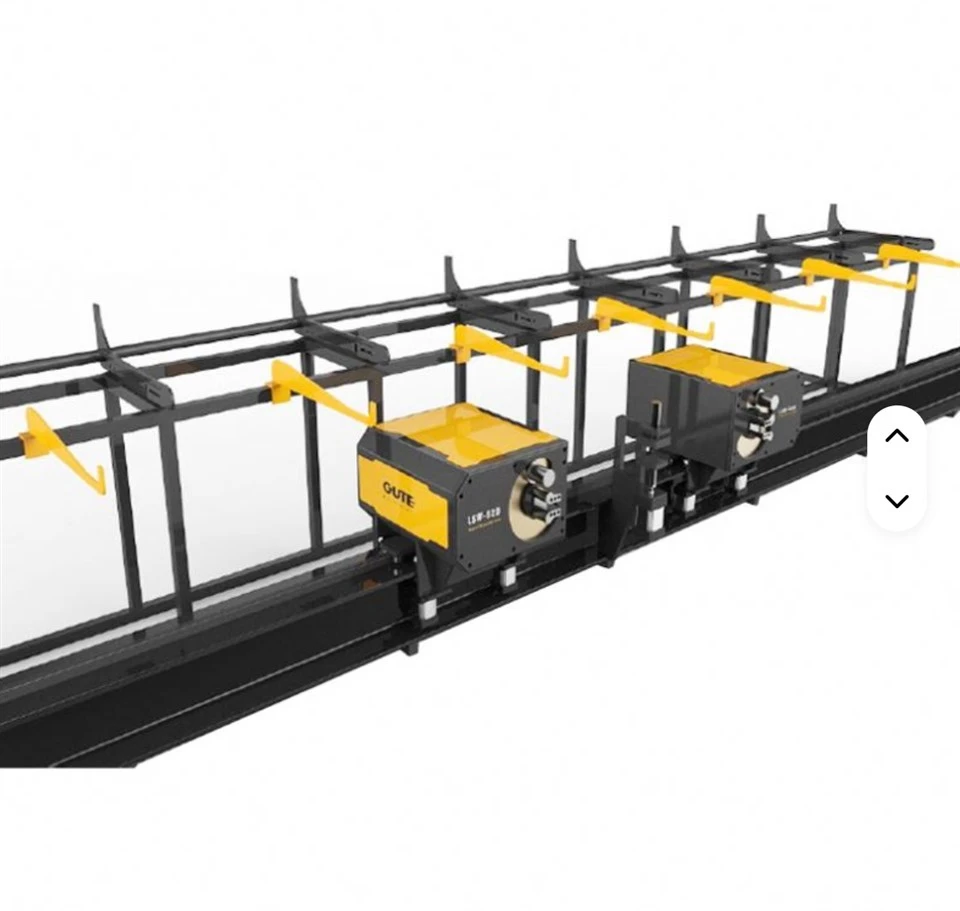

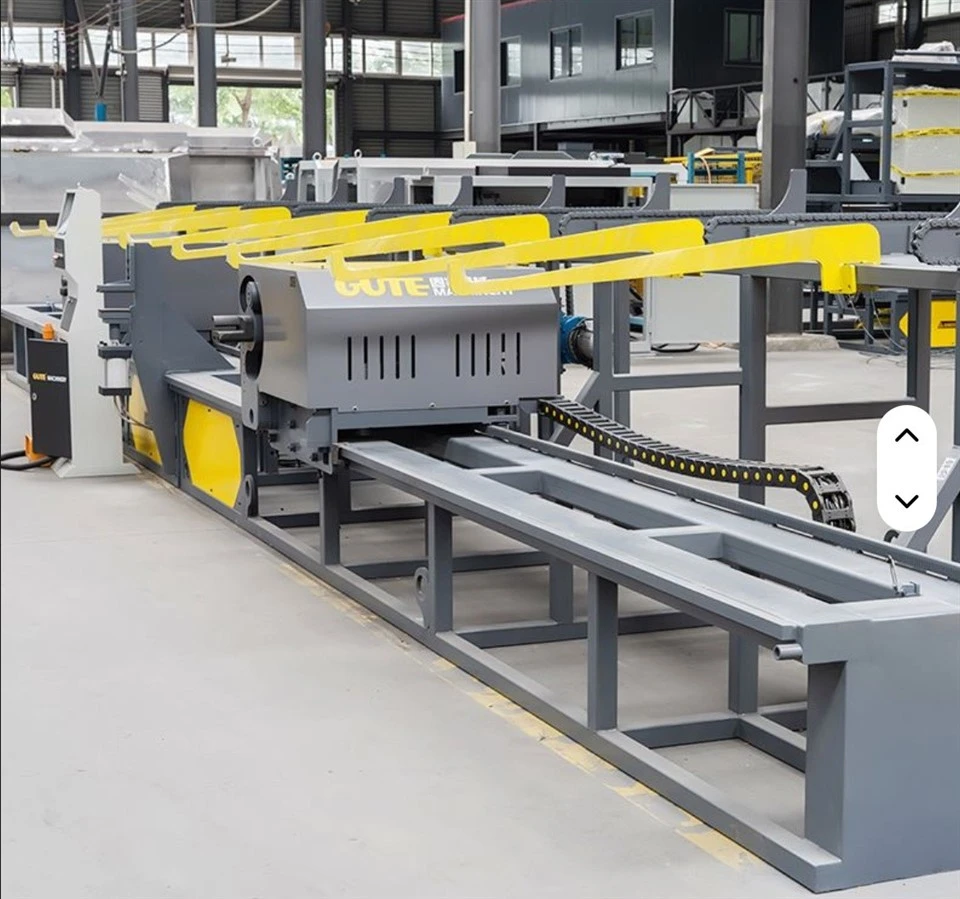

This CNC Vertical Bar Bending Center (LSW-32B) is a vertical automatic rebar processing machine, tailored for bending straight steel bars with diameters ranging from 5mm to 32mm. It supports diversified bending forming work and reduces manual dependence during construction rebar fabrication.
Technical Specifications
| Feature | Value |
| Processed Materials | Carbon Steel, Stainless Steel |
| Rated Power | 18 kW |
| Max. Bending Speed | 72°/sec |
| Max. Stirrup Side Length | 10.8 meters |
| Min. Margin Spacing | 390 mm |
| Air Pressure Bending Angle | ±180° (±≤90° under ±180° condition) |
| Average Electric Consumption | 5 kWh |
| Dimensions (L×W×H) | 12 × 2 × 1.6 meters |
| Machine Weight | 4,000 kg |
| Warranty | 2 Years |
| Brand | GUTE |
| Origin | Sichuan, China |
| Core Components | Industrial Motor |
| Certifications | Internal test report + CE-compatible design |
Rebar Diameter & Bending Capacity
| Steel diameter | 10 | 12 | 14 | 16 | 20 | 22 | 25 | 28 | 32 | ||||||||||
| Number of bends | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 1 | 1 | ||||||||||
Advantages
1. Strong forming versatility. The machine produces horseshoe shapes, large stirrups and heavy-duty hooks, covering most custom rebar forming requirements on construction sites.
2. Reliable high-precision bending. Servo-driven walking and bending motion, combined with Delta DVP series PLC system, delivers consistent angle accuracy during repeated batch processing. The 40mm thickened split blade further stabilizes long-term forming quality.
3. Heavy-duty durable structure. The full steel welded body maintains high rigidity and protects internal thread structure. Forged steel gears, together with matched reducer, sprocket and chain sets, ensure smooth automatic feeding and stand up to heavy continuous workloads.
4. Stable and safe operation. Adopts Taiwan Airtac pneumatic components for long service life. Fully enclosed box structure improves onsite safety, while the touchscreen centralized control makes program setting and equipment monitoring straightforward.
5. Labor-saving automatic workflow. Equipped with dedicated feeding and blocking hook devices, the machine finishes automatic steel bar feeding steadily, lowering labor intensity and improving overall output for both small-batch and mass production.
6. Space-efficient vertical layout. The upright structure saves workshop floor space. This CNC Vertical Bar Bending Center supports ±180° flexible bending and runs with low energy consumption, ideal for long-term industrial rebar processing.
Application Areas
It is widely used in infrastructure and building projects including highways, bridges, railways, ports and high-rise buildings. The machine serves professional steel fabricators and large construction teams that require precise, stable and automated rebar bending solutions.
Component Quality You Can Trust
| Component | Brand / Specification |
|---|---|
| PLC | Delta DVP-64EH00T3 |
| Servo Motors | EURA SMMA / SMMB series |
| Reducer | Great Wall |
| Cylinders & Valves | Airtac (Taiwan) |
| Bearings | LYC / HRB |
| Touchscreen | Kinco MT4532T |
| Relay | Omron MY2NGS-DC24V |
| Power Supply | Mean Well ELG-150-24A |
| Transformer | Chnt NDK(BK)-500 |
| Proximity Switch | Feiling FA12-4DA |
Quality & Assurance
| Item | Status |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Available |
| Warranty | 2 Years |
| After-Sales Support | Remote and overseas service supported |
| Certification | CE-compatible design (optional) |
Packaging & Delivery
| Detail | Specification |
| Selling Unit | One machine |
| Package Size | 1200 × 200 × 150 cm |
| Gross Weight | 4,000 kg |
| Lead Time | 30–60 working days (based on configuration) |
| Shipping Terms | FOB / CIF / CFR available |
