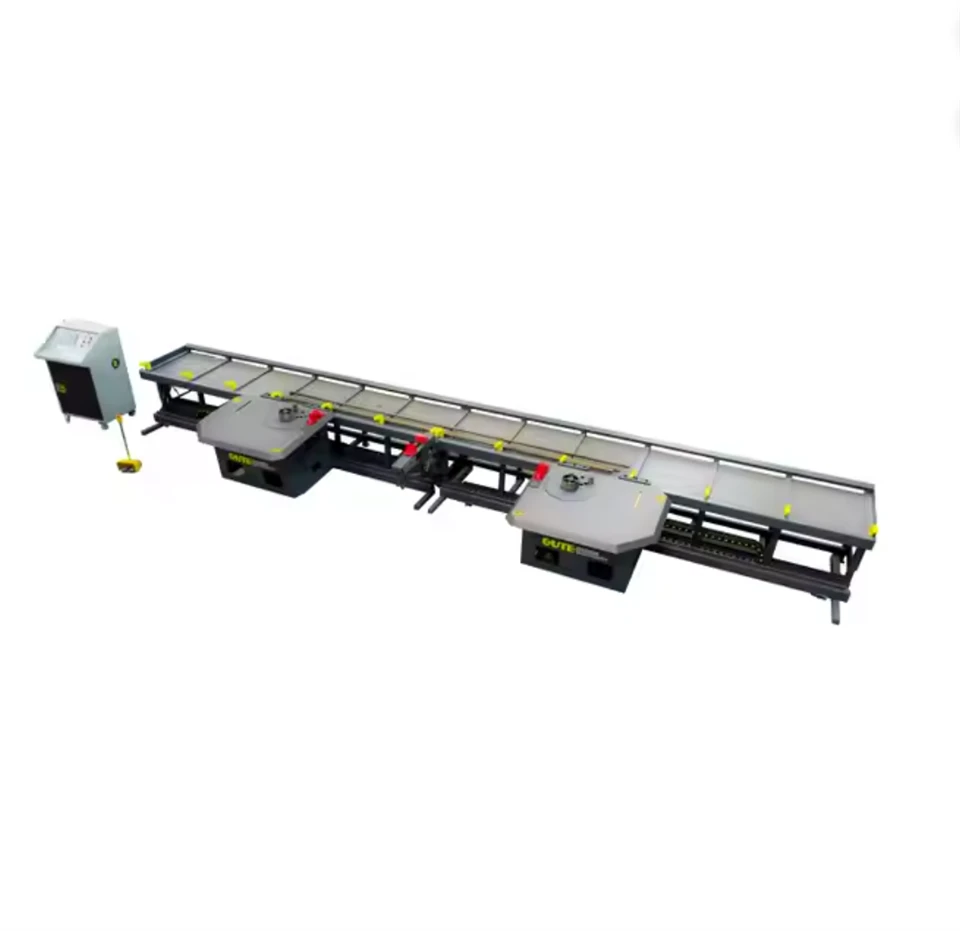

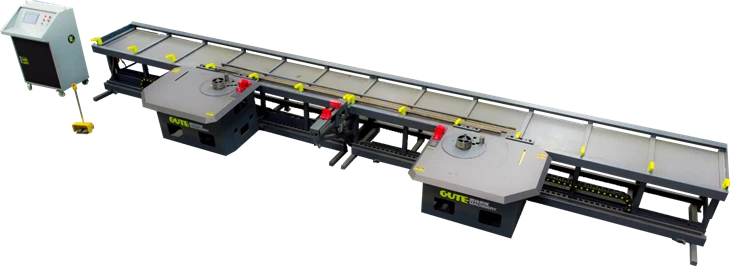

Products Description
This CNC Horizontal Rebar Bending Machine model WS36 processes long and complex shaped steel bars for construction steel fabrication. The unit handles single-step forming for long rebars with bending speed kept between 45 and 60 degrees per second.
Technical Specifications
| Feature | Value |
| Usage | Rebar / Steel bar |
|
Steel processing length
|
9m |
| Maximum Bending Speed | 74°/sec |
| Bending Angle | Forward 0–180°, Reverse 0–160° |
|
Shortest bending edge size for double-head bending
|
≥1.3M
|
|
Shortest bending edge size for single-head bending
|
≥500MM
|
|
Maximum bending edge spacing
|
7.5M
|
| Voltage | 220V–415V (50Hz / 60Hz) |
| Installed Power | 17 kW |
| Dimensions (L×W×H) | 10m × 3 m × 1.2 m |
| Weight | 3.6 tons |
| Certification | ISO 9001:2008, CE |
| Warranty | 1 Year |
| Brand | GUTE |
| Place of Origin | Sichuan, China |
Features
1. CNC program sets bending direction, cutting length and bending angle automatically for each batch of steel bars.
2. Single pass bending works for bars up to 11 meters, no secondary repositioning of raw materials needed.
3. Two-way bending mode produces multiple bend shapes within one processing cycle, with bending radius covering 120 mm to 340 mm.
4. Small overall footprint fits factories with limited workshop space while sustaining large daily bending output.
5. PLC operation panel supports multiple languages and real-time equipment fault check, easy for single worker to operate alone.
6. Special forming molds simplify bar loading and unloading. Users install assorted arc molds on the machine as project demands change.

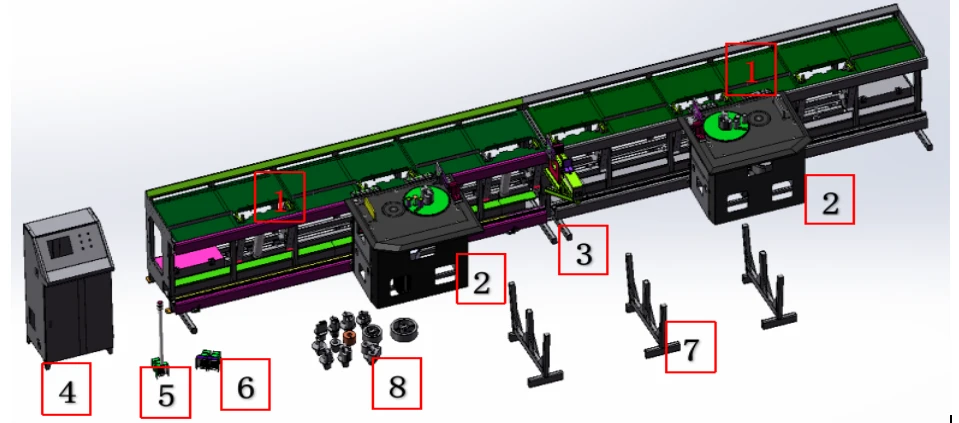

machine exploded
1
2
Bending head assemblies (left and right)
3
Middle steel bar clamping assembly
4

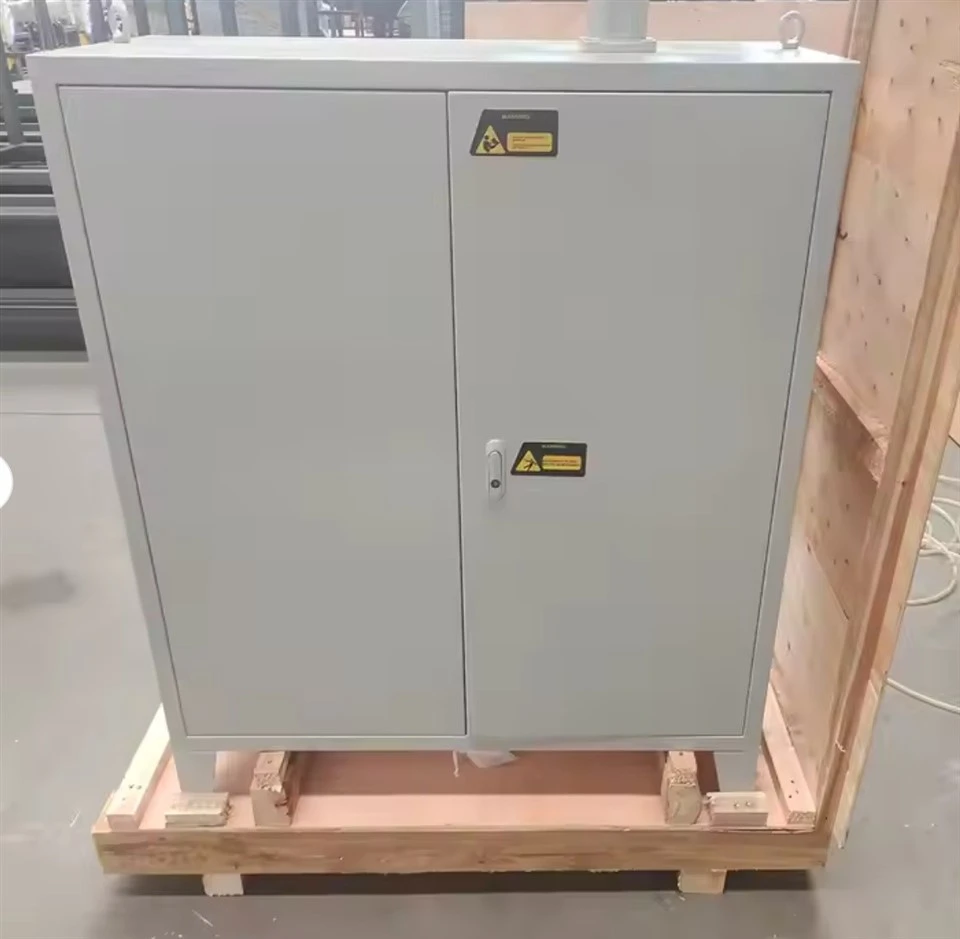

Integrated electrical control cabinet assembly
1
Rod-type foot switch assembly
2
Rodless foot switch assembly
3
Material storage rack assembly
4
Typical Applications
Rebar prefabrication inside precast component factories
Steel shaping works for tunnels, subways and bridge projects
Mass steel bar processing on large construction sites
Independent steel fabrication workshops producing custom long-size rebar parts
Quality & Assurance
| Item | Status |
| Machinery Test Report | Provided |
| Video Inspection | Provided |
| Certifications | ISO 9001:2008, CE |
| Warranty | 1 Year |
| After-Sales Service | Online support and overseas assistance available |
Packaging & Delivery
| Item | Detail |
| Selling Unit | One complete set |
| Package Size | 1000 × 300 × 120 cm |
| Gross Weight | 3,600kg |
| Delivery Time | 30–60 working days |
| Shipping Terms | FOB / CIF / CFR (worldwide delivery) |
site layout
FAQ
Q: How to get an accurate sea freight quotation?
A: Please provide the destination port and shipping method (FCL/LCL), and we will calculate the real-time accurate sea freight with no hidden charges.
Q: Can customers track the whole production process?
A: We provide one-stop whole-process order follow-up. Real-time production photos and videos will be updated from production, assembly and inspection to packaging and delivery, making the whole procurement process transparent and traceable.
Q: Is installation guidance provided after goods arrival?
A: We provide free remote installation guidance, commissioning and operation training after equipment arrival. Professional technical support helps customers complete installation and debugging quickly. We also support personalized customized procurement solutions for special project demands.
