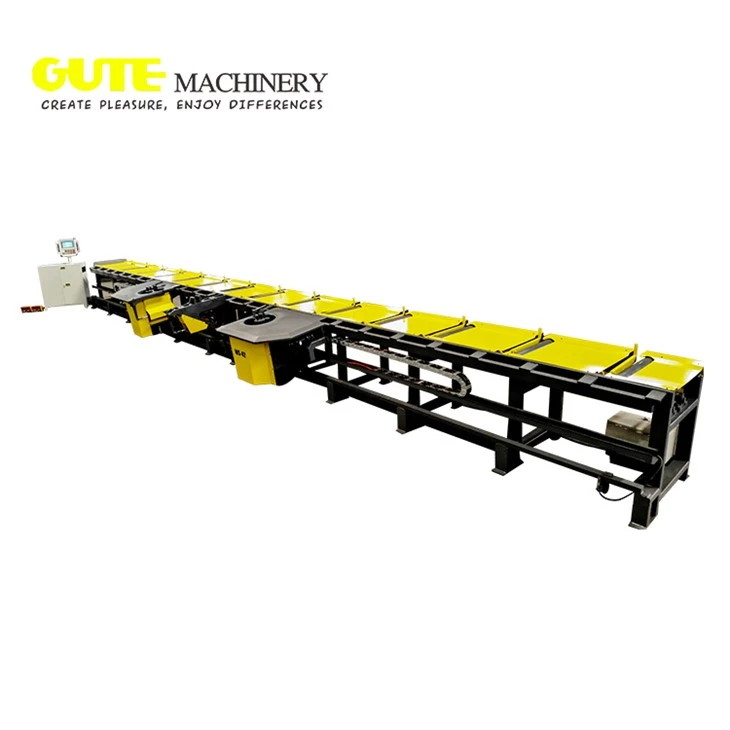

WS42 Horizontal Steel Bar Bending Center – Precision Control for Extra-Long Rebar Bending
Technical Specifications
| Model | WS42 | |||||||||
| Processing diameter | Φ12-40mm | |||||||||
| Bending speed | 45-60°/s | |||||||||
| Moving speed | 0.5-0.9m/s | |||||||||
| Bending angle | Forward bend 0-180° | |||||||||
| Reverse bend 0-120° | ||||||||||
| Installed power | 27Kw | |||||||||
| Max conveying roller support | 1000Kg | |||||||||
| shortest bending length | 950mm | |||||||||
| longest bending length | 11000mm | |||||||||
| L*W*H | 12.8mx3mx1.1m | |||||||||
| Weight | 6.5t | |||||||||
| Bending capacity | ||||||||||
| Dia Φ | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 40 |
| Pcs | 6 | 5 | 5 | 4 | 3 | 3 | 2 | 1 | 1 | 1 |
Features
Applications

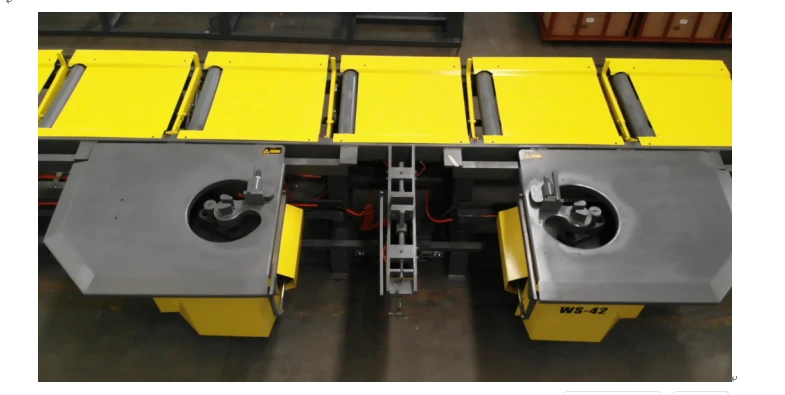

Product details display

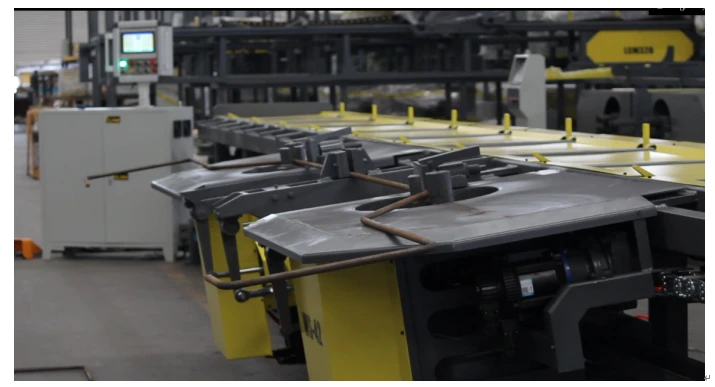

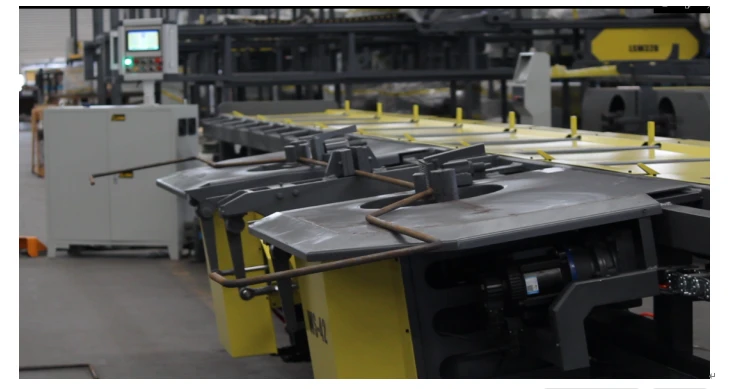

Automatic unloading hooks are installed on both left and right bending heads and grippers, enabling automatic ejection of long finished rebars after forming.

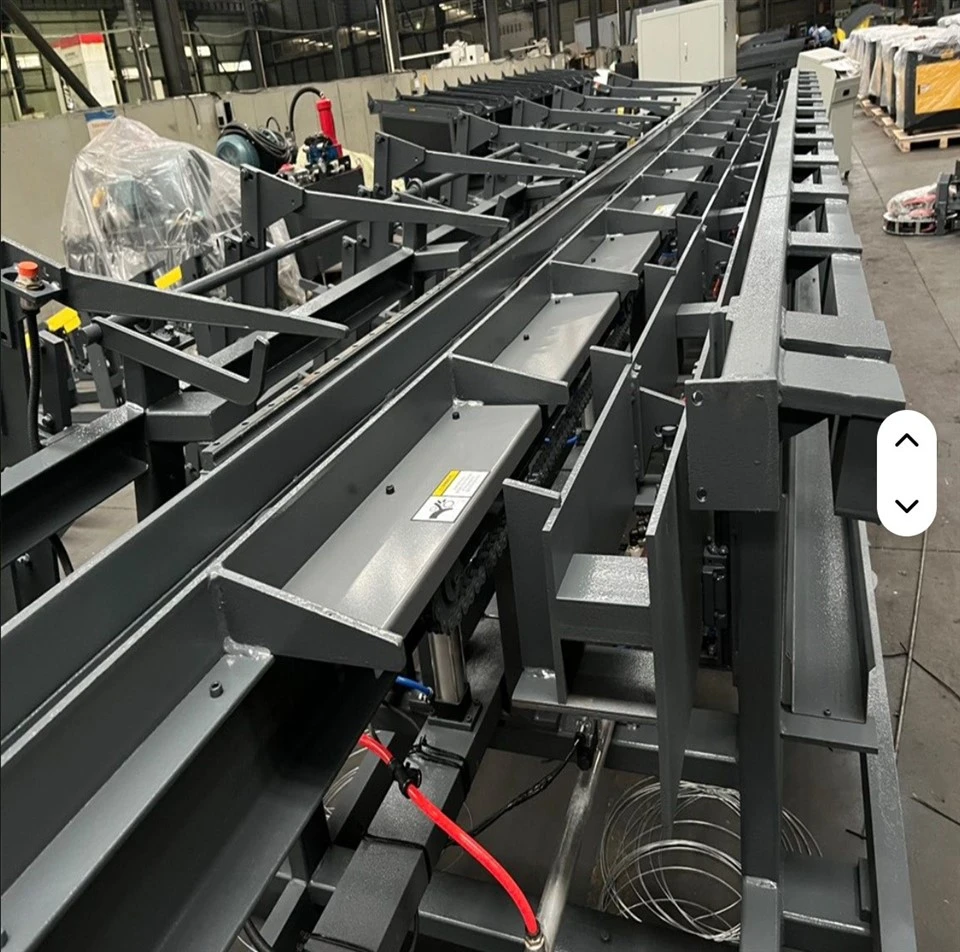

The bending head traverse unit uses a heavy-duty thickened rack paired with robust base frames, which greatly improves traverse positioning accuracy and operational stability.
A double-acting hydraulic cylinder enables synchronous clamping on both left and right sides during rebar feeding.

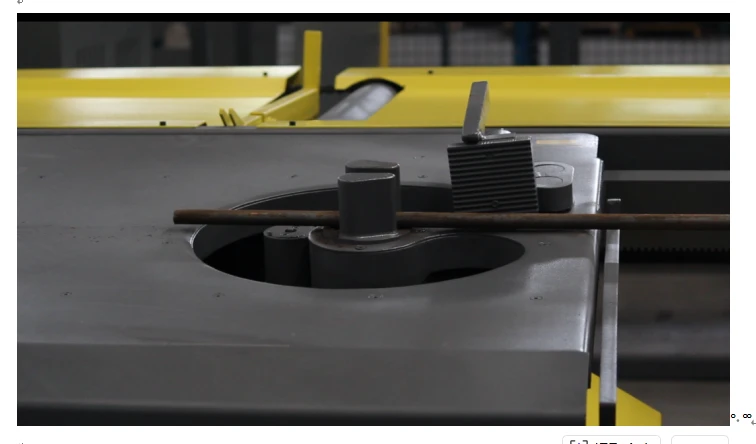

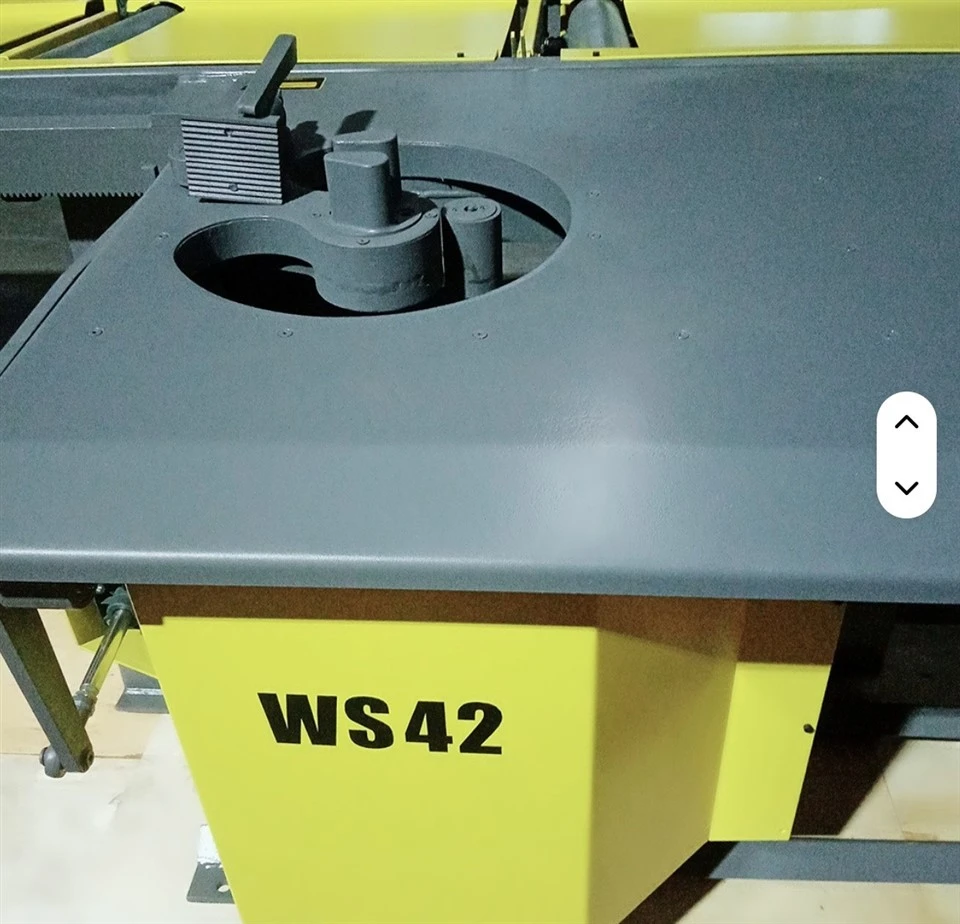

The bending center's head features an inclined mounting design, facilitating the loading and unloading of steel bars.
Quality & Compliance
| Item | Detail |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Available |
| Certifications | CE, ISO 9001:2008 |
| Warranty | 1 Year full machine warranty |
| After-sales Support | Remote support and overseas technical service available |
Packaging & Delivery
| Detail | Specification |
| Package Type | Steel frame or export-grade crate |
| Package Size | 1280 × 300 × 110 cm |
| Gross Weight | 6,500 kg |
| Delivery Time | 30-60 working days based on configuration |
| Shipping Terms | FOB / CIF / CFR available worldwide |
FAQ
Q: Can the equipment be customized and modified? What customization services are available?
A: We support full-dimensional customized modification for steel bar processing equipment. As a professional manufacturer, we can adjust and upgrade the equipment according to local power grid standards, construction specifications and actual site requirements of different countries and regions, realizing personalized configuration for various engineering scenarios.
Q: Can equipment operating functions be optimized and adjusted?
A: We support adjustable feeding speed, bending angle range and material rack load capacity. For high-strength steel bars such as D500N and G500E, exclusive protective devices can be installed to improve equipment durability and construction safety for high-strength processing scenarios.
Q: How to confirm customized parameters and adjust quotations for additional changes?
A: All customized parameters and modification requirements will be recorded in an official technical confirmation sheet. Production is strictly executed according to confirmed parameters. Any extra requirements beyond the confirmed scope will be re-evaluated for quotation and delivery time with transparent charges.
