Material: Cast Iron
Original: China
Bar cutting machine GQ40 all Gear was made by Cast Iron, double service life than regular type steel bar cutter, all gear have 1 year warranty.

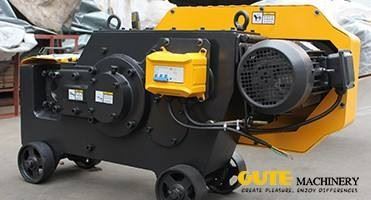

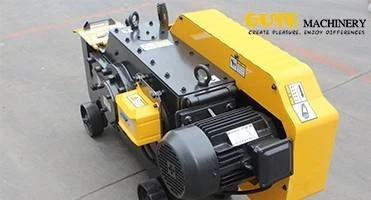

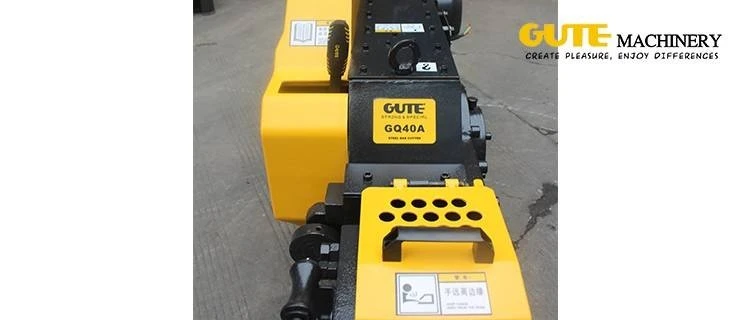

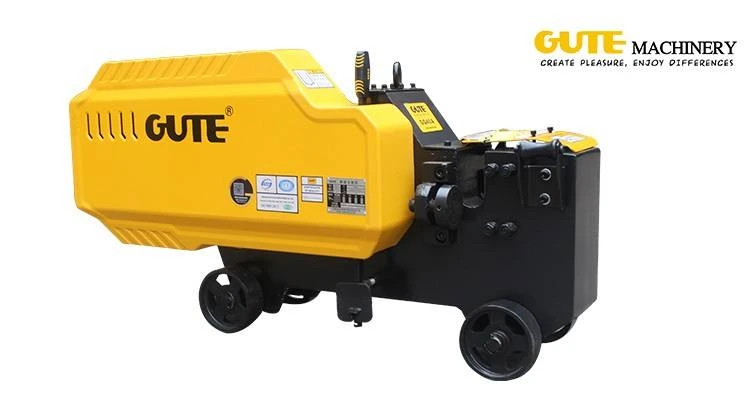

GQ40A Rebar Cutting Machine-------- CE Certification,High-Quality & 6-36mm
Products Description
Our GQ40A rebar cutting machine complies with EU safety rules for all kinds of steel processing yards. It cuts round, square and deformed rebar of varied tensile strength, and holds consistent output when processing bars in large batches every day.
technical parameter
|
Rebar Cutter GQ 40A Technical Parameters
|
|||
|
Cutting Capacity
|
6-36 mm (intensity≤450N/mm²)
|
Flat Steel Cutting
|
32*32mm
|
|
Motor Type
|
Y100L-2
|
Motor Power
|
3KW-2P
|
|
Motor Rotation Speed
|
2880 r/min
|
Continuous Cutting Times
|
32 n/min
|
|
Noise
|
≤80 db(A)
|
Oil Volume
|
7L
|
|
Machine Size
|
1280*460*700 mm
|
Wheight
|
400 KG
|
|
Blade Size
|
83*83*26 mm
|
Angle Belt Type
|
1600B
|
Selling Points
The whole unit is built with solid cast housing. With standard operation, the frame stays intact for years and we provide reliable after-sales support for frame failure issues.
Core internal components are made of polymer fiber. The material resists abrasion and insulates electricity, lowering part replacement frequency on site.
This unit carries a reputable brand 3KW motor and removable wheels. Crews can shift the machine freely between separate processing areas or outdoor job lots.
Detailed information
Gear Box
Connection Rod
Material: C45 (forged steel )
Rebar Cutter use durable C45 steel with ergonomics design, easy to handle by single worker, protect worker form accident injure.
Durable Blade
Material: C45 (forged steel)
Steel cutting machine has T10 (tool steel) made blade, double service life with protect shell, always keep the worker in safe working condition.
High Quality Motor
Type: Y100L-2
Bar cutting machine use Top 10 Chinese brand motor, voltage switchable from 220-440V or 220-380V, coming with 1 year warranty.
Production line
Packaging & Logistics
| Item | Detail |
| Packaging | Single unit, export wooden crate or steel frame |
| Shipping Time | 30 working days |
| Delivery Terms | FOB/CIF/DDP available worldwide |
Quality & Assurance
| Item | Status |
| Test Report | Provided |
| Video Inspection | Available |
| Warranty | 1 Year |
| Core Components | Industrial-grade Motor |
| Brand | GUTE |
| Origin | Sichuan, China |
FAQ
Q: Are free accessories provided with complete machines?
A: Each complete machine is equipped with a full set of free standard accessories, including mandrels, molds, wear-resistant spare parts, air compressors and basic maintenance tools. No extra payment is required, supporting immediate operation and daily loss replacement.
Q: Is long-term original spare parts supply available?
A: We maintain sufficient stock of core original parts for all models, including servo motors, feeding rollers, bending molds, sensors and electrical modules. Customers can purchase factory-priced original parts at any time after purchase to ensure long-term stable equipment operation with 100% compatibility.
Q: What international trade terms can be adopted?
A: We support multiple international trade terms including EXW, FOB, CIF and DDP. Flexible settlement and logistics modes adapt to global export orders and different customer cooperation habits.
