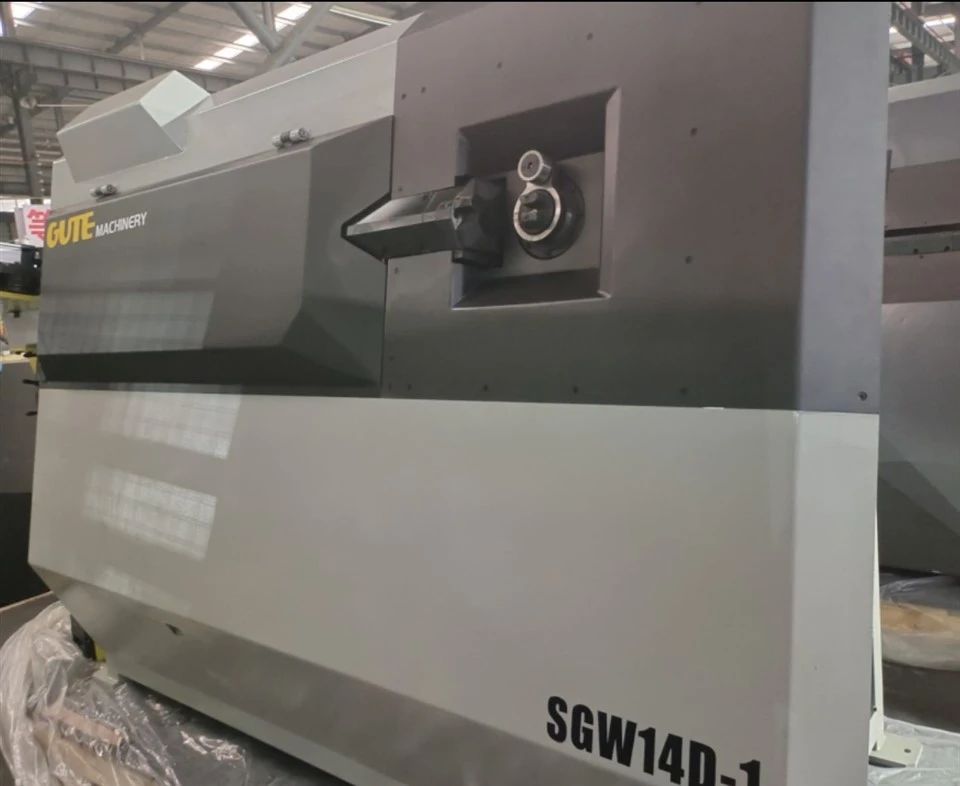

Products Description
This GUTE model processes 5mm to 14mm rebar. It performs the straightening, bending, and cutting in one continuous pass. The interface is practical-after a short walkthrough, operators can usually manage the daily production without issues.
Specifications
|
|
TENSILE STRENGTH |
Kg/mm2 45 |
Kg/mm2 65 |
|
|
SINGLE WIRE BENDING |
5-14mm |
5-13 mm |
|
|
DOUBLE WIRE BENDING |
5-10 mm |
5-10 mm |
|
|
OPERATION |
Automatic wire feeding system(CNC) |
|
|
|
MAX. BENDING ANGLE |
180° |
|
|
|
MAX. LENGTH OF STIRRUP SIDE |
900 mm |
|
|
|
MIN. LENGTH OF STIRRUP SIDE |
90 mm |
|
|
|
MAX. BENDING SPEED |
1050°/sec |
|
|
|
MAX. TRACTION SPEED |
75-100 m/min |
|
|
|
BENDING DIRECTION |
Bi-direction |
|
|
|
TRACTION SERVICE MOTOR POWER |
22KW |
|
|
|
BENDING SERVICE MOTOR POWER |
9.5KW |
|
|
|
CUTTING MOTOR POWER |
4 KW |
|
|
|
TOTAL POWER |
45KW |
|
|
|
AERAGE ELECTRIC CONSUMPTION |
5 KW/H |
|
|
|
L×W×H |
3800×1330×2060 mm |
|
|
|
WEIGHT |
3.6T |
|

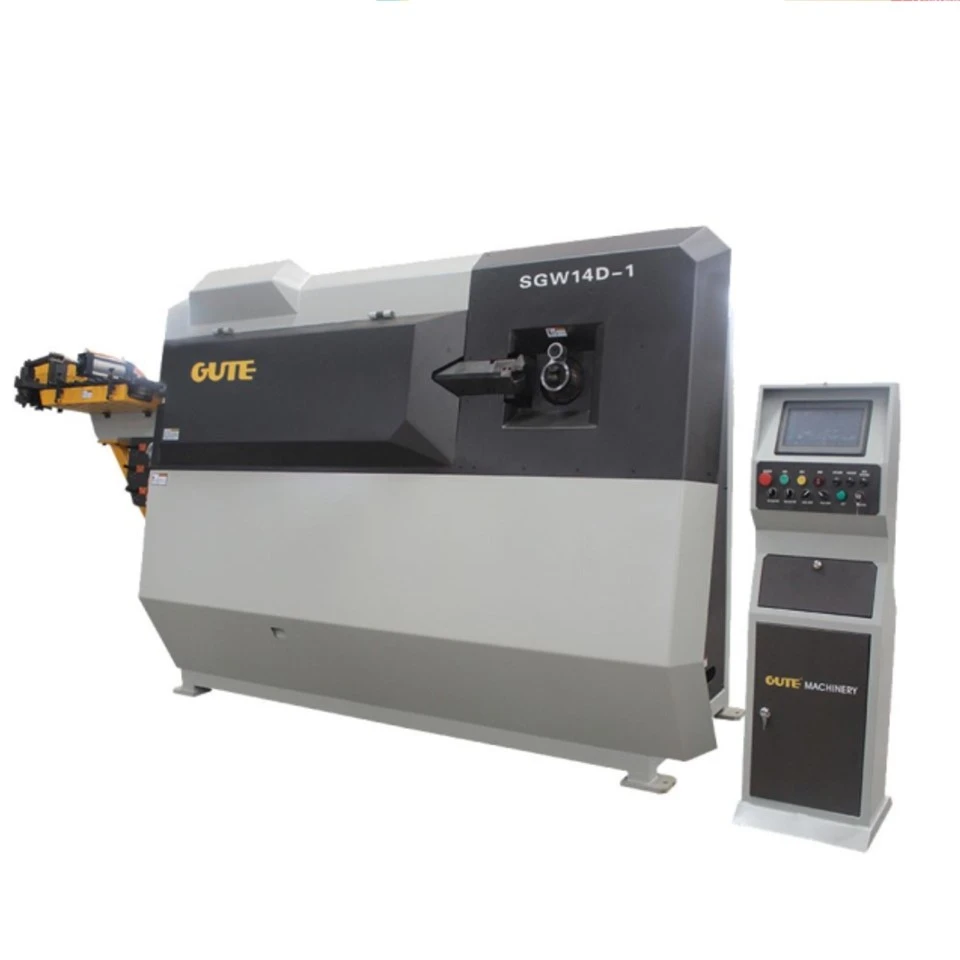

What Makes SGW14D-1 a Smart Investment?
•Steady Output: We've put this 6-14mm automatic stirrup bender machine through standard production cycles. It maintains a rate of roughly 1,600 stirrups over four hours. Whether running single-strand or dual-strand, the servo feed remains stable.
•Reliable Components: Internally, it uses Schneider and Chint electrics, Airtac pneumatics, and Japanese IKO bearings. The straightening wheels are alloy steel. These are common parts that we know will last through regular wear and tear.
•Practical Construction: The sheet metal housing is substantial, and the inspection door is 5mm thick. It holds up to the routine bumps that happen when moving material around the shop floor.
Applications
In precast plants and bridge construction sites, the 6-14mm automatic stirrup bender machine is a standard piece of equipment. It covers the basics-stirrups, horseshoes, and hoops-but also handles long straight bars and larger radius bends without issue.
Products Details
COMPONENT PARTS

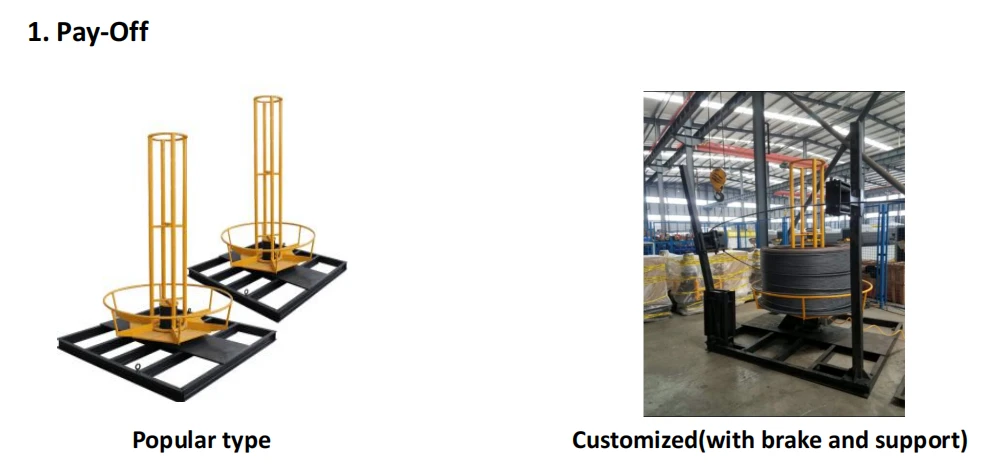

●Each machine is equipped with 2 pay-offs.
●Each pay-off has a maximum carrying capacity of 2,500 kg.
●The pay-off is easy to disassemble and transport.
●The pay-off can be customized with a brake system.

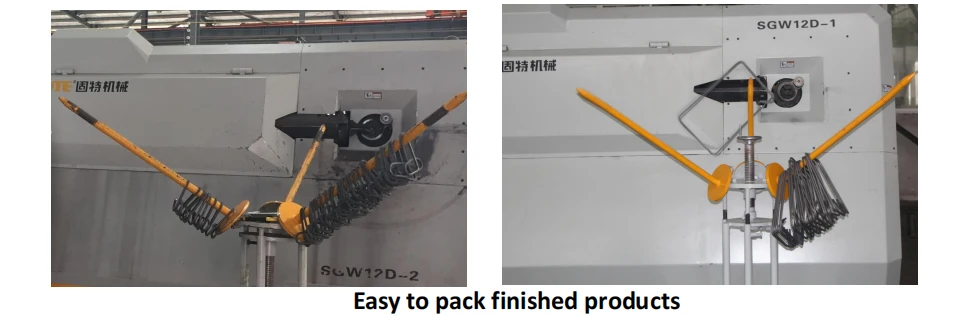

Automatic collector
●Automatic collection of finished stirrups.
●Users can preset the quantity of collected products. The finished products are easy to pack.

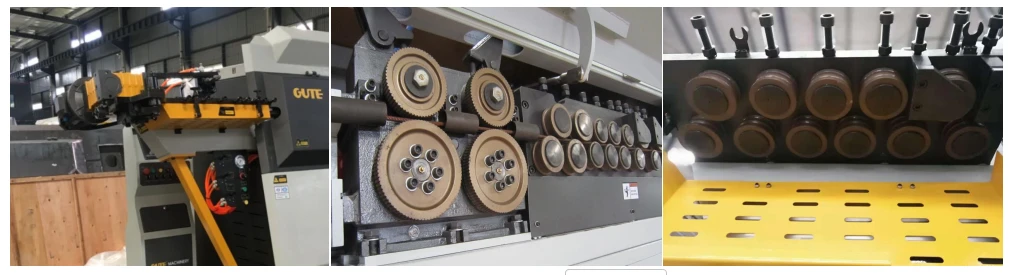

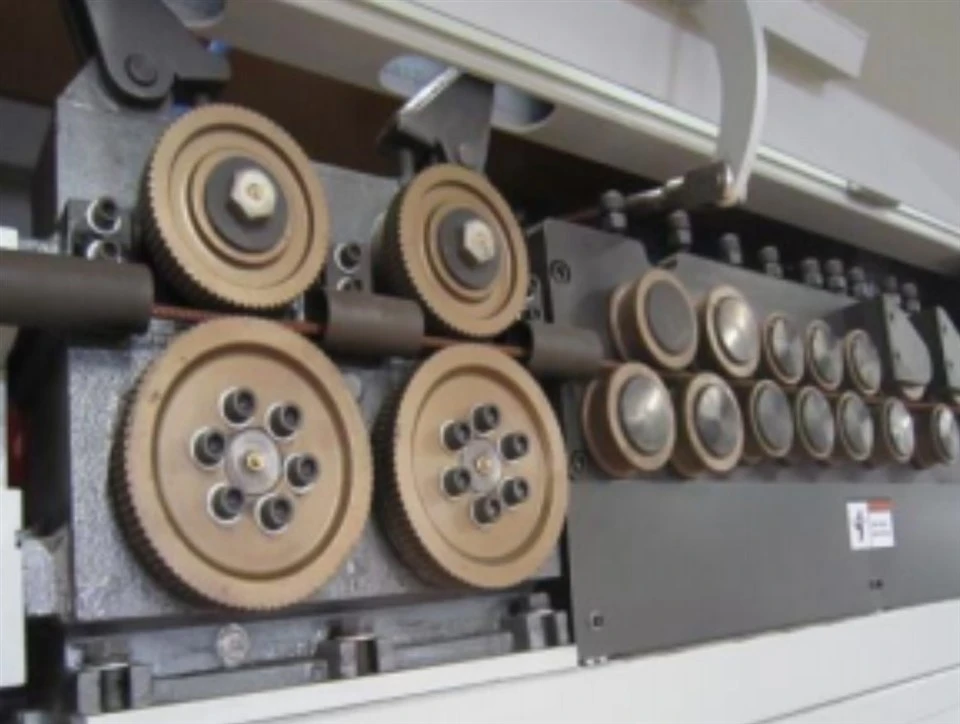

Straightening structure
Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impactful resistance.
Preset wheel plate: Constructed entirely from 30mm-thick steel plate, it boasts high strength, strong resistance to impact loads, and long-term durability.

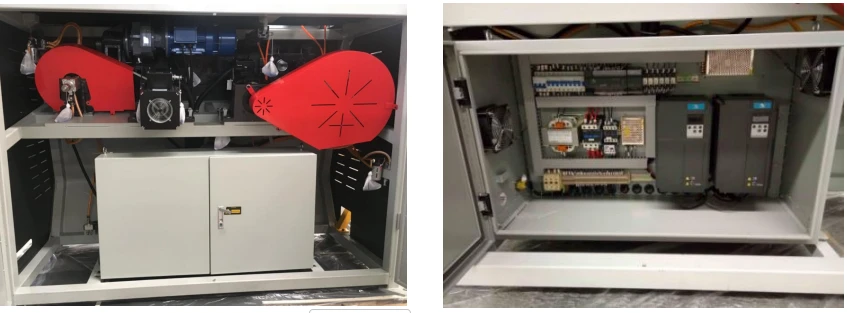

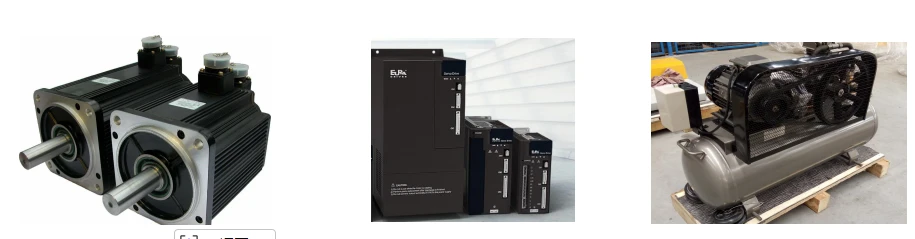

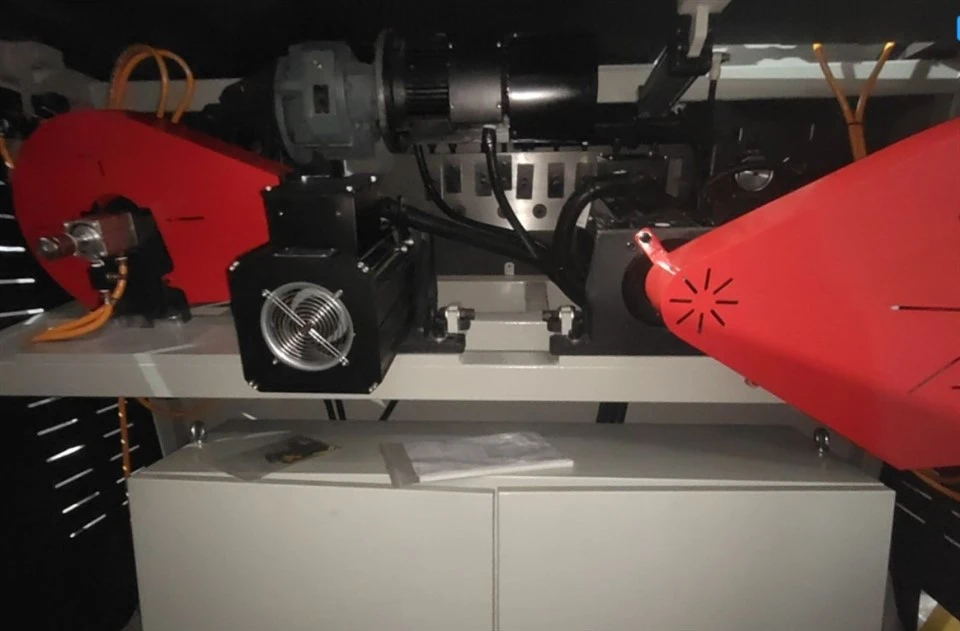

Electrical cabinet
Equipped with a 16 kW high-power servo motor to ensure smooth traction operation.

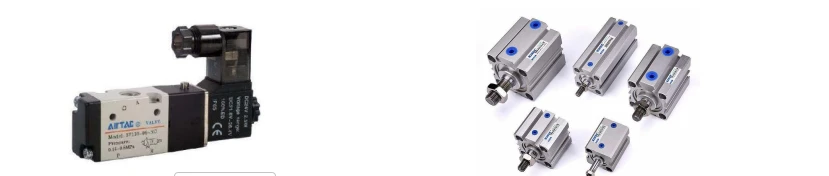

Pneumatic components are from Airtac, a renowned Taiwanese brand, which ensures long service life.
The split thickened blade design has a thickness of up to 40 mm and is durable for repeated use.
Multi-piece blades ensure double the service life compared with conventional one-piece blades.

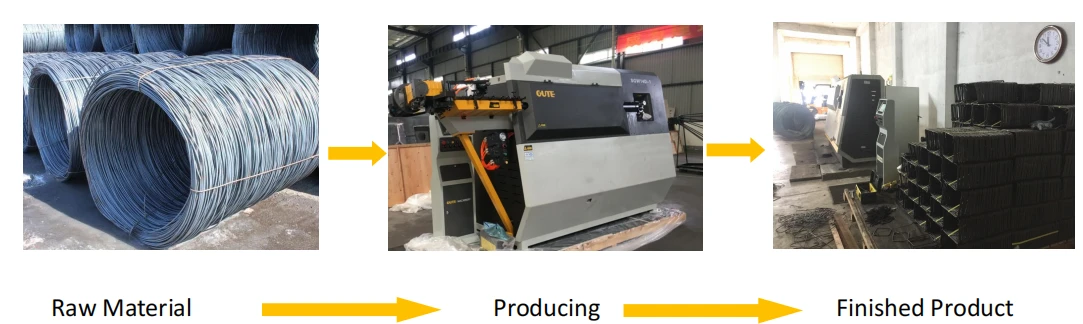

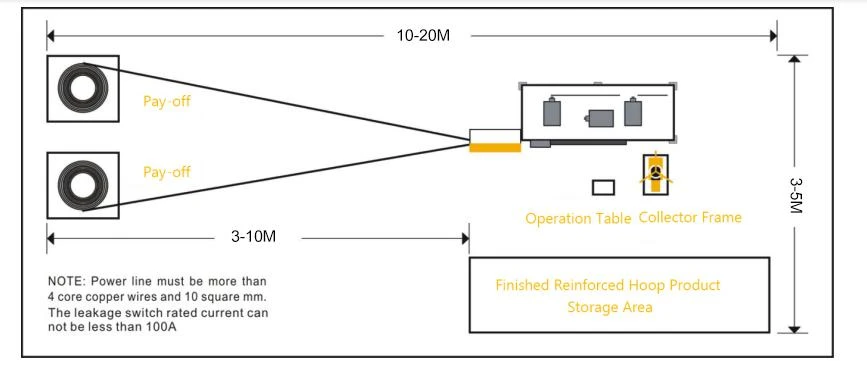

Site layout
Compliance & Testing
| Quality Assurance | Status |
| Video Inspection | Provided |
| Machinery Test Report | Provided |
| CE Certified | Yes |
| ISO Manufacturing Compliance | Yes |
Packaging & Shipping
| Item | Info |
| Package Type | Single item, export wooden case or steel frame |
| Shipping Options | FOB/CIF/DDP available (global ports) |
After-Sales & Customization
We maintain ample stocks of spare parts in North America, Europe, and Asia.Setup assistance is available via video call, and we can arrange third-party on-site service if required. We also offer OEM branding and can adjust settings for specific steel grades upon request.
