Fully Automatic Bridge Box Girder Rebar Processing Line

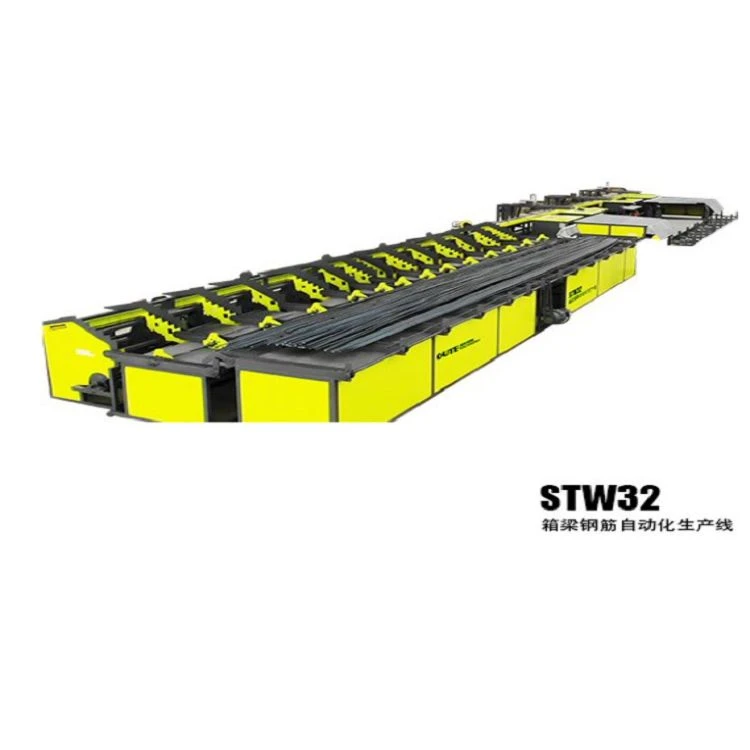

The STW32 production line handles batch fabrication of U-bars and cover bars for bridge box girders and T-beams. It combines rebar unbundling, feeding, counting, cutting and bending on one single line, reducing on-site manual work.

1. Automated material arrangement. Onboard unbundling, feeding and counting modules replace manual sorting, arranging raw rebars in order before processing.
2. Adjustable cutting and continuous feeding. The line supports height-adjustable cutting and steady material supply to sustain continuous batch work.
3. Full-process four-head bending. Four horizontal bending units complete shaping, alignment, measuring, unloading and storage for large U-bars and top plates with no manual transition.
4. Accurate robotic material grabbing. Three-axis grippers with pneumatic fingers hold different rebar sizes firmly, keeping uniform positioning in repeated processing.
5. One-pass special shaping. It forms long-arc and oversize rebars in a single cycle to fit custom bridge beam structures.
6. Unified PLC control. All functional modules run synchronously under central programming, enabling single-person operation for the whole line.
7. Fast on-site switching. Operators adjust few parts to process different girder sizes and rebar shapes, matching variable site production needs.

This Fully Automatic Bridge Box Girder Rebar Processing Line works for highway and railway bridge construction, box girder and T-beam precast production, and large infrastructure sites requiring standardized mass rebar machining.
